Home > Products > Drinking Water 1GPM CE RoHS Stainless Steel UV-S01

Drinking Water 1GPM CE RoHS Stainless Steel UV-S01

Click on the image to view the original image

Product：	views：3Drinking Water 1GPM CE RoHS Stainless Steel UV-S01
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-09-03 08:46

Product Details

Product Information

Tepro-Uv Light Sterilizer, Submersible Uv Lamp Manufacturer | Products

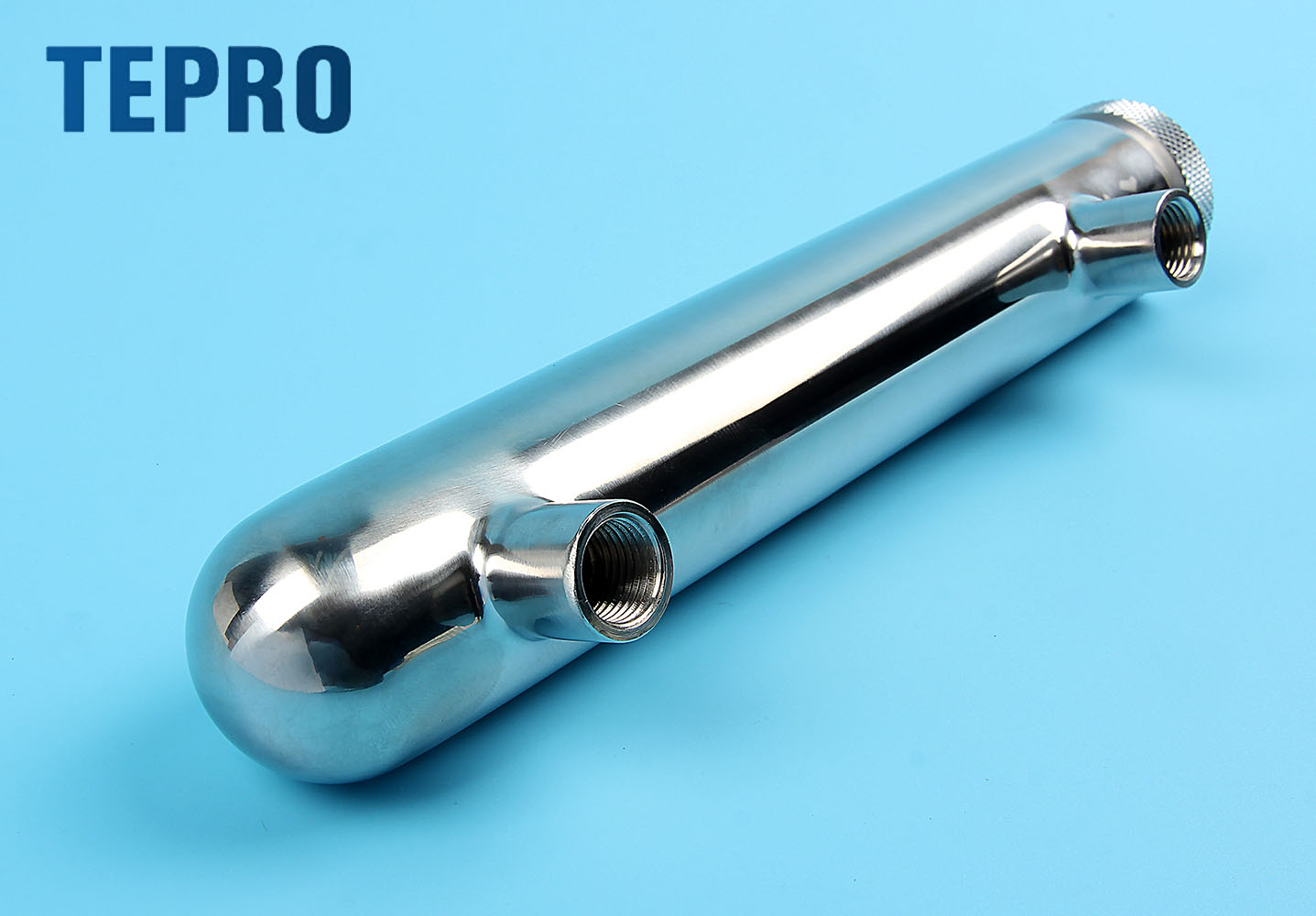

**UV-S01 Close-Open Model Szie2705171mm**

UV lamp 10watts,4pins UV lamp, 8000hours. Flow rate 1GPM, Voltage 110/220V 50/60Hz.

Chamber 270*51*71mm, Max wroking pressure 8bar,116psi.

In/Outlet size 1/4" female or customized

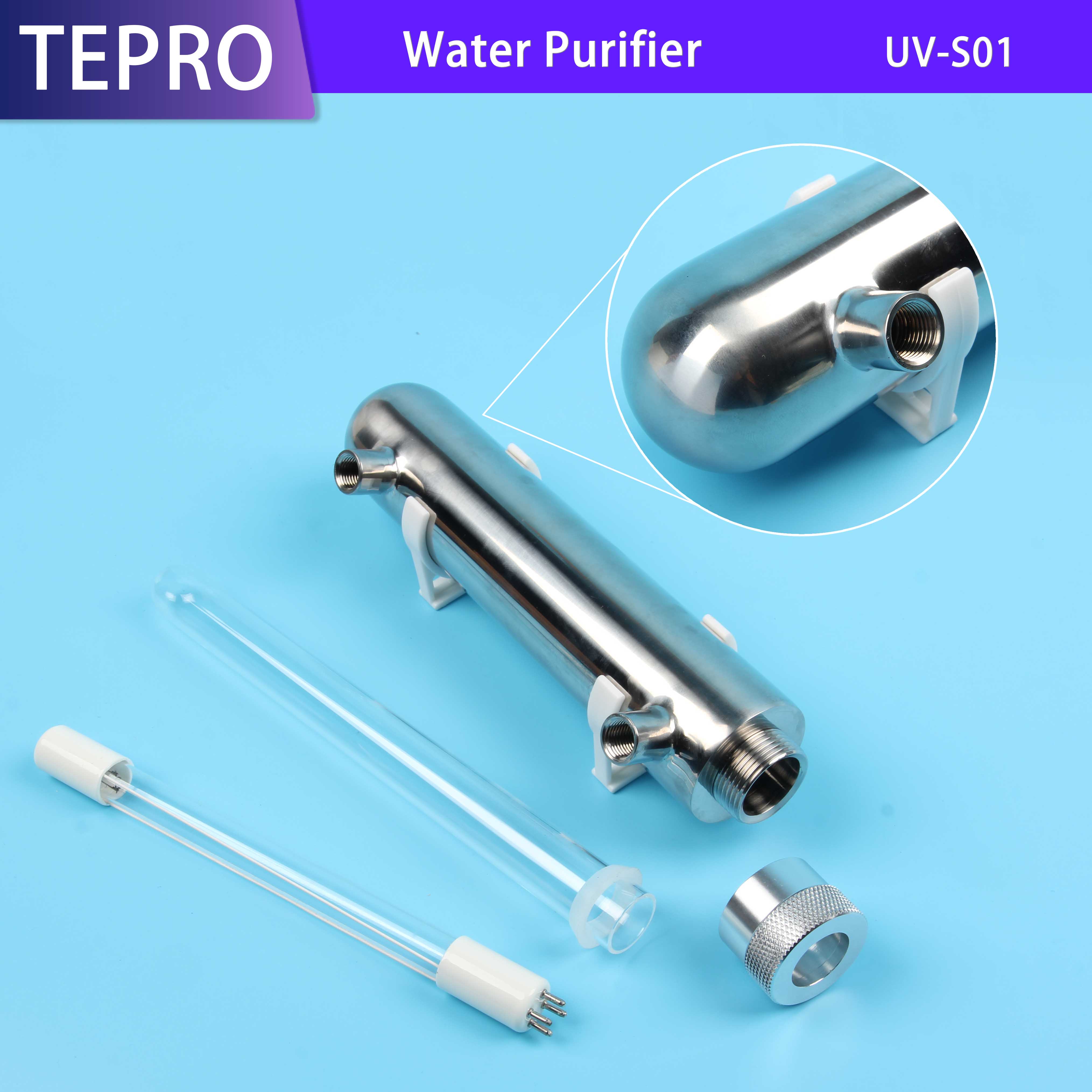

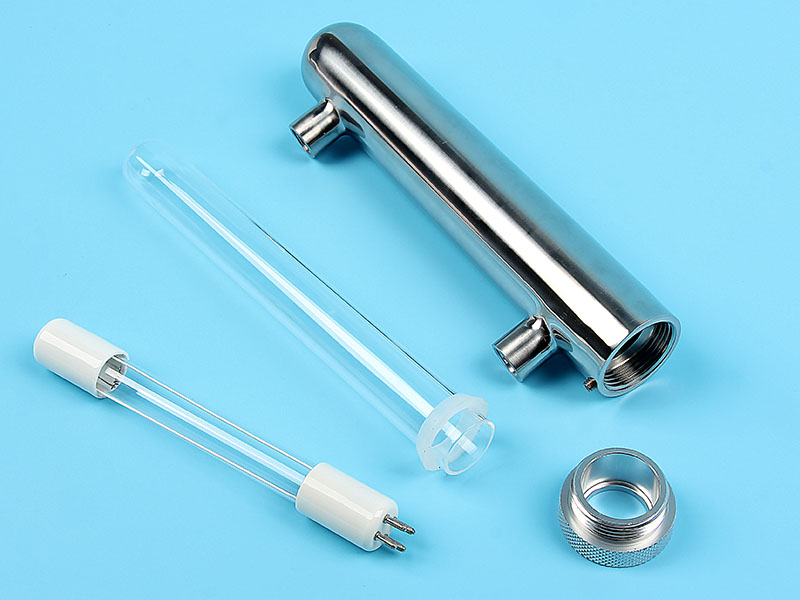

Accessories quartz tube,UV lamp, eletric ballast,plastic support,o-ring.

There is a 12months warranty for our export products from the date of the shipment. 2-7days for the samples order. 30-40days for mass order depend on quantity.

Product Parameters

MODEL	RATE FLOW		POWER	MNPT THREAD	SHELL SIZE
/	/	/	/	/	L	D	H	/	/
/	m³/h	GPM	W	in	mm	mm	mm	/	/
UV-D08	0.20	0.8	8W	1/4"	220	38	55	/	/
UV-S01	0.30	1	10W	1/4"	270	51	71	/	/
UV-S02	0.45	2	14W	1/2"	350	63	88	/	/
UV-S03	0.68	3	17W	1/2"	360	63	88	/	/
UV-S06	1.36	6	21W	3/4"	490	63	88	/	/
UV-S08	1.81	8	28W	3/4"	600	63	88	/	/
UV-S12	2.71	12	40W	3/4"	906	63	88	/	/

MODEL	RATE FLOW		POWER	QUANTITY OF LAMP	MNPT THREAD OR FLANGE		SHELL SIZE
/	/	/	Total power	Number	screw thread flange		Long	Wide	High
/	M³/h	GPM	W	/	/	/	mm	mm	mm
UV-5.5T40	5.5	24	80	2	1 1/4"	DN32	906	102	212
UV-8T40	8.0	35	120	3	1 1/2"	DN40	906	159	360
UV-12T40	12	53	160	4	2"	DN50	906	159	360
UV-15T40	15	66	200	5	2 1/2"	DN65	906	219	420
UV-12T80	12	53	160	2	2"	DN50	906	102	212
UV-20T80	20	88	240	3	2 1/2"	DN65	906	159	360
UV-25T80	25	110	320	4	2 1/2"	DN65	906	159	360
UV-15T120	15	66	240	2	2 1/2"	DN65	1220	102	270
UV-25T120	25	110	360	3	3"	DN80	1220	159	360
UV-45T120	45	198	600	5	3"	DN80	1220	219	420
UV-25T150	25	110	300	2	3"	DN80	1625	102	270
UV-35T150	35	155	450	3	3"	DN80	1625	159	360
UV-50T150	50	220	600	4	4"	DN100	1625	159	360
UV-60T150	60	260	750	5	4"	DN100	1625	219	420
UV-80T150	80	352	900	6	4"	DN100	1625	219	420
UV-100T150	100	440	1050	7	4"	DN100	1625	270	450
UV-125T150	125	550	1350	9	6"	DN150	1625	273	480
UV-150T150	150	660	1650	11	6"	DN150	1625	323	530

Product Details

Tepro-Bulk Portable Uv Lamp Manufacturer, Ultraviolet Light To Kill Germs | Tepro-1

part.1

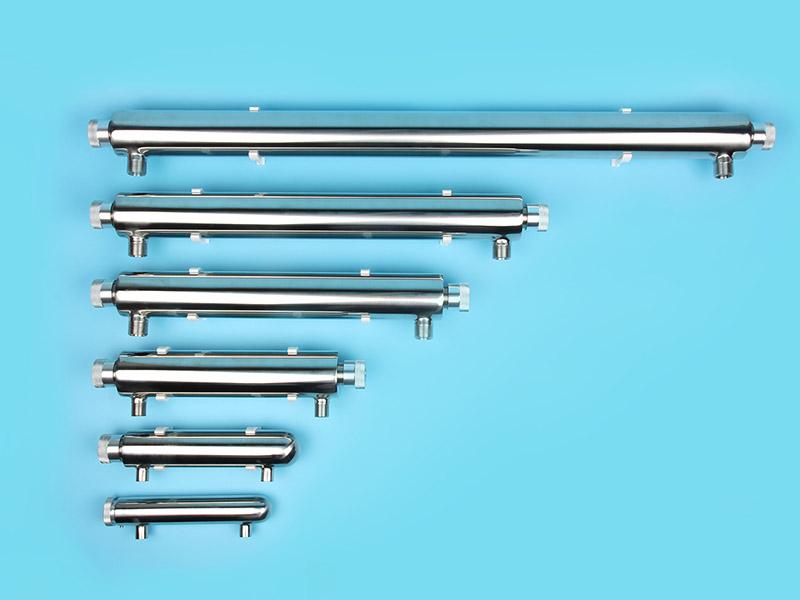

Series of large production are large flow sterilizers with multiple lamps.

Tepro-Bulk Portable Uv Lamp Manufacturer, Ultraviolet Light To Kill Germs | Tepro-2

part.2

The standard layout of electric cabinet is : power supply 120/230VAC, running indicator light, audible-visual alarm light(accumulated timer and light-density detection device are optional), ballast with CE, Rohs, UL certification.
