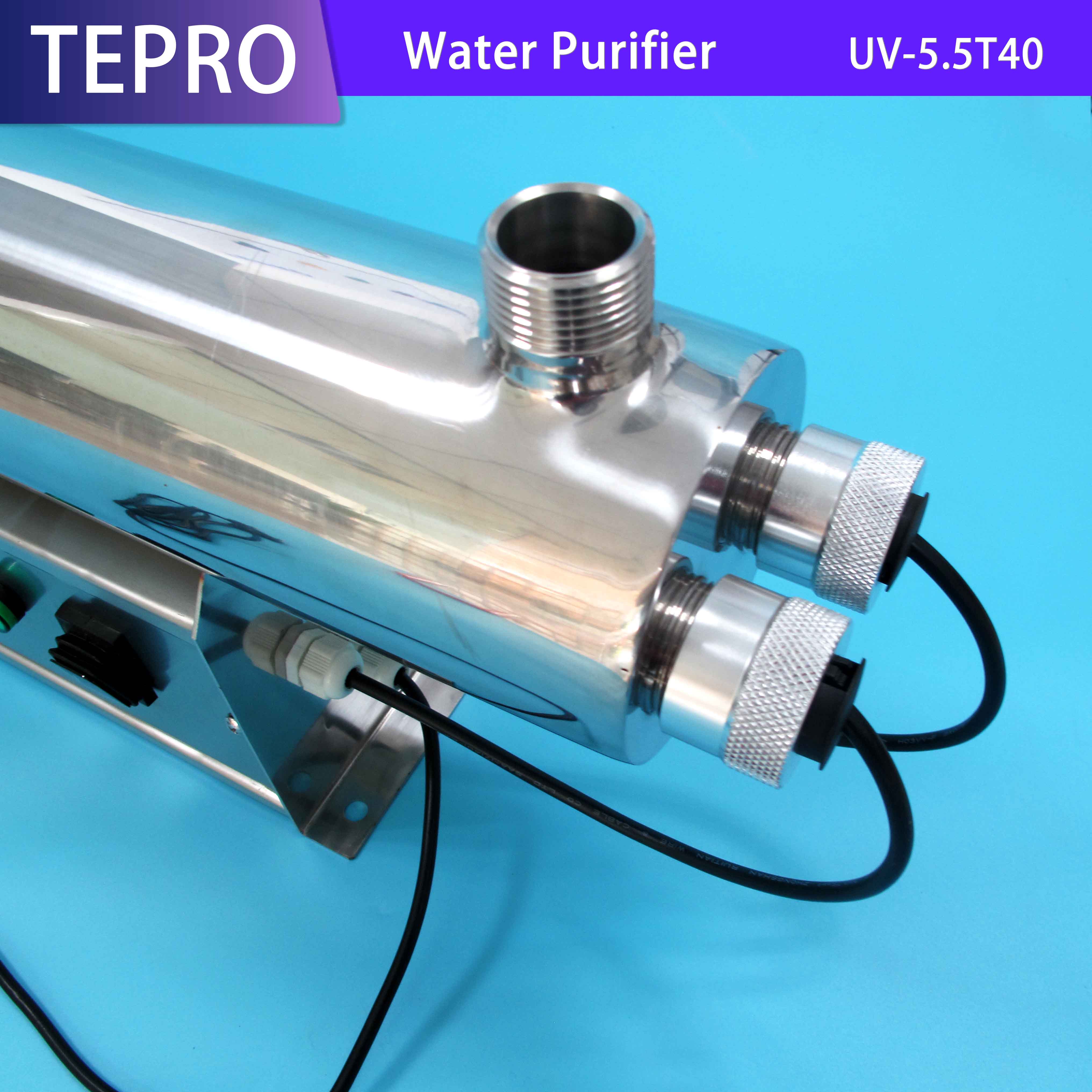

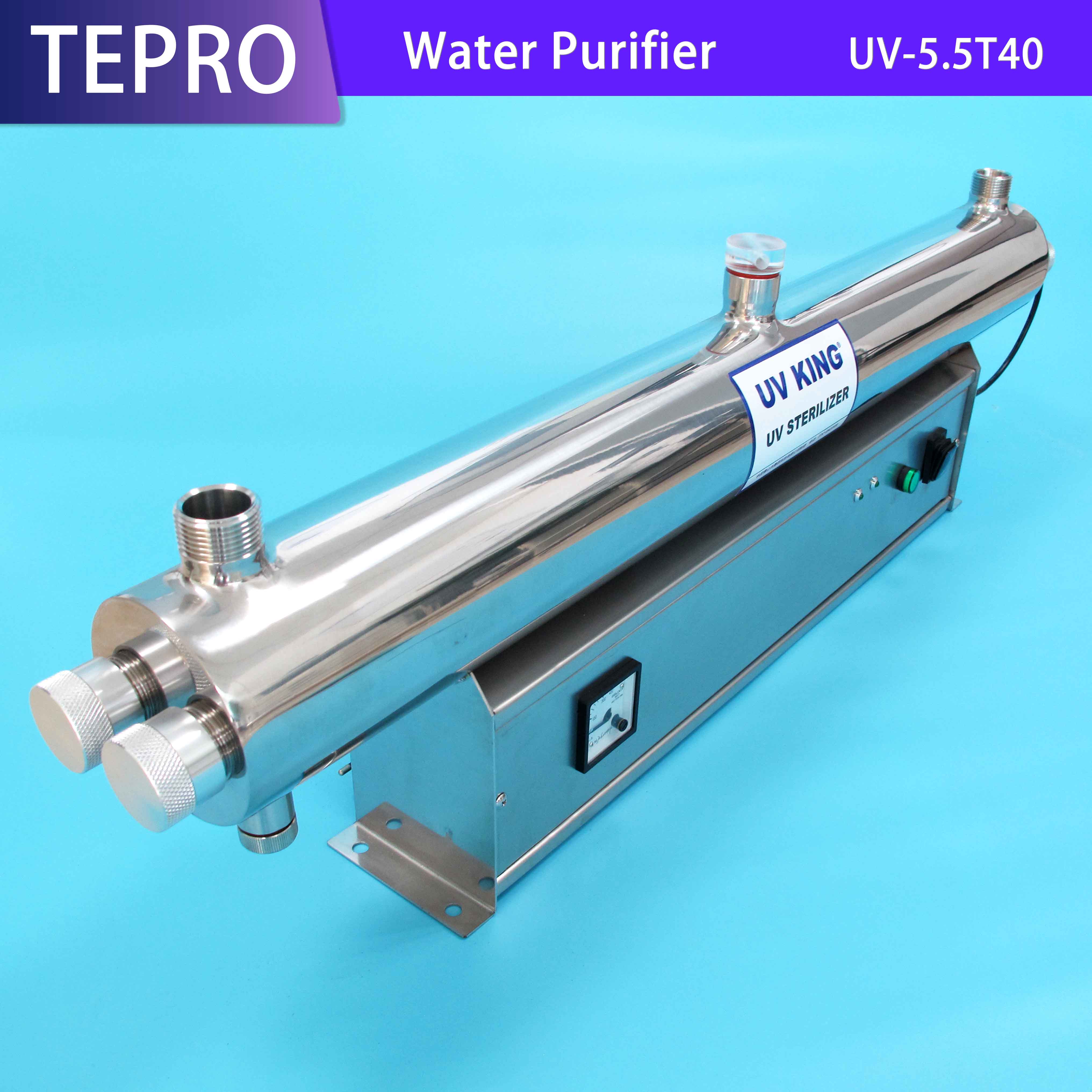

Water Disinfection Ultraviolet UV Sterilizer 24GPM 5.5M3/h UV-5.5T40

Click on the image to view the original image

Product：	views：4Water Disinfection Ultraviolet UV Sterilizer 24GPM 5.5M3/h UV-5.5T40
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-09-03 08:46

Product Details

Product Information

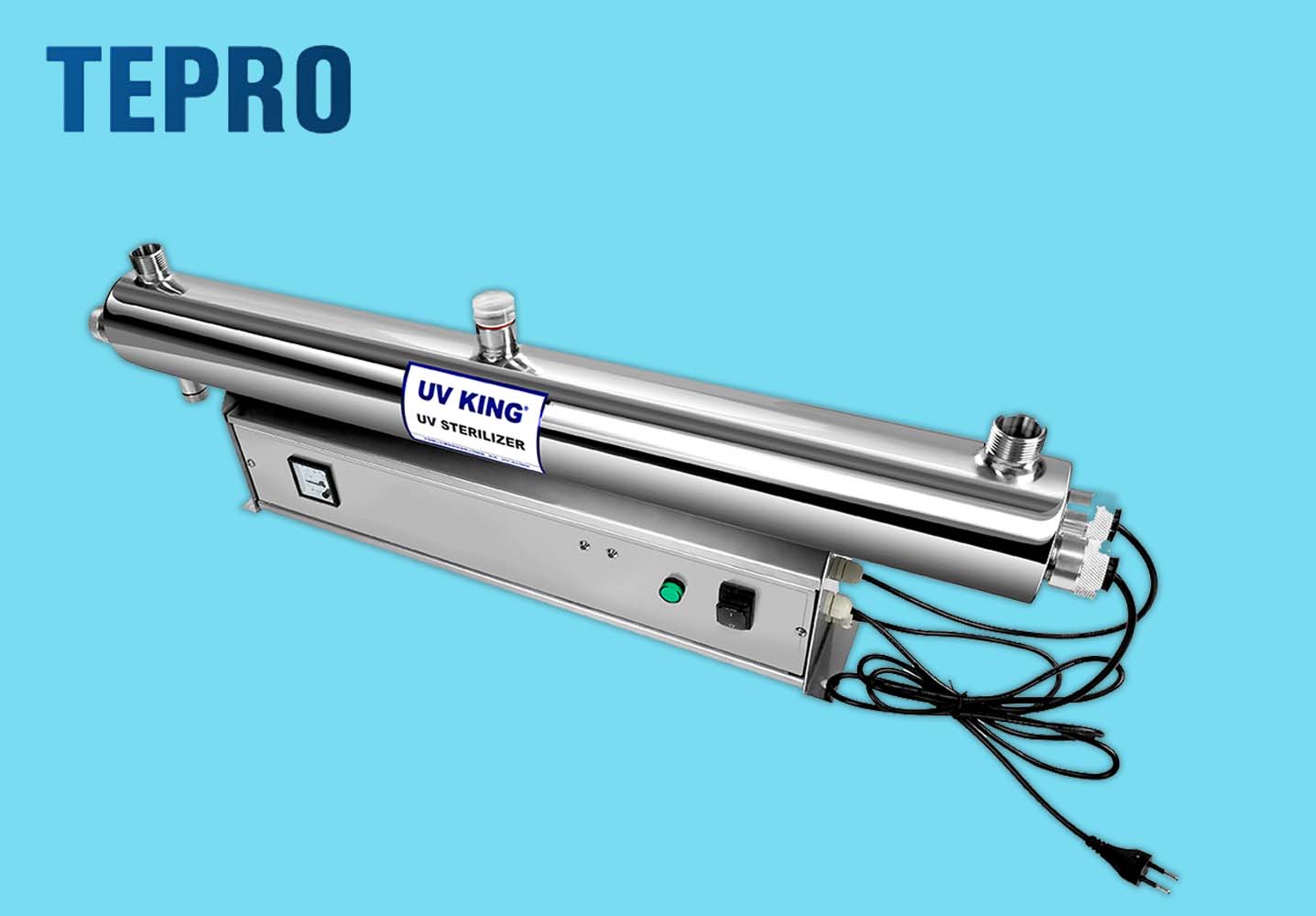

Tepro-Uv Light Water Purifier, Uvc Ultraviolet Price List | Tepro

UV-5.5T40 Standard Carton 110V/220V Fish Farming

What does a UV sterilizer do?

A UV sterilizer is used to control infections by stopping the spread of microorganisms from one fish/coral/invertebrate to another through the water. It is also used in pond applications to control free-floating algae. When operated correctly, free-floating microorganisms will be killed by the UV light. Note that the organisms must be in the water that flows to the UV sterilizer. The UV light has no residual effect and will not kill organisms attached to fish (e.g., adult stage of ich) or rocks (e.g., algae).

Product Parameters

MODEL	RATE FLOW		POWER	MNPT THREAD	SHELL SIZE
/	/	/	/	/	L	D	H	/	/
/	m³/h	GPM	W	in	mm	mm	mm	/	/
UV-D08	0.20	0.8	8W	1/4"	220	38	55	/	/
UV-S01	0.30	1	10W	1/4"	270	51	71	/	/
UV-S02	0.45	2	14W	1/2"	350	63	88	/	/
UV-S03	0.68	3	17W	1/2"	360	63	88	/	/
UV-S06	1.36	6	21W	3/4"	490	63	88	/	/
UV-S08	1.81	8	28W	3/4"	600	63	88	/	/
UV-S12	2.71	12	40W	3/4"	906	63	88	/	/

MODEL	RATE FLOW		POWER	QUANTITY OF LAMP	MNPT THREAD OR FLANGE		SHELL SIZE
/	/	/	Total power	Number	screw thread flange		Long	Wide	High
/	M³/h	GPM	W	/	/	/	mm	mm	mm
UV-5.5T40	5.5	24	80	2	1 1/4"	DN32	906	102	212
UV-8T40	8.0	35	120	3	1 1/2"	DN40	906	159	360
UV-12T40	12	53	160	4	2"	DN50	906	159	360
UV-15T40	15	66	200	5	2 1/2"	DN65	906	219	420
UV-12T80	12	53	160	2	2"	DN50	906	102	212
UV-20T80	20	88	240	3	2 1/2"	DN65	906	159	360
UV-25T80	25	110	320	4	2 1/2"	DN65	906	159	360
UV-15T120	15	66	240	2	2 1/2"	DN65	1220	102	270
UV-25T120	25	110	360	3	3"	DN80	1220	159	360
UV-45T120	45	198	600	5	3"	DN80	1220	219	420
UV-25T150	25	110	300	2	3"	DN80	1625	102	270
UV-35T150	35	155	450	3	3"	DN80	1625	159	360
UV-50T150	50	220	600	4	4"	DN100	1625	159	360
UV-60T150	60	260	750	5	4"	DN100	1625	219	420
UV-80T150	80	352	900	6	4"	DN100	1625	219	420
UV-100T150	100	440	1050	7	4"	DN100	1625	270	450
UV-125T150	125	550	1350	9	6"	DN150	1625	273	480
UV-150T150	150	660	1650	11	6"	DN150	1625	323	530

Product Details

Tepro-Uv Light Water Purifier, Uvc Ultraviolet Price List | Tepro-1

part.1

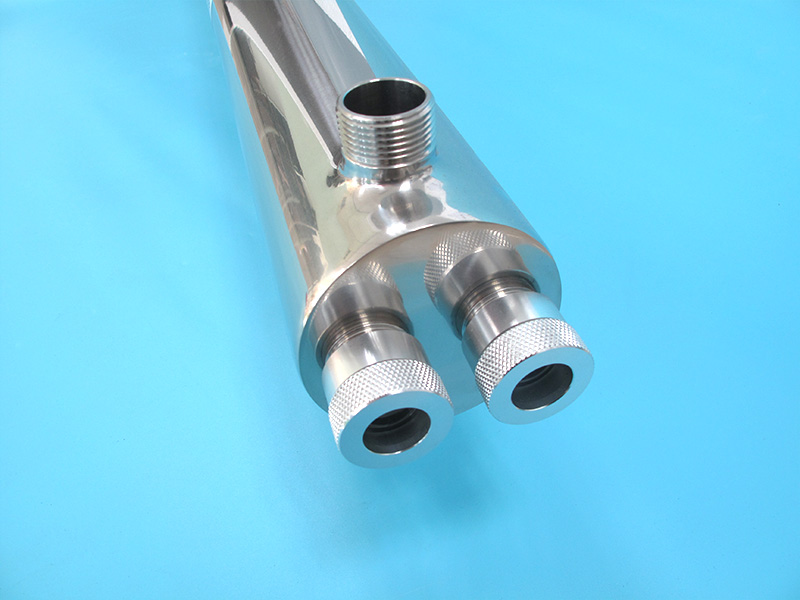

Series of large production are large flow sterilizers with multiple lamps.

Tepro-Uv Light Water Purifier, Uvc Ultraviolet Price List | Tepro-2

part.2

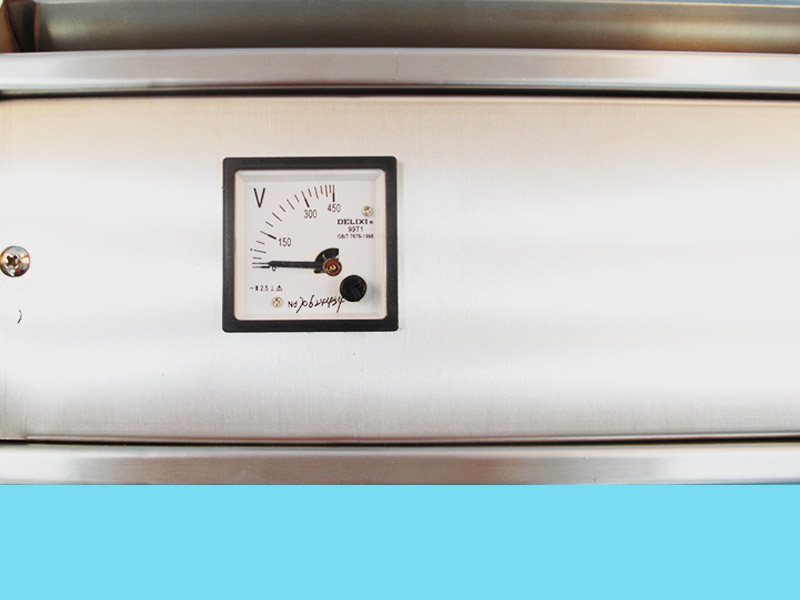

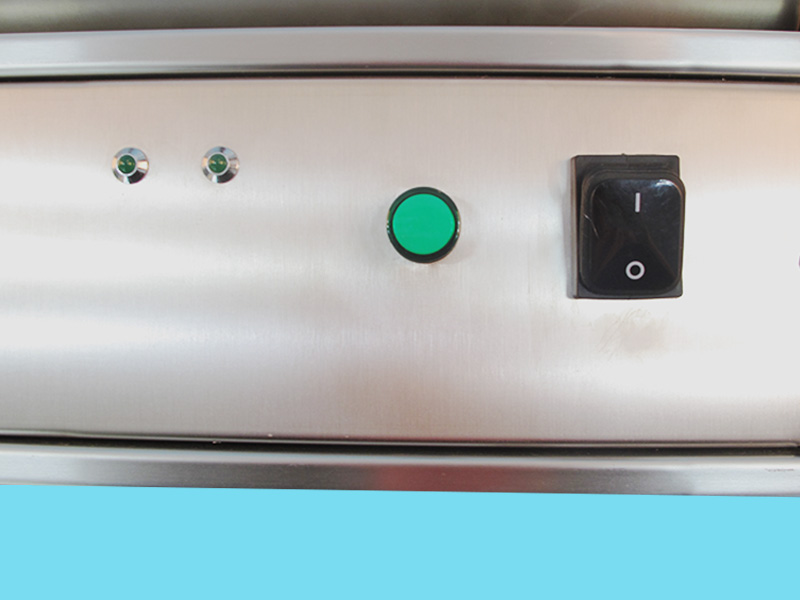

The standard layout of electric cabinet is : power supply 120/230VAC, running indicator light, audible-visual alarm light(accumulated timer and light-density detection device are optional), ballast with CE, Rohs, UL certification.
