Stage Beam Spot Wash 380W Moving Head Light

Click on the image to view the original image

Product：	views：21Stage Beam Spot Wash 380W Moving Head Light
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-09-03 08:46

Product Details

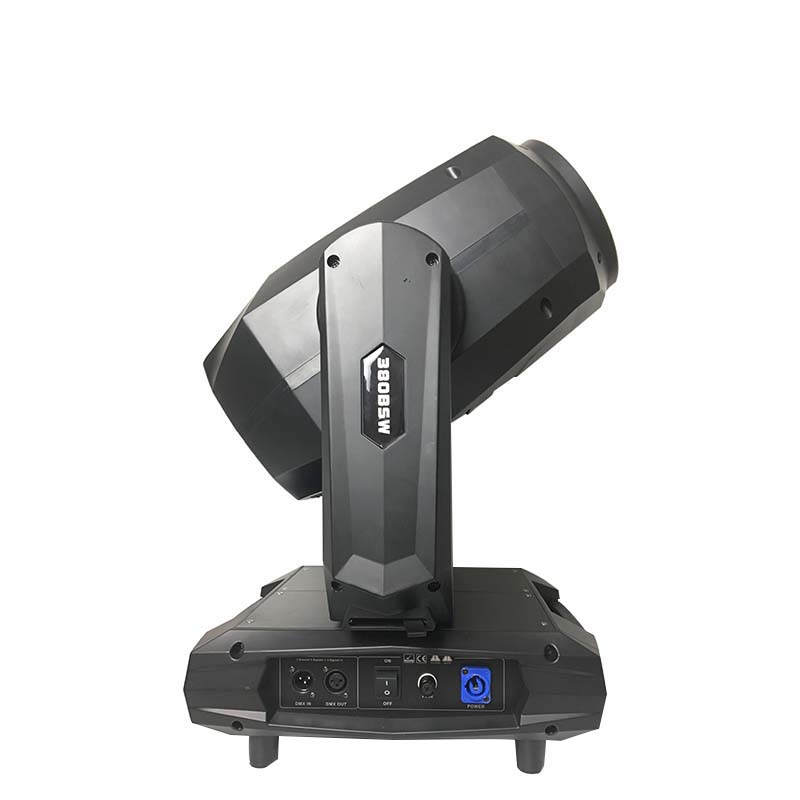

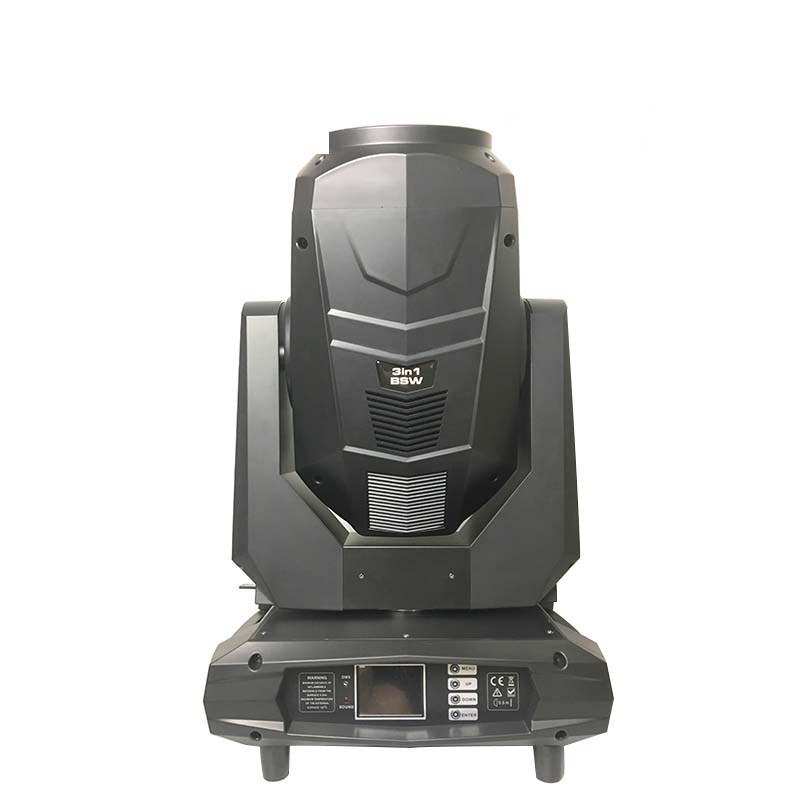

380W Beam Spot Wash 3 in 1 Moving Head Light

TRI-380BSW is a power 380W moving beam light fitted with multiple functions in one unit including beam, spot and wash. It’s a very bright and super fast with a sharp parallel beam that cuts through the air with ease. Offering motorized focus, with a narrow 5-40 degree(spot application), and 3-10 degree(beam application), make TR-380BSW flexible for short or long-throw situations. More incredible performance is its rotating 8-way linear or 16-way circular prisms to create wide reaching effects across any stage and larger venues.

PARAMETER

Voltage	110W~240V/50-60Hz
Ballast	Electronic Ballast
Lamp	Taiwan YODN U18/OSRAM HRI 371 lamp
Average Lifespan	2000Hrs
Power consumption	500W
Lens	high precision optical lens
Color wheel	13 dichroic filters + white
Rotating Gobo Wheel	with 7 bidirectional and indexable gobos (outside diameter:15,4 mm, image diameter: 13 mm)
Static Gobo wheel	with 11 fixed gobos, at variable rotation
Prism	25and16 facet circular prism rotating in both directions at different speeds
Zoom	parallel beam angel 2.5-62 change
Wash effect	adjustable Wash effects angle
Focus	linear adjustment
Dimmer	0-100% linear adjustment
Strobe	Double lens strobe (0.5-9 times/ second)
Pan/Tilt	X axis 540° Y axis 270°automatically accurate positioning
Fixation option	Pan/Tilt-lock mechanism
Control mode	Standard DMX512, Automatic and Master/ slave mode
Channel	16 CHs / 24 CHs
Controller	can open the lamp and reset, including delaying function
Weight	22kG
Dimension	535063CM

DETAIL

FEATURE

◪ Complete control board with DMX in/out.
◪ Newest inductor with shielding function,show more smooth dimmer.
◪ Electric motor driver has stronger power to moving winch
◪ More thichness motor for Kinetic light ,will move more quickly and facile.
◪ Lift cable smaller and firm from Germany.
◪ Fall protection, Newest and safe design which is add electromagnetic valve.
◪ Can be customized.

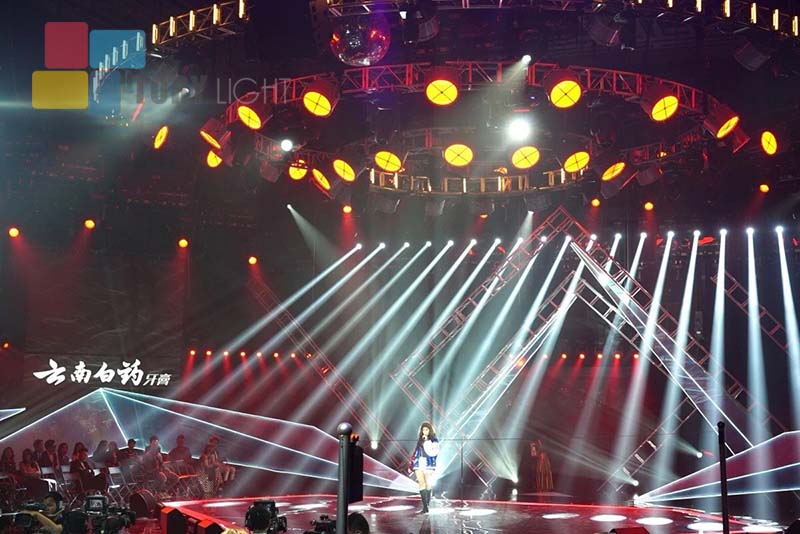

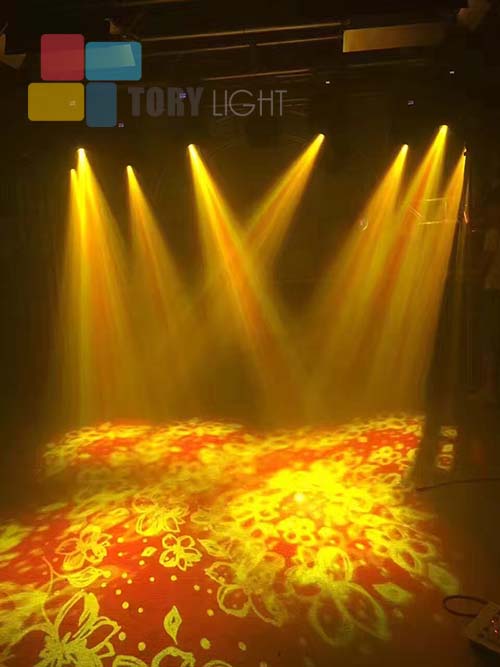

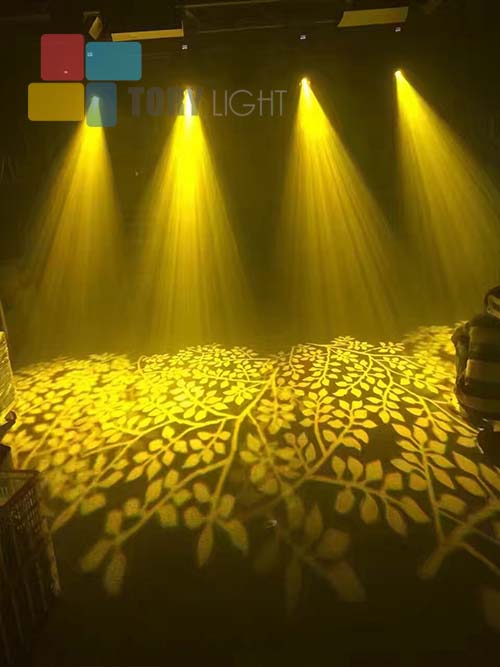

APPLICATION
