230W 7R Sharpy Beam Moving Head Light
Click on the image to view the original image
Product: views:21230W 7R Sharpy Beam Moving Head Light
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:46
  Negotiated
Product Details

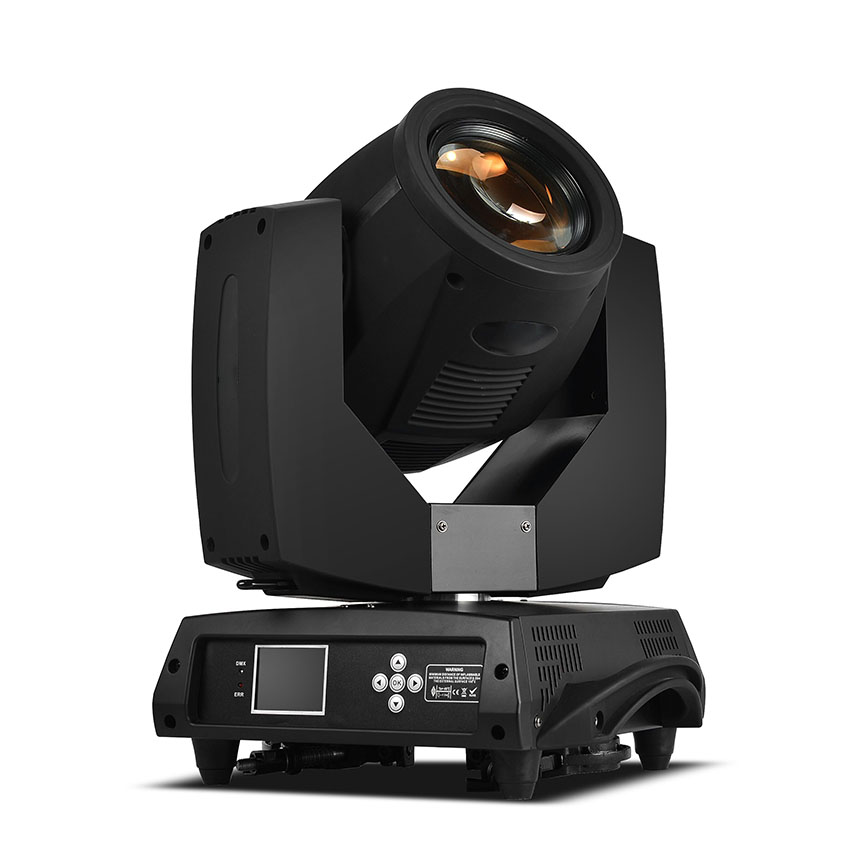

230W 7R Sharpy Beam Moving Head Light
TR-230B is a high power 230W moving head beam with an unprecedented brightness usually achievable only with far greater wattages. Weighting just 17kg, it offers 14 rich colors and 17 patterns, allowing you to change the shape of the beam and create an array of spectacular mid-air effects. With its light weight and modest footprint, this 230W Sharpy beam is versatile to be fitted anywhere-on trussed a live and TV events, stage, showroom or conference rooms.
PARAMETER


Voltage110W~240V/50-60Hz
BallastElectronic Ballast
Lamp230W Yodn/Philips/Osram
Average Lifespan2000Hrs
Beam angle0-3.8 degree
Lens3 films high precision optical lens
DisplayLCD touchable, can be turned 180°&record the using time
Color wheel14 dichroic filters + white
Static Gobo wheelwith 17 fixed gobos, at variable rotation
Prism8 or 16 facet circular prism rotating in both directions at different speeds
Focuslinear adjustment
Dimmer0-100% linear adjustment
StrobeDouble lens strobe (0.5-9 times/ second)
Pan/TiltX axis 540° Y axis 270°automatically accurate positioning
Fixation optionPan/Tilt-lock mechanism
Control modeStandard DMX512, Automatic and Master/ slave mode
Channel16 CHs / 20 CHs
Controllercan open the lamp and reset, including delaying function
Weight17kG
Dimension330*390*490mm


DETAIL


FEATURE

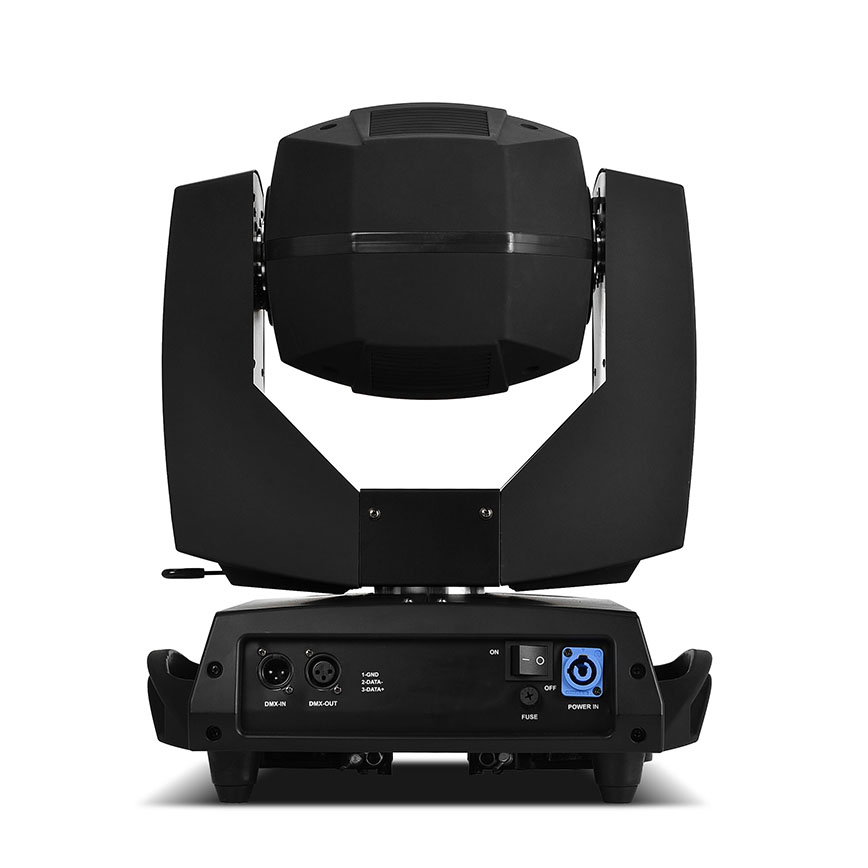

  • ◪   Complete control board with DMX in/out.

  • ◪   Newest inductor with shielding function,show more smooth dimmer.

  • ◪   Electric motor driver has stronger power to moving winch

  • ◪   More thichness motor for Kinetic light ,will move more quickly and facile.

  • ◪   Lift cable smaller and firm from Germany.

  • ◪   Fall protection, Newest and safe design which is add electromagnetic valve.

  • ◪   Can be customized.


APPLICATION
