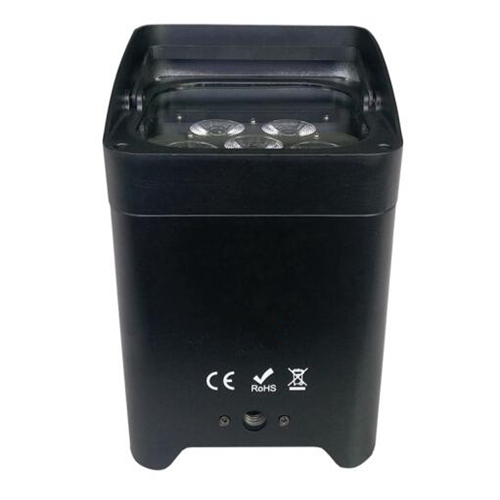

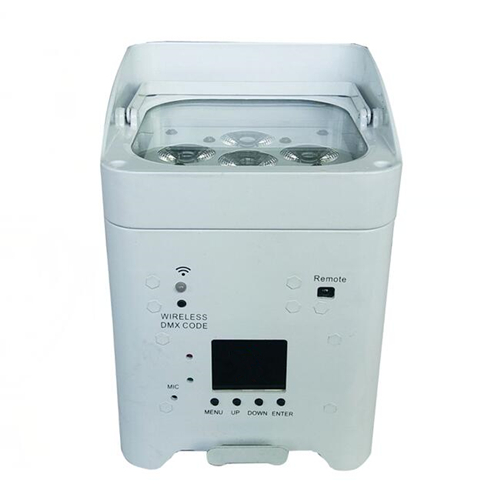

JTLite-BP05/06
6*18w RGBWAUv dj uplighting battery powered disco led par light
Battery working time:
Full Power: 5hrs, Auto-run: 12hrs, Single color: 24hrs
Light source: 6pc 18W RGBWAUV 6IN1 TianXin Leds
Power consumption: 120W
Power voltage: 110-220V 50/60HZ
Beam angle: 15/35°
Dimmer: 0-100%
DMX channel: 10/6Chs
Control modes: DMX, Wifi DMX ( cell phone APP), Master-slave, Auto-Run, Sound
Lithium Battery: 8800MHA
Display: LCD screen TFT material
Housing Color：White / black optional
LED Source: High power 6pc LED RGBWAUv 6 in 1 chips
Smart Phone Control: APP control, Android or IOS phone download "LEDHome"
Life Span: 6-10K hours
Control Channels: 6/10CHs
Power Consumption: 120W
Color: RGWBAUv and 16.7 million kinds of colors of color mix
Control Mode: DMX512/ Master + Slave/ auto/ sound mode/ APP wifi control
Automatic Mode: color change/ strobe/ dimmer/ gradual changing/ jump changing
Operation Manual: LCD discreen TFT material
Power socket: Power In Out/ Powercon In Out
XLR socket: 3PIN/5PIN IN Out
Protecting rate: IP20
Function Detail:
With built-in 2.4G Wireless DMX 512 Receiver (DA-WDMX-PCB)
Perfect Match up with 2.4G Wireless DMX 512 Transmitter (DA-WDMX-LCD)
Lux: 6500 @1m
OSwitching Power Supply
High Speed Electronic Strobe: 0-20/s
Electronic Linear Dimmer: 0-100%
3-Pin / 5-Pin DMX in and DMX out
Daisy Chain Power in and Power out
Package Detail
Net Weight: 2.5kgs
Product Dimmension: 175*175*235mm
Gross Weight: 3kgs each unit(4pcs/CTN)
Charging Flightcase: 10 in 1, 50kgs
Flightcase: 10 in 1 / 8 in 1/ 6 in 1
Flycase with charging base: OEM
