Home > Products > Dali Dimmable 1000w 1200w Led Flood Light Led Reflector IP66 for Soccer Fields
Dali Dimmable 1000w 1200w Led Flood Light Led Reflector IP66 for Soccer Fields
Click on the image to view the original image
Product: views:9Dali Dimmable 1000w 1200w Led Flood Light Led Reflector IP66 for Soccer Fields
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2020-12-23 14:32
  Negotiated
Product Details

10degree 25degree led spotlight 1000w height 25m led stadium flood light outdoor





Product Description

 1000W High Power LED Flood Light specifications:

1000W LED Floodlight Main Technical Parameters
Item No.: RB-FLL-1000W
Input Voltage: AC100-277V
Freqency Range: 50Hz~60Hz
Power Factor: >0.98
Power Efficiency: >95%
LED Power 1000W
Lamp Driver` Meanwell
ED Chip 5050 chip
LED Luminous Efficiency 150LM/W
System Consumption: 1050W
 Lamp Luminous Flux 15000LM
Viewing Angle: 10/25/60degree
Illuminance Uniformity: >0.6
Color Temperature Warm White 3000K~3500K
Pure White 4500K~5300K
Cool White 5300K~6000K
Color Rendering Index Ra>80
Light Distribution: LED points visible
LED Junction Temperature: ≤115ºC
Working Temperature: -40ºC~65ºC
IP Grade: IP66
Working Life-span: 50000 H
Power Line: 1.0 mm2 three line
Connect Wire Brown L
Blue N
Yellow / Green G
N.W.: (KG) 44.5kg
Product Dimension 990*655*132mm
Packing Dimension 76*110.5*26CM
Certificate CE/ROHS


 Product Image:




 1000w picture 2

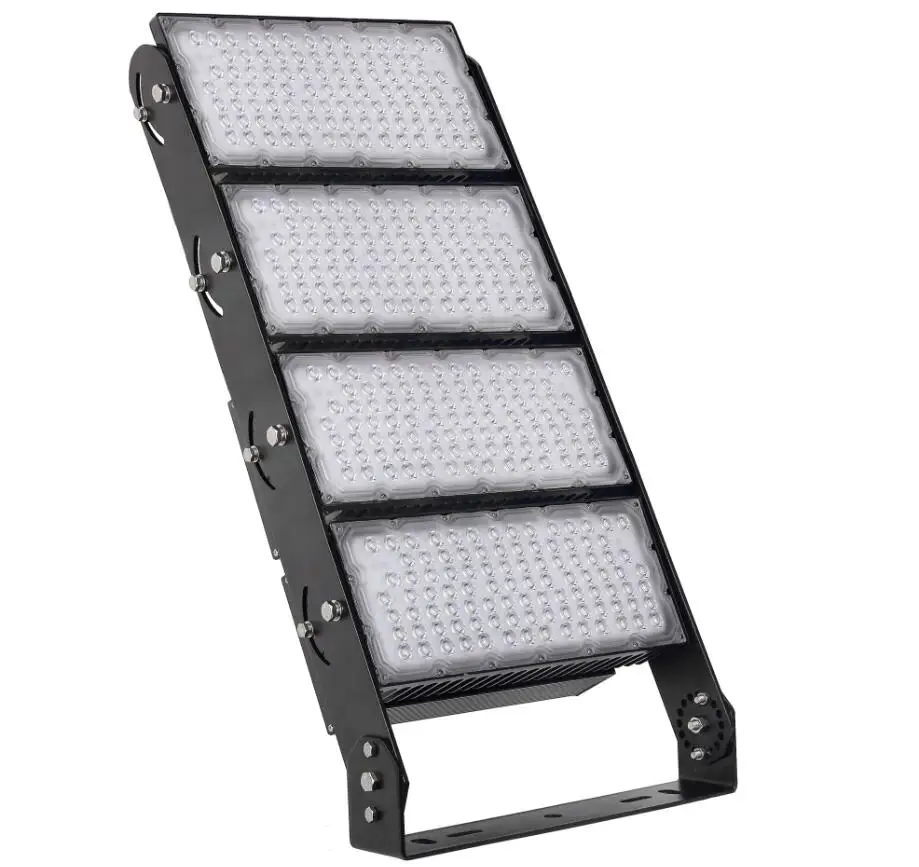

1000w picture 1

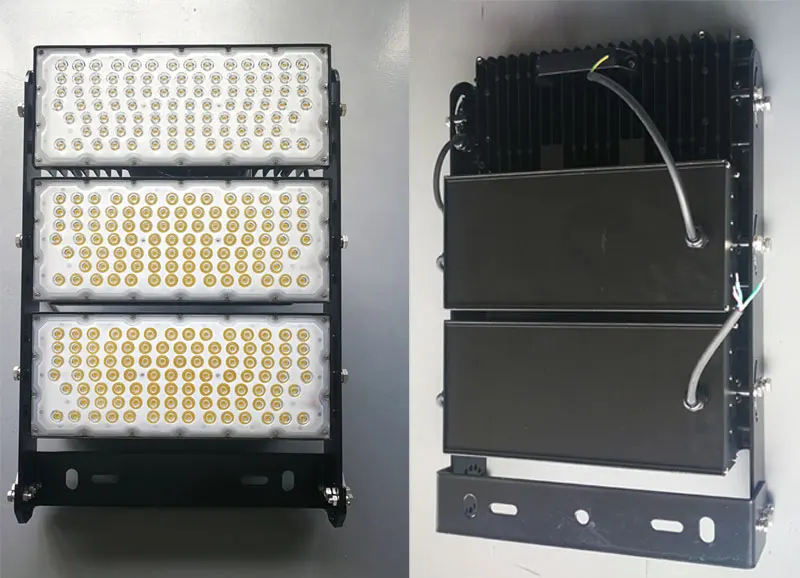

 SDE (3)





Advantages



SMD LED Flood light Features
LED Chip: 150lm/w SMD 5050 LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.

Power Supply: LED flood light use Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.

Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.

Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.

Certification: DLC FCC CE RoHS approval.

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.





 300W 600W 900W

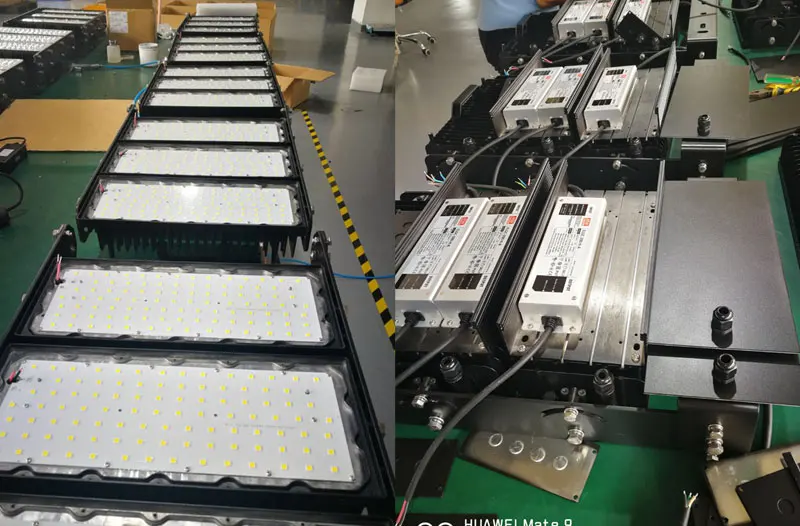

SDE (4)





Rayborn Led Flood Light testing:

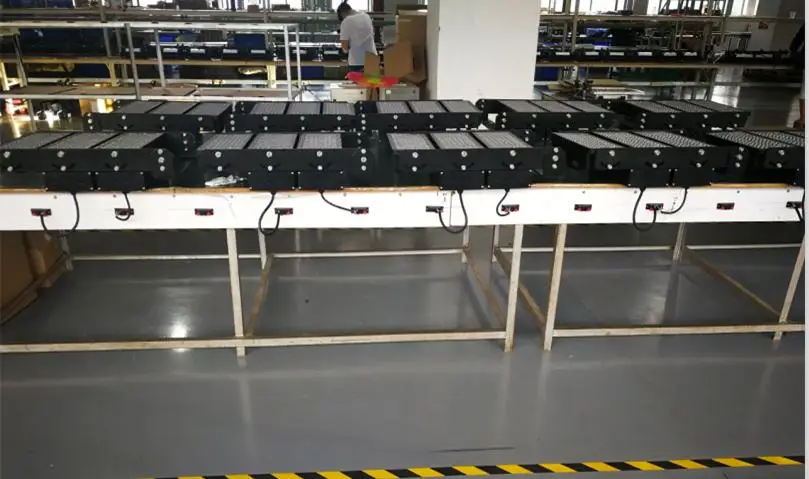

SDE led floodlight.JPG

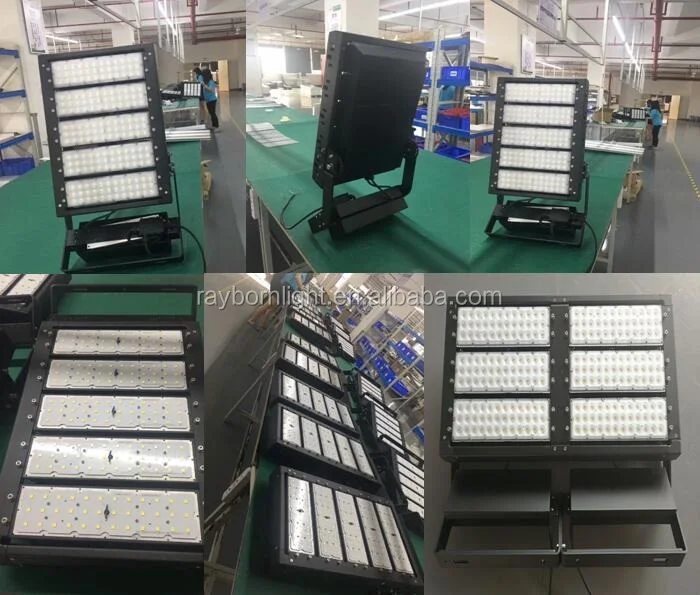

aging testQQ20180614105610

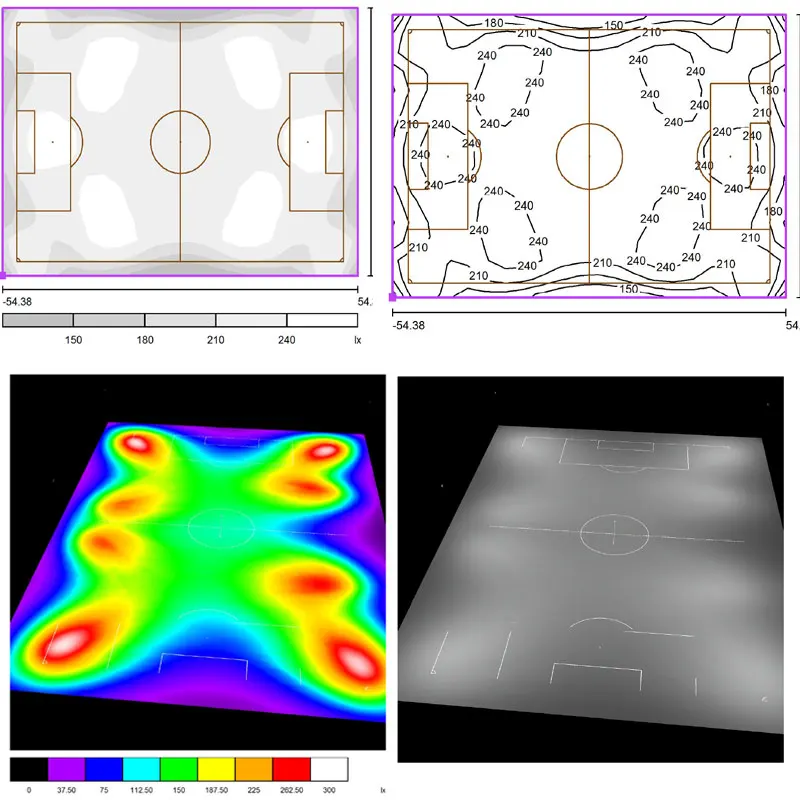

Standard football field area light plan simulation:




More choice of different type 1000W Led Flood Light:

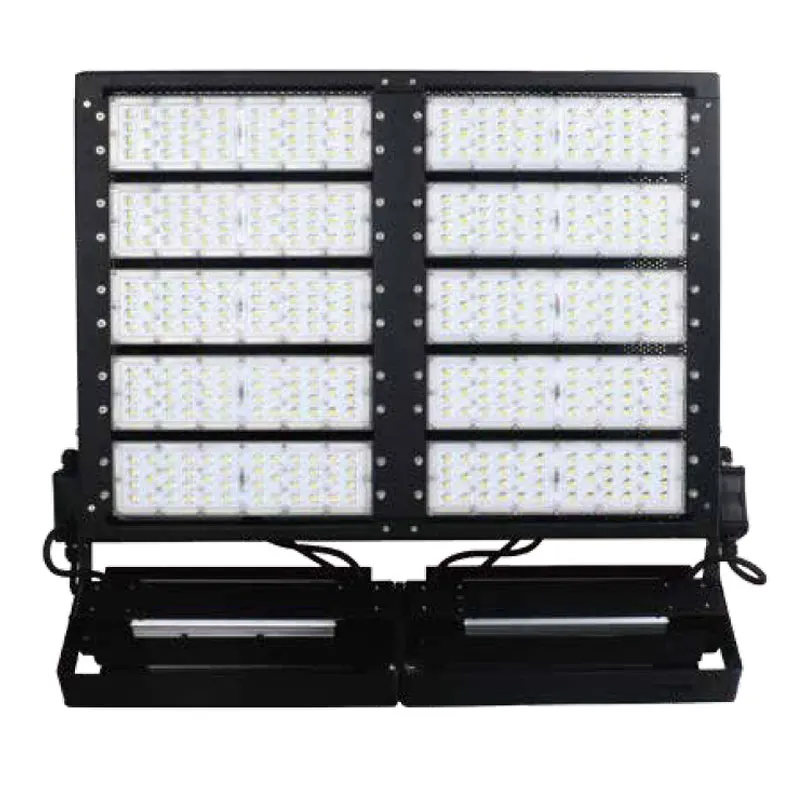

1000W-03

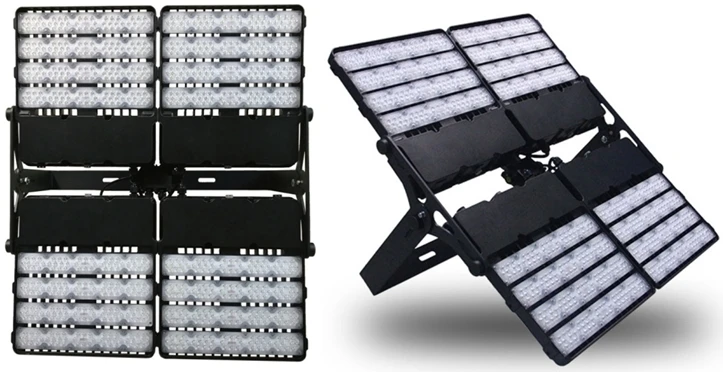

Rayborn led flood light





Related Products



Led Flood Light

Led Tunnel Light

UFO Led High Bay Light

Linear Led High Bay Light

Tri-Proof Led Light

Led Street Light

Led Panel Light

Led Tube Light







Our Services



Warranty:

We offer 5year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.



 We are Led light factory
Our factory have professional engineer team and after sales service,so solution,technology and after sales service,you do not worry,we can save lot of money and time for you.

Our individual package maximize protecting the lights from transfer damage.Our mode of transportation can be shipping,by air or other way you like.You can choose the express company by yourself.

Our Service:
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.



Our Certificate:

      We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.





Certifications









Company Information

Dongguan Rayborn Lighting Technology Co.,Ltd. a professional LED lights manufacturer,has been committed to the development production of exquisite, beautiful, safe, green energy-saving lighting products. Our products mainly contain serial varieties:led high bay light,led street light, led flood light, led tunnel light, led panel light, led spot light, led tube light, led ceiling light,etc.

 Applications 1

 Warranty:

We offer 5-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.



FAQ



1, Are you factory?
A:Yes, we produce LED flood lights for more than 6 years.

2, Can leadtime be more shorter because I am urgent?
A:Yes, please contact us urgent to check the details.

3, I want high quality LED flood light, can you do?
 A:Yes, quality is our culture,we only use best components to build our led flood lights.

4.Can we do our brand? Can you print or emboss our logo on the
tank? And our own brand box?
 A:Yes!

5. If there are some lights that can not work when i receive the goods?
A:Don't worry, we will give you same quantity of good lights for compensation in your next order.

6.How does your factory do regarding quality control?
A:Quality is priority. people always attach great importance to quality
controlling from the very beginning to the very end.  Our factory has
gained CE,CCC,ROHS,FCC,ISO900, authentication.

7.Where is your factory located? How can I visit there?
A:Our factory is located in Dongguan City, GuangDong Province, China.


Welcome you visit us anytime!
