Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- Rayfall
- Model Number:
- H301R
- Usage:
- Camping/Hiking/Fishing/Out activites
- Power Source:
- 3.7V li-Polymer 900mAh
- Lighting Period (h):
- >12
- Battery Type:
- 3.7V li-Polymer 900mAh
- Certification:
- CE, RoHS
- IP Rating:
- IP65
- Lamp Body Material:
- ABS+PC
- Base Type:
- 2G11
- Warranty(Year):
- 2
- Light Source:
- LED
- LED Light Source:
- CREE XP-G/2 S3 +2835 High Red + 2835 High White
- Powere Source:
- Rechargeable Li-Polymer 900mA/h
- Leds:
- CREE XP-G/2 S3 +2835 High Red + 2835 High White
- Max.Output:
- 300 Lumens
- Material:
- Plastic + ABS
- Main lamp modes:
- Main Lamp ( White High/Mid/Low/SOS)
- Proximity Lamp modes:
- Proximity Lamp ( White High) Red Light ( Red High,Flashing)
- Dimension:
- 65x49x42mm
- Resistance to Fall:
- 1.5M
- Water Resistance:
- IPX6
- Type:
- Headlamps
Supply Ability
- Supply Ability:
- 10000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 2018 Wholesale Most Powerful Rechargeable Light Sensor Headlamp packages will be follow customers requiments.
- Port
- Shenzhen
Product Description

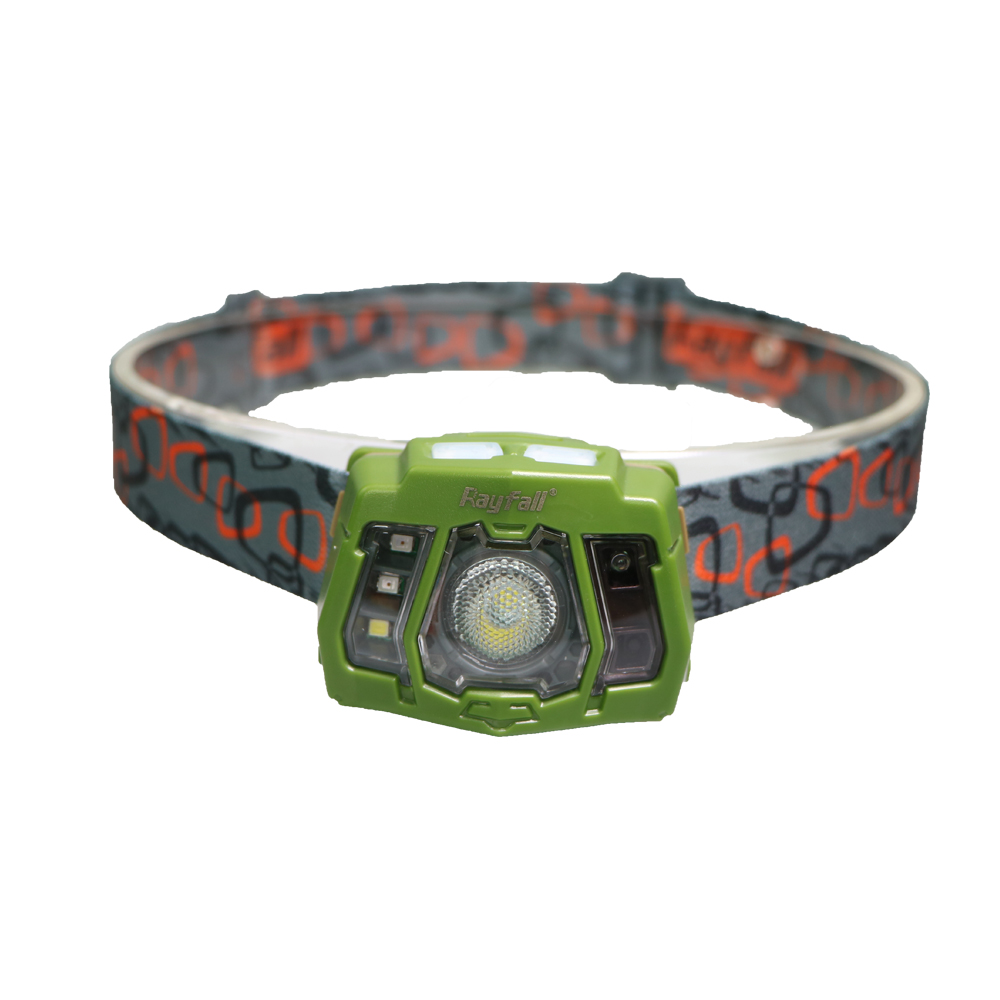

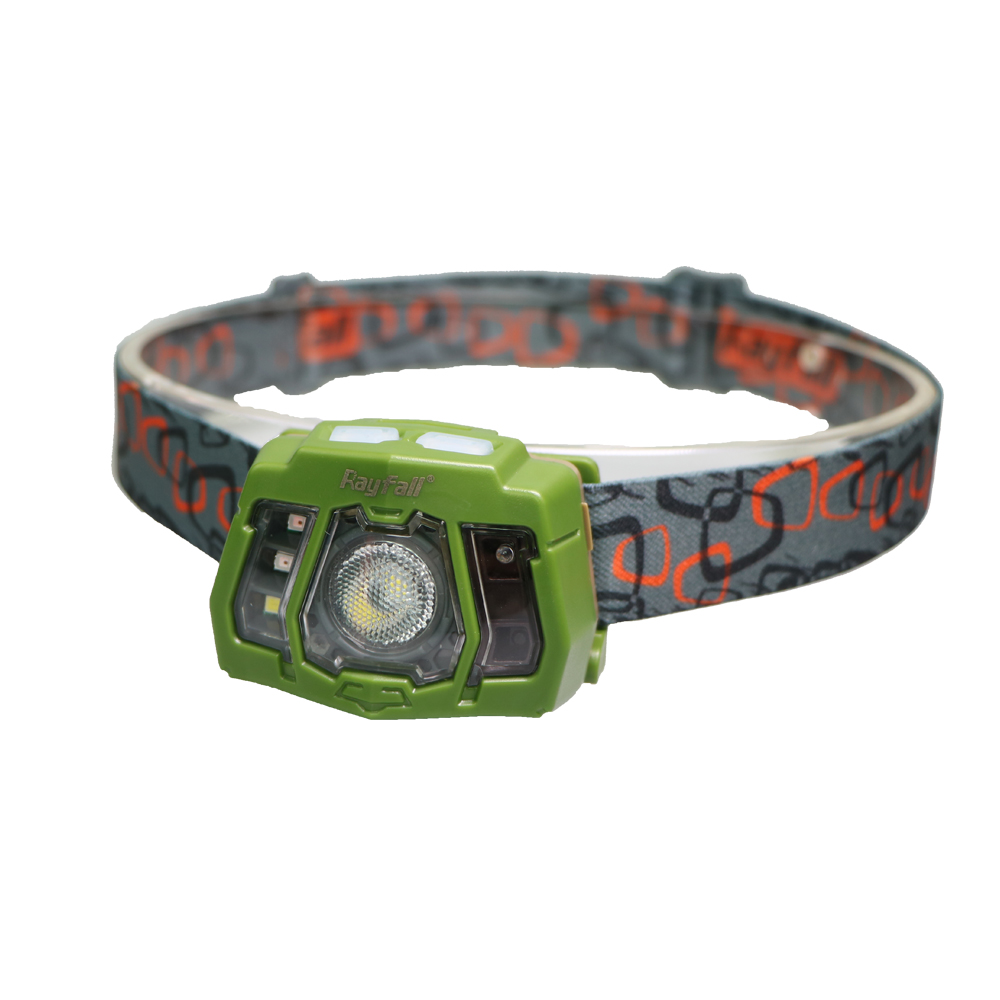

Powerful Hiking Tactical Storm Lighting Waterproof Led Headlamp Flashlight ( Model: H301R)
LEDs: CREE XP-G / 2 S3 +2835 High Red + 2835 High White
Working Voltage: DC 3.7V
Sizes : 65x49x42mm
Battery Powered : 3.7V Li-Polymer 900mA/h (Replaceable)
Max Output : 300 Lumens
Longest burn time : > 135h
Long Distance : 138M
Resistance to Fall : 1.5m
Water Resistance : IPX6
Headlamp Opertaion
Headlamp Opertion Guid:
Swtich 1 :
1)Once press to Cycle Through Main White High-MED-Low-SOS
2)Once Press for OFF if Lamp Stays at Any Modes for over 3 seconds,Press & Hold for Seconds to Activate (indicator Light ON,Single Press Any & Swtich for Backing to Normal Mode)
----Distance Sensor COntrollled Mode( Only for models with IR Sensors) and Modes Automactically swtich to High( far)-MED-Low(Closed)
---Ambient Light Sensor Controlled Mode( Only for models with Ambient Light Sensor) and Modes Automatically Switch to High(Dark)--MED--LOW ( Bright)
Swtich 2:
Once press to Cycle Through Proximity White - RED - RED Flashing -OFF
Once press for OFF if Lamp Stays at Any Modes for OVer 3 Seconds Press & Hold For Seconds to Activate Hand-Wave Sensor Controlled Mode, Indicator Light On -- Hand Wave for ON / OFF ( Single Press Any Switch for Backing to Normal Mode)
Specification
Lighting Modes:
Main Lamp XP-G / S3: White High-Medium-Low-SOS
Proximity Lamp 2835 : White High
Red Light 2835 : Red High- Strobe
Main Lamp (XP-G / S3) | Mode | Output (Lm) | Intensity (CD) | Distance (M) | Burn time (H) |
High | 300 | 4780 | 138.3 | 7 | |
Med | 122 | 1780 | 84.4 | 14 | |
Low | 12 | 220 | 29.7 | 56 | |
SOS | _ | 410 | 40.5 | 40 | |
Proximity Lamp | High | 12 | 14 | 7.5 | 38 |
Red Light | High | 2 | 3 | 3.5 | 135 |
Strobe | _ | 3 | 3.5 | _ |
More Function:
Dry Battery OR Rechargeable battery for optional
Motion Sensor / Distance Sensor/ Light Sensor for optional
Normal
