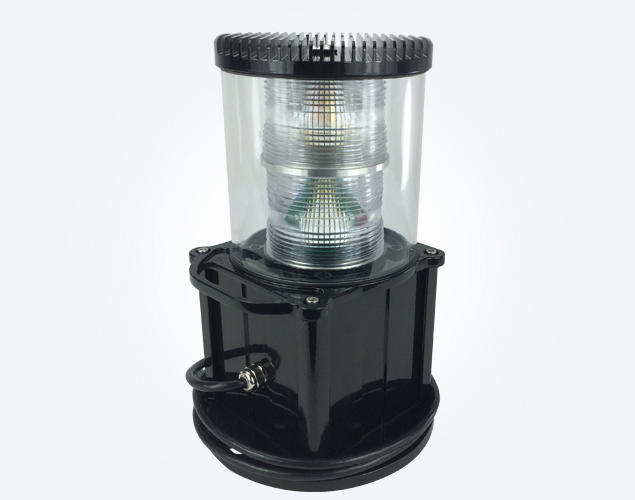

L-864/865 LED medium intensity red/white dual aviation obstruction light
Click on the image to view the original image
Product： views：6L-864/865 LED medium intensity red/white dual aviation obstruction light
Branch： REDDOT, REDDOT
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:28
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC;48VDC;24VDC;12VDC
Lamp Power(W):
310
Lamp Luminous Flux(lm):
62800
Lamp Luminous Efficiency(lm/w):
202
CRI (Ra):
85
Color Temperature(CCT):
Other
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
red/white
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
REDDOT, REDDOT
ICAO:
Medium intensity type A/B
Category1:
dual obstruction light
Category2:
medium intensity dual beacon
FAA:
L-864/865
Day intensity:
White 20,000cd
Night intensity:
Red 2,000cd
Flash rate:
20-60FPM
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
2pcs/carton,for L-864/865 LED medium intensity red/white dual aviation obstruction light
Port
Shanghai
Product Description

L-864/865 LED ICAO Medium Intensity red/white Dual Aviation Obstruction Light


L-864/865 LED medium intensity red/white dual aviation obstruction light
F86465 is a dual red/white LED medium intensity aircraft warning light generally used on unpainted tall structures more than 45 meters. F86465 flashes at 20,000cd at daytime and will be automatically transferred to 2000cd at nighttime.

F86465 red/white medium intensity LED aircraft warning light can either work with power converter box and controller for monitoring and functions as a system, or F86465 self-controlled configuration can work independently as an economical solution.

FEATURES

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution for complying ICAO medium intensity type A/B and FAA L-86465
• Aluminum heatsink provides excellent thermal dissipation performance
•Aluminum base with powder painted provides good weather and corrosion resistant
• Excellent shock and vibration resistant
• Longer lifetime expectancy, almost maintenance free
• Lower voltage (than xenon) makes it safer for installer
•Internal LED driver and constant current regulator make the light illuminate steadily
•Built-in 20KA surge protector module to protect the light from induction lightning strike
•Prewired cable makes wiring job easier
Independent F86465 DC white/red medium intensity obstruction light
When ①input voltage is DC power(12VDC/24VDC/48VDC) and ②F86465 works independently with self-controlled program:

←One set of F86465 system is only a 48VDC/24VDC/12VDC F86465 flash head.
Independent F86465 AC white/red medium intensity obstruction light
When ①input voltage is AC power(85-265VAC) and ②F86465 works independently with self-controlled program:

←One set of F86465 system is composed of a F86465 48VDC fixture and a 480W power converter box.

F86465 DC white/red medium intensity obstruction light with controller in a AC input system
When ①input voltage is AC power(85-265VAC) and ②there are multiple F86465 units with controller:

←the system will include 48VDC F86465 units with other types lights, AC controller and power converter box

F86465 DC white/red medium intensity obstruction light with controller in a DC input system
When ①input voltage is DC power(48VDC/24VDC/12VDC) and ②there are multiple F865 units with controller:

←the system will include DC F86465 unit with other types lights and DC controller
APPLICATIONS
COMPLIANCE
SPECIFICATION
LIGHT OUTPUT
Effective Intensity
White 20,000 candela+25%@day&Twilight
Red 2,000 candela+25%@night
Vertical Divergence
3.5  Degree
Horizontal Spread
360 Degree
LED Brand
OSRAM, Made in Germany
LED Color
White@Day,Red@Night
LED Lifespan
100,000 Hours
OPERATION
Flash Pattern
20-60FPM
POWER SUPPLY
Input Voltage
85VAC-265VAC,50-60HZ; 48VDC;24VDC;12VDC
Power Consumption
Day&Twilight: 480W
Night: 40W
MECHANICAL STRUCTURE
Optical Lens
Polycarbonate, UV Stabilized
Optical Lens Cover
Acrylic, UV stabilized
Body
Die-casting Aluminum
Protection
IP67
Net Weight
9KG
Temperature Range
-40°C ~ +55°C
Relative humidity
100% with condensation
Dimension
312mm Height,258mm Diameter
Installation Size
Four 11*25mm slot holes on 234mm PCD
Others
Warranty
5 years
Optional
Available with built-in photo sensor
Available with alarm contacts
Available with 20KA surge protector
Available with GPS synchronization
Available with Zigbee wireless monitoring
Available with GPRS cell phone monitoring
ORDERING CODE

For Example, F86465A220P-SP, means F865 LED medium intensity dual red/white obstruction light, 85-265VAC, white flashing@ 40FPM, white 20,000cd+25%@day&twilight, red 2,000cd+25%@night, with 20KA surge protector

DIMENSION
INSTALLATION
Wiring&Solution
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
