Home > Products > OMS2K LED medium intensity solar aviation obstruction light
OMS2K LED medium intensity solar aviation obstruction light
Click on the image to view the original image
Product: views:6OMS2K LED medium intensity solar aviation obstruction light
Branch: REDDOT
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:28
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
12
Lamp Power(W):
5
Lamp Luminous Flux(lm):
6285
Lamp Luminous Efficiency(lm/w):
251.4
CRI (Ra):
85
Color Temperature(CCT):
red
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
LED
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
REDDOT
Model Number:
OMS2K
Effective intensity:
2000
Standard:
ICAO medium intensity type B/FAA L864
Supply Ability
Supply Ability:
300 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/carton, for OMS2K LED medium intensity solar aviation obstruction light
Port
Shanghai
Lead Time:
10-30days depends on quantity, OMS2K LED medium intensity solar
Product Description
OMS2K LED medium intensity solar aviation obstruction light

Solar Powered  medium intensity aviation obstruction light, red flashing 2000cd, ICAO medium intensity type B
Solar Powered medium intensity aircraft warning light for telecom tower, transmission tower, building, chimney, crane

OMS2K LED based medium intensity solar powered aviation obstruction light

OMS2K solar medium intensity obstruction light, compliant to ICAO medium intensity type B, is a self-contained solar powered lighting system without needing any extra power source. Robust body built and surface coating provides excellent protection against harsh environments.

OMS2K solar medium intensity obstruction light is a complete solar light unit, integrated with a light head, solar panel and battery. Four holes on the bottom of base make mounting easier by inserting screws to any horizontal brackets or surfaces.

OMS2K is equipped with a high-efficiency coiled SLA rechargeable battery which could power the light up to 15 days when the weather is cloudy&rainy.

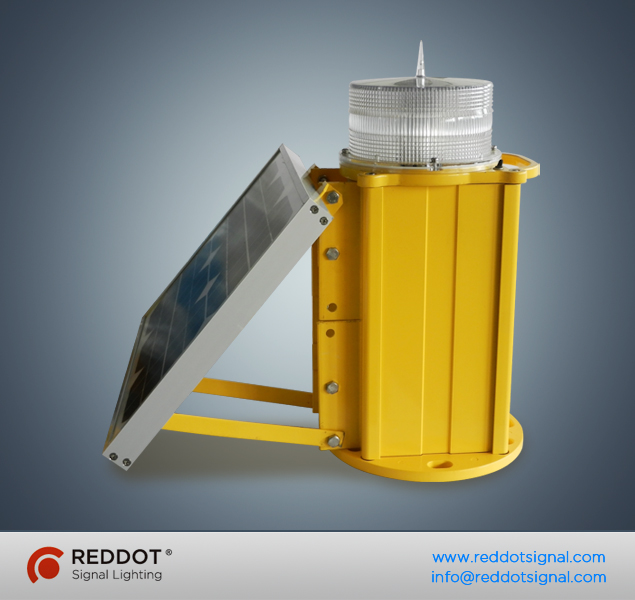

OMS2K-S LED Solar Powered medium Intensity Single Obstruction Light

OMS2K-S solar powered medium intensity single obstruction light is a compact fixture with a single LED light head , one-side angle-adjusted 20W high-efficiency solar panel and a compartment for high-grade coiled SLA rechargeable battery and control board. Ingenious solar panel mounting design make the mounting easier and faster. Without difficult wiring job, customer only need to plug male a female cable connector to connect solar panel to battery base.

Generally, multiple OMS2K-S solar medium intensity obstruction lights will be installed on top of tall structures with more than 45meter, the numbers used shall depend on the profile of the structure.

OMS2K-D-ST LED Solar Powered Medium Intensity Double Obstruction Light

OMS2K-D-ST Solar powered medium intensity double obstruction light is a complete double light fixture with two OM2K light heads, one-side angle-adjusted high-efficiency 20W solar panel and a compartment for coiled SLA rechargeable battery and control board. OMS2K-D-ST operation mode is “service+standby”. Only “Service light” is working normally. It will auto-transfer to Standby light in the case of “Service light” failure.

When customers need solar powered double medium intensity obstruction lights works together, we suggest two OMS2K-S units for easy carrying and installation.

Ingenious solar panel mounting design makes the mounting easier and faster. Without difficult wiring job, the customer only needs to plug male a female cable connector to connect the solar panel to battery base.

FEATURES

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Self-contained structure without needing external cable wiring
•High-grade Coiled SLA battery provides long lifetime
•Integrated MPPT(Maximized Power Point Tracking) to collect sun power as much as possible
•Integrated SBM(Smart Battery Management) for self-adjusting LED output by detecting ambient environment
•Ingenious one-side solar panel mounting design make decline angle adjustable to adapt to broad-wide regions with different latitudes
•Encapsulated and sealed power module provides more reliability and better protection
•GE polycarbonate dome, UV-stabilized
•Aluminum base with powder painted, corrosion-resistant
•Excellent shock and vibration resistant

APPLICATIONS
COMPLIANCE
SPECIFICATION
LIGHT OUTPUT
Effective Intensity
2000cd+25%
Vertical beam
Horizontal Spread
360°
Light Source
Osram LEDs
LED Color
Red
LED Lifespan
100,000 Hours
OPERATION
Autonomy
15 days
ON&OFF Level
70/100Lux
Flash Pattern
Flashing(40FPM as default)
POWER SUPPLY
Solar Panel Type
Solar Module, Mono-Crystalline Silicon
Solar Panel Efficiency
13.50%
Solar Panel Size
20W
Battery type
High-efficiency Coiled SLA
Battery Replacement
Yes, replaceable
Battery Size
12V/18Ah
MECHANICAL STRUCTURE
Lens
Polycarbonate, UV Stabilized
Body
Extrude-Aluminum
Mounting
4*Ф16*25mm slot holes and 2*Ф16mm round holes
on 200mm bottom PCD
Protection
IP67
Temperature
-40C°~+55C°
Relavtive Humidity
100% with condensation
Weight
15KG
Dimension
Height: 446mm Width: 532mm
OTHERS
Optional
•Zigbee Wireless Monitoring
•GPS Synchronization
•GPRS Wireless Remote Monitoring
Warranty
•5 years for light
•3 years for battery
ORDERING CODE
Series
Single
/Double
Operation Mode
(For double light only)
Zigbee Wireless
GPS
GPRS
OMS2K
S(Single)
ST
(Service+Standby)

[Blank]
(w/o Zigbee)
[Blank]
(w/o GPS)
[Blank]
(w/o GPRS)
D(Double)
ZB
(w/ Zigbee wireless monitoring)
GPS
(w/ GPS)
GPRS
(w/ GPRS)

For Example:
OMS2K-S-GPRS, means a solar medium intensity single obstruction light, red flashing 2000cd, with GPRS.
Note:
•When customer need double solar medium intensity obstruction light installed on the same level, please select two units OMS2K-S single unit for easy installation.
•If select the light with Zigbee wireless monitoring, the customer also need to buy REDDOT wireless controller.
•When the light is in storage, please put it outside to charge the battery every 3 months.

DIMENSION
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
On Site Pictures
Contact Us
Warranty
Our Customer
Company Information

About Us

Started 2011, REDDOT is concentrating on designing and manufacturing aviation obstruction lighting products. With six years rich experience in development, production and sales, REDDOT has grown up to a major and powerful manufacturer of aviation obstruction light in China.

Our Mission

Provide reliable and longevous products with optimal design to our customers

Our Value

•Improve continuously
•Persistent and resolute
•Keep vigorous

What we do

REDDOT focus on R&D of obstruction light and continuously invest capital on R&D and quality, to provide state-of-the-art products for our customers.

Who we serve

•Telecom
•Electricity
•Building

•Airfield/Helipad
•Wind Energy
•Oil&Gas

•Construction Machinery
•Plant
•Mining

Our Advantage

•Deep understanding of technologies that our products require, including, high-power LED&driver, photometric, heat dissipation, solar system, control and monitoring.
•Absolutely following rules & regulations in the industry we are serving. Such as ICAO, FAA, DGAC, CAA, CAP, CASA etc international and region aviation regulations; IEC and IEEE international electric standards
•Semi-automatized production line and workers with high quality, make sure exquisite process and more reliable quality
•Restrict selection and audition of materials suppliers, REDDOT tries our best to use more superior materials of well-known international brands, including OSRAM, NSC, Omron, Schneider, Weidmuller,etc, to assure our products perform better and longer lifespan.
•Restrict QA and QC on materials, semi-products and finished products.
