- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 85-265VAC;48VDC;24VDC;12VDC
- Lamp Power(W):
- 4
- Color Temperature(CCT):
- Other
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, EMC, LVD
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- Other
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- REDDOT, REDDOT
- Model Number:
- OL32S
- ICAO/FAA low intensity obstruction light:
- Type B/L810
- Category:
- single obstruction light
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- 12pcs/carton for single obstruction lights
- Port
- Shanghai
- Lead Time:
- 7-20days for single obstruction lights

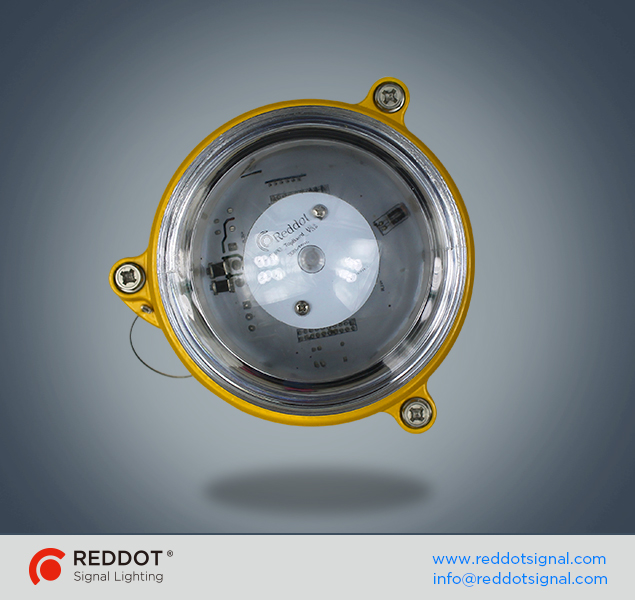

LED Based low intensity single obstruction light with junction box type
OL32 LED low intensity aviation obstruction light/L810 single obstruction light
Description:
Reddot Signal"s OL32 single aviation obstruction light is a 32cd (candela) LED light designed for fixed obstacle marking application, such as telecommunication&transmission towers, high-rise building, wind-turbine, crane etc.

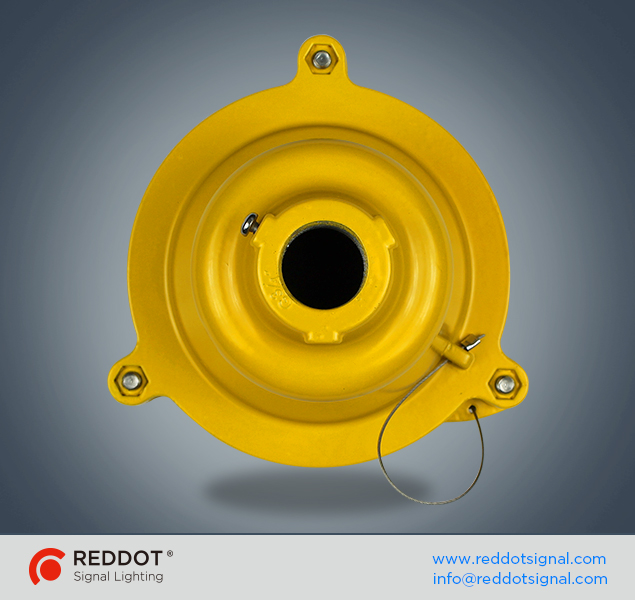

OL32 single obstruction light with junction box can eliminate opening lighthead to cause any misuse during wiring job.
Features:
-Special optical design provides better light distribution
- LED light source ensures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type.
Compliant with:
-ICAO Annex 14, 4th Edition, Low intensity type B
-FAA AC No.150/5345-43F,2006, type L-810
-DGAC Mexico
Specification
SPECIFICATIONS | |
LIGHT OUT-PUT | |
Effective Intensity | 32 Candela |
Vertical Divergence | 10 Degree |
Horizontal out-put | 360 Degree |
LED Color | Red |
LED Lifespan | 100,000 Hours |
OPERATION | |
Flash Pattern | Steady-burning(Default) |
POWER SUPPLY | |
Operating voltage | 12VDC, 24VDC, 48VDC; 110VAC, 220VAC, 50/60Hz |
Power consumption | 6W |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilize |
Body | Die-casting Aluminum |
Water-proof | IP65 |
Weight | 0.9 KG |
Dimensions | 159mm H, 245mm Diameter |
Mounting Size | Threaded 3/4’’ bottom hub |
Temperature Range | -40°C ~ +55°C |
Relative humidity | 100% with condensation |
Wind Speed | Up to 150mph(240kph) |
| |
Warranty | 5 years |
Optional | Available in flashing pattern (40FPM default) Available with built-in alarm relay contacts |
Ordering Code
Series | Single/Double | AC/DC | Voltage | Flashing | Photosensor | Alarm relay | Pattern(For double light only) |
OL32 | S | A | 12 | F | P | R | ST |
| D | D | 24 |
|
|
| SS |
|
|
| 48 |
|
|
|
|
|
|
| 110 |
|
|
|
|
|
|
| 220 |
|
|
|
|
For example, OL32DA220SS means OL32 double light, AC220V power supply, red steady burning, “service+service”.
