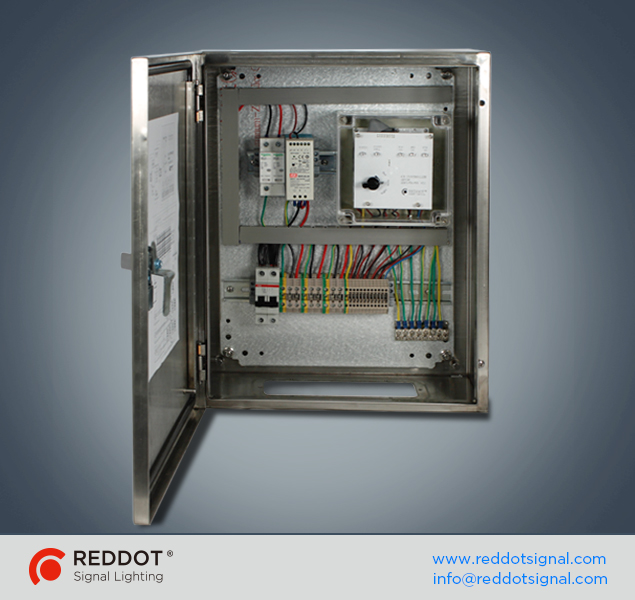

CB3 Aviation Obstruction Light Controller
RedDot controller CB3 is used for controlling a monitoring RedDot LED aviation obstruction light. With the friendlier interface and easy-to-set switches for multifunction. With DIN rail terminal blocks, this controller comes with circuit breaker and surge protector to protect obstruction lighting system against over-voltage and lightning strike.
With CAN bus technology, CB3 comes with a control module with three channels, the numbers of each channel connected is not limited. All lights are controlled by CAN bus high and low signal rather than power switch.
The operation mode of the three channels can be programmed to customer’s desired. When in the catenary application, the flash sequence will be middle-top-bottom, all lights in one channel will flash simultaneously.
Equipped with a MW 40W power converter, the controller converts input voltage 85-265VAC to 48VDC output voltage for powering the control module. Power box for lights shall connect to the controller for centralizing power management for lights.
CB3 obstruction light controller
PHC01 photocell for REDDOT controller
•All lights are controlled by CAN bus high and low signal rather than power switch assured lights longer lifespan
•LED indicators for light, power and photocell•Three channels for connecting lights, each channel can connect any numbers of lights with limitation
•All lights in one channel flash simultaneously
•Under F857 high intensity lighting system for catenary, flash sequence is middle-top-bottom
•By-pass switch for photocell “DAY-AUTO-NIGHT” for commissioning and maintenance
•Both NO and NC dry alarm contacts are available for light, power and photocell
•Built-in power converter to converter AC input voltage to 48VDC output for control board
•Circuit breaker for over-current protection and main power switch
•Surge protector for voltage fluctuation and lightning strike protection
