Home > Products > LED low intensity twin aviation obstruction light for GSM towers
LED low intensity twin aviation obstruction light for GSM towers
Click on the image to view the original image
Product: views:5LED low intensity twin aviation obstruction light for GSM towers
Branch: REDDOT, REDDOT
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:28
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
12/24/48VDC; 85-265VAC
Lamp Power(W):
4
Lamp Luminous Flux(lm):
225
Lamp Luminous Efficiency(lm/w):
56.25
CRI (Ra):
80
Color Temperature(CCT):
red
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
twin aviation light
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
REDDOT, REDDOT
Model Number:
OL32D twin obstruction light, OL32D
Category:
Twin obstruction light
ICAO/FAA low intensity obstruction light:
Type B/L810
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4pcs/carton twin obstruction light, LED low intensity twin aviation obstruction light for GSM towers
Port
Shanghai
Lead Time:
7-20days depends on quantity,aviation obstruction light
Product Description

OL32 LED low intensity twin obstruction light

OL32D low intensity red twin aviation obstruction light is designed based on LED technology, for marking structures outline for warning aircraft during nighttime. Complying with ICAO low intensity type B, OL32D double is usually used for structures less than 45m or intermediate levels combined with medium intensity obstruction lights.
LED low intensity twin aviation obstruction light for GSM towers

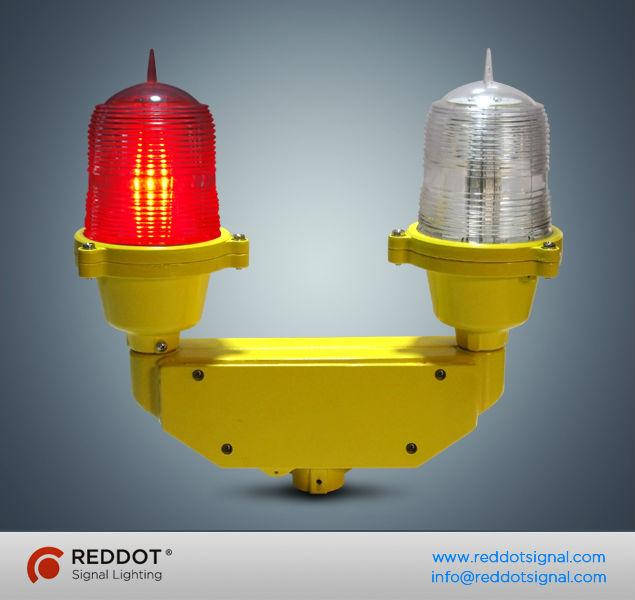

OL32 LED Low Intensity Twin Obstruction Light

OL32 double obstruction light is a complete double light fixture with two OL32 single lights and a compartment for control board. OL32 double light has two operation mode “Service+Standby” and “Service+Service”. Generally the double light could be installed on top or intermediate of a structure.

• Service+Service: Two single lights work simultaneously. Either failure will not affect the other normal working.

•Service+Standby: Only “Service light” is working normally. It will auto-transfer to Standby light in case of “Service light” failure.

FEATURES

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Internal LED driver and constant current regulator make the light illuminate steadily
•Encapsulated and sealed power module provides more reliability and better protection
•Extremely low power consumption
•Excellent shock and vibration resistant
•GE polycarbonate dome, UV-stabilized
•Aluminum base with powder painted, corrosion-resistant
•G3/4 threaded bottom entry for easy mounting
•Prewired cable makes wiring job easier
•Available in both single and double type

APPLICATIONS
COMPLIANCE
SPECIFICATION
P/N
OL32D
LIGHT OUTPUT
Effective Intensity
>32cd
Vertical beam
10°
Horizontal Spread
360°
Light Source
Osram LEDs
LED Color
Red
LED Lifespan
100,000 Hours
OPERATION
Flash Pattern
Steady burning or flashing upon request
POWER SUPPLY
Input Voltage
85-265VAC,50/60Hz;48VDC;24VDC;12VDC
Power Consumption
Service+Standby:4W
Service+Service: 8W
MECHANICAL STRUCTURE
Lens
Polycarbonate, UV Stabilized
Body
Die-casting Aluminum
Mounting
G3/4 threaded bottom entry
Protection
IP65(IP67 If with REDDOT 3-piece waterproof fitting)
Net Weight
3.5KG
Temperature
-40C°~+55C°
Relavtive Humidity
100% with condensation
Dimension
413mm*140mm*369mm
OTHERS
Warranty
5 years
Optional
Available with built-in photocell
Available with alarm contacts
ORDERING CODE

For example:

OL32DA220SS, is OL32 LED Low intensity double obstruction light, 85-265VAC, red steady 32cd, service+service

OL10SD48P, is OL10 LED low intensity single obstruction light, 48VDC, red steady 10cd, with built-in photocell

OL100DA220FST, is OL100 LED Low intensity double obstruction light, 85-265VAC, red flashing>100cd, service+standby

DIMENSION
INSTALLATION
WIRING&OPERATION
SYSTEM SOLUTION SAMPLE
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
