OM2K LED Medium Intensity Type B Aviation Obstruction Light for towers
Click on the image to view the original image
Product: views:6OM2K LED Medium Intensity Type B Aviation Obstruction Light for towers
Branch: REDDOT
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:28
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC; 48VDC, 24VDC,12VDC
Lamp Power(W):
25
Lamp Luminous Flux(lm):
6285
Lamp Luminous Efficiency(lm/w):
251.4
CRI (Ra):
85
Color Temperature(CCT):
red
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
REDDOT
Model Number:
OM2K
ICAO:
medium intensity type B&C
Category:
Medium intensity obstruction light
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
4 units/carton
Port
Shanghai
Lead Time:
10-25 days
Product Description

OM2K LED ICAO Medium Intensity Type B&C Aviation warning light/aircraft obstruction light

OM2K is a new generation medium intensity obstruction light. It comes with compact size and light-weight, which makes installation job nice & easy. The optical part is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angel to meet with ICAO requirements. Fresnel lens is often used to design obstruction light.

The ingress protection level of OM2K medium intensity obstruction light is IP67, assures the light is well sealed to stand harsh environment such as near the sea, rainy season, tropical weather and so on. If work with control box, more functions such as synchronization and alarm monitoring will be realized. GPS or GPRS are also available if needed.

OM2K medium intensity obstruction light is usually used for towers taller than 45m. OM2K can either work alone or in combination with low intensity, medium intensity and/or high-intensity obstruction lights.

FEATURES

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution for complying ICAO medium intensity type B&C and FAA L-864
• Aluminum heatsink provides excellent thermal dissipation performance
•Aluminum base with powder painted provides good weather and corrosion resistant
• Excellent shock and vibration resistant
• Longer lifetime expectancy, almost maintenance free
• Lower voltage (than xenon) makes it safer for installer
•Internal LED driver and constant current regulator make the light illuminate steadily
•Built-in 20KA surge protector module to protect the light from induction lightning strike
•Prewired cable makes wiring job easier

APPLICATIONS
COMPLIANCE
SPECIFICATION
LIGHT OUTPUT
Effective Intensity
2000 candela+25%
Vertical Divergence
3 Degree
Horizontal Spread
360 Degree
LED Color
Red
LED Lifespan
100,000 Hours
OPERATION
Flash Pattern
Steady Burning or Flashing
POWER SUPPLY
Input Voltage
85VAC-265VAC,50-60HZ; 48VDC;24VDC;12VDC
Power Consumption
25W
MECHANICAL STRUCTURE
Lens
Polycarbonate, UV Stabilize
Body
Die-casting Aluminum
Protection
IP67
Net Weight
5KG
Temperature Range
-40°C ~ +55°C
Relative humidity
100% with condensation
Dimension
210mm Height,226mm Diameter
Others
Warranty
5 years
Optional
Available with built-in photo sensor
Available with alarm contacts
Available with 20KA surge protector
ORDERING CODE
Series
AC/DC
Voltage
Flash Mode
Photosensor
Alarm Relay
Surge Protector
OM2K
A(AC)
220
(85-265VAC)
[Blank]
(Steady)
[Blank]
(w/o photosensor)
[Blank]
(w/o Alarm Contacts)
[Blank]
(w/o 20KA surge protector)
D(DC)
110
(85-265VAC)
F
(Flashing)
P(w/ photosensor)
R
(w/ Alarm Contacts)
SP
(w/ 20KA surge protector)
48(48VDC)
24(24VDC)
12(12VDC)

For example: OM2KA220FPSP, is OM2K LED medium intensity obstruction light, 85-265VAC, red flashing, with built-in photocell, with 20KA surge protector.

DIMENSION
INSTALLATION
WIRING&OPERATION
Solution System Sample
On Site Pictures
Detailed Images

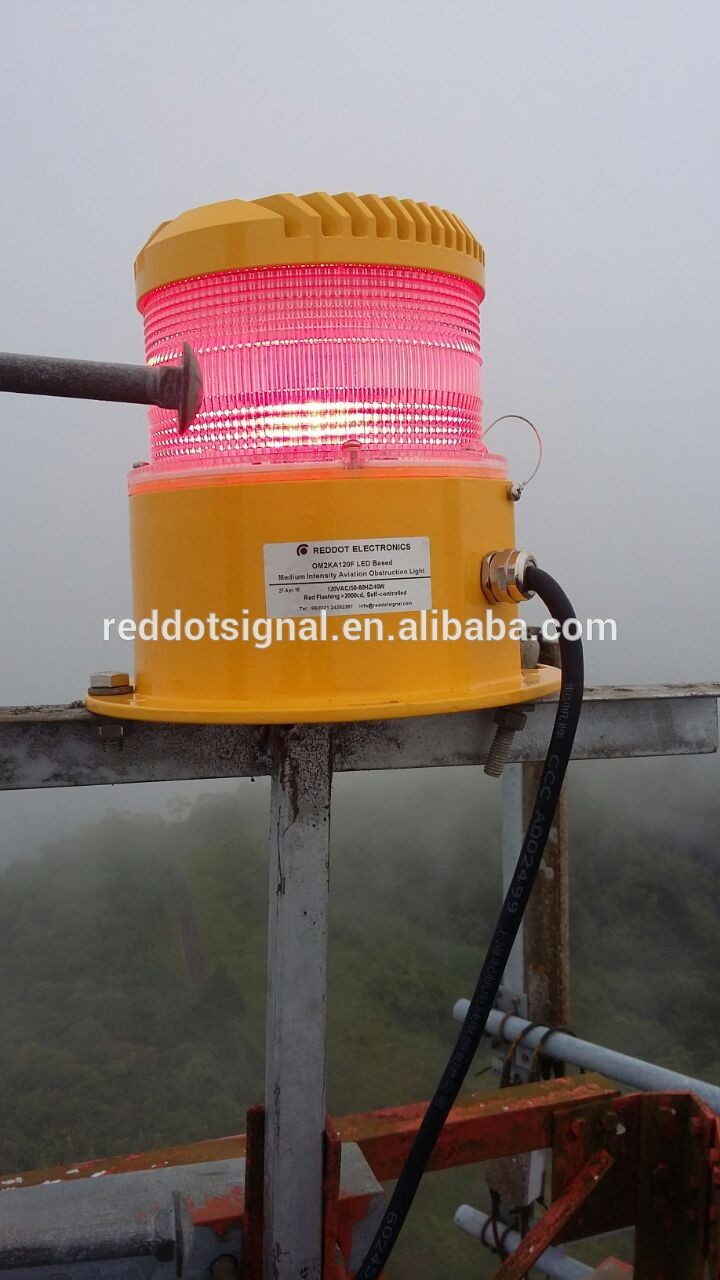

IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
Certifications
Warranty
Contact Us
Our Customer
Company Information

About Us

Started 2011, REDDOT is concentrating on designing and manufacturing aviation obstruction lighting products. With six years rich experience in development, production and sales, REDDOT has grown up to a major and powerful manufacturer of aviation obstruction light in China.

Our Mission

Provide reliable and longevous products with optimal design to our customers

Our Value

•Improve continuously
•Persistent and resolute
•Keep vigorous

What we do

REDDOT focus on R&D of obstruction light and continuously invest capital on R&D and quality, to provide state-of-the-art products for our customers.

Who we serve

•Telecom
•Electricity
•Building

•Airfield/Helipad
•Wind Energy
•Oil&Gas

•Construction Machinery
•Plant
•Mining

Our Advantage

•Deep understanding of technologies that our products require, including, high-power LED&driver, photometric, heat dissipation, solar system, control and monitoring.
•Absolutely following rules & regulations in the industry we are serving. Such as ICAO, FAA, DGAC, CAA, CAP, CASA etc international and region aviation regulations; IEC and IEEE international electric standards
•Semi-automatized production line and workers with high quality, make sure exquisite process and more reliable quality
•Restrict selection and audition of materials suppliers, REDDOT tries our best to use more superior materials of well-known international brands, including OSRAM, NSC, Omron, Schneider, Weidmuller,etc, to assure our products perform better and longer lifespan.
•Restrict QA and QC on materials, semi-products and finished products.
