Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 85-265VAC;48VDC;24VDC;12VDC
- Lamp Power(W):
- 4
- Lamp Luminous Flux(lm):
- 190
- Lamp Luminous Efficiency(lm/w):
- 47.5
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Other
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, EMC, LVD
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- Other
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- REDDOT, REDDOT
- Model Number:
- OL32D
- ICAO/FAA low intensity obstruction light:
- Type B/L810
- Category:
- double aviation obstruction light
Supply Ability
- Supply Ability:
- 500 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- 4pcs/carton for double aviation obstruction light
- Port
- Shanghai
- Lead Time:
- 7-25 days for double aviation obstruction light

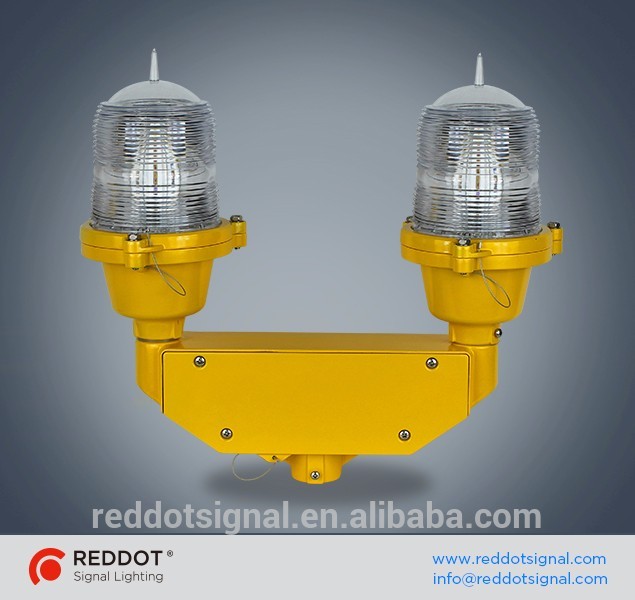

ICAO low intensity type B LED double aviation obstruction light for telecom tower
Double aviation obstruction light/Low intensity LED obstacle lighting
Reddot Signal"s OL32 series is typically a standard LED obstruction light designed for airway fixed obstacle marking application. It comply with ICAO regulation, low intensity, type B. Working mode is steady burning
Functions & Features
- Special optical design provides better light distribution
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type.
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type.
| Order codes: | |||||
| Series | Single/Double | AC/DC | Voltage | Flashing | Photo sensor |
| OL32 | S | A | 12 | F | P |
| D | D | 24 | |||
| 48 | |||||
| 110 | |||||
| 220 | |||||
| For example, L32DA220F means a double, AC power supply, 220V flashing light | |||||
