Home > Products > Low intensity LED telecom tower beacon /Single aviation obstacle light
Low intensity LED telecom tower beacon /Single aviation obstacle light
Click on the image to view the original image
Product: views:6Low intensity LED telecom tower beacon /Single aviation obstacle light
Branch: REDDOT, REDDOT
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:28
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC/48VDC/24VDC/12VDC
Lamp Power(W):
4
Lamp Luminous Flux(lm):
600
Lamp Luminous Efficiency(lm/w):
150
CRI (Ra):
85
Color Temperature(CCT):
red
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
REDDOT, REDDOT
Model Number:
OL10S, OL10S
ICAO/FAA low intensity obstruction light:
ICAO low intensity, Type A
Color:
Red
Input Voltage:
12VDC, 24VDC, 48VDC, 110VAC, 220VAC
Category:
Single aviation obstacle light
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
12pcs/carton for Low intensity LED telecom tower beacon /Single aviation obstacle light
Port
Shanghai
Lead Time:
7-20days depends on quantity, for single aviation obstacle light
Product Description

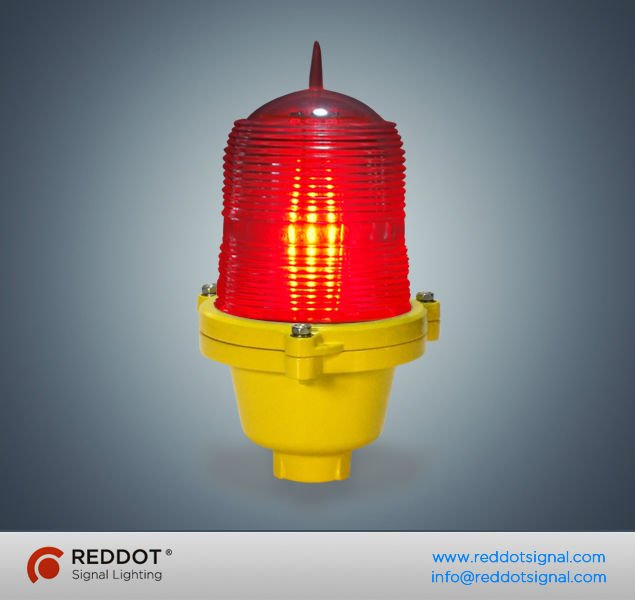

OL10 LED LOW INTENSITY AVIATION OBSTRUCTION LIGHT/AIRCRAFT WARNING LIGHT

OL10 low intensity red obstruction light is designed based on LED technology, for marking structures outline for warning aircraft during nighttime. Complying with ICAO low intensity type A. OL10 is used for structures less than 45m or intermediate levels combined with medium intensity lights.
Low intensity LED telecom tower beacon /Single aviation obstacle light

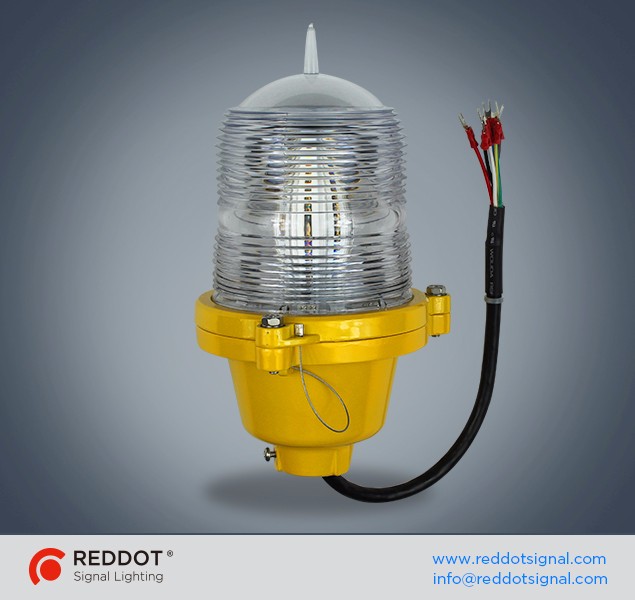

OL10 LED Low Intensity Single Obstruction Light

OL10 single obstruction light is a compact fixture with a single LED light head. With 25cm prewired cable, customers shall do the wiring job easier without opening the light head. Generally, multiple OL10 single lights will be installed in one or more horizontal levels of a structure.

OL10 LED Low Intensity Double Obstruction Light

OL10 double obstruction light is a complete double light fixture with two OL10 single lights and a compartment for control board. OL10 double light has two operation mode “Service+Standby” and “Service+Service”. Generally the double light could be installed on top or intermediate of a structure.

• Service+Service: Two single lights work simultaneously. Either failure will not affect the other normal working.

•Service+Standby: Only “Service light” is working normally. It will auto-transfer to Standby light in case of “Service light” failure.

FEATURES

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Internal LED driver and constant current regulator make the light illuminate steadily
•Encapsulated and sealed power module provides more reliability and better protection
•Extremely low power consumption
•Excellent shock and vibration resistant
•GE polycarbonate dome, UV-stabilized
•Aluminum base with powder painted, corrosion-resistant
•G3/4 threaded bottom entry for easy mounting
•Prewired cable makes wiring job easier
•Available in both single and double type

APPLICATIONS
COMPLIANCE
SPECIFICATION
P/N
OL10S
OL10D
LIGHT OUTPUT
Effective Intensity
>10cd
Vertical beam
10°
Horizontal Spread
360°
Light Source
Osram LEDs
LED Color
Red
LED Lifespan
100,000 Hours
OPERATION
Flash Pattern
Steady burning or flashing upon request
POWER SUPPLY
Input Voltage
85-265VAC,50/60Hz;48VDC;24VDC;12VDC
Power Consumption
4W
4W@Service+Standby
8W@Service+Service
MECHANICAL STRUCTURE
Lens
Polycarbonate, UV Stabilized
Body
Die-casting Aluminum
Mounting
G3/4 threaded bottom entry
Protection
IP65(IP67 If with REDDOT 3-piece waterproof fitting)
Net Weight
Single:0.9KG
Double: 3.5KG
Temperature
-40C°~+55C°
Relavtive Humidity
100% with condensation
Dimension
245mm height*159mm diameter
413mmwidth*369mm height*140mm thickness
OTHERS
Warranty
5 years
Optional
Available with built-in photocell
Available with alarm contacts
ORDERING CODE

For example:

OL32DA220SS, is OL32 LED Low intensity double obstruction light, 85-265VAC, red steady 32cd, service+service

OL10SD48P, is OL10 LED low intensity single obstruction light, 48VDC, red steady 10cd, with built-in photocell

OL100DA220FST, is OL100 LED Low intensity double obstruction light, 85-265VAC, red flashing>100cd, service+standby

DIMENSION
INSTALLATION
WIRING&OPERATION
SYSTEM SOLUTION SAMPLE
Detailed Images
IN OPERATION
Packing & Shipping
on site photos
Certifications
Company Information

About Us

Started 2011, REDDOT is concentrating on designing and manufacturing aviation obstruction lighting products. With six years rich experience in development, production and sales, REDDOT has grown up to a major and powerful manufacturer of aviation obstruction light in China.

Our Mission

Provide reliable and longevous products with optimal design to our customers

Our Value

•Improve continuously
•Persistent and resolute
•Keep vigorous

What we do

REDDOT focus on R&D of obstruction light and continuously invest capital on R&D and quality, to provide state-of-the-art products for our customers.

Who we serve

•Telecom
•Electricity
•Building

•Airfield/Helipad
•Wind Energy
•Oil&Gas

•Construction Machinery
•Plant
•Mining

Our Advantage

•Deep understanding of technologies that our products require, including, high-power LED&driver, photometric, heat dissipation, solar system, control and monitoring.
•Absolutely following rules & regulations in the industry we are serving. Such as ICAO, FAA, DGAC, CAA, CAP, CASA etc international and region aviation regulations; IEC and IEEE international electric standards
•Semi-automatized production line and workers with high quality, make sure exquisite process and more reliable quality
•Restrict selection and audition of materials suppliers, REDDOT tries our best to use more superior materials of well-known international brands, including OSRAM, NSC, Omron, Schneider, Weidmuller,etc, to assure our products perform better and longer lifespan.
•Restrict QA and QC on materials, semi-products and finished products.
