CTRS4CBSP control box for aviation obstruction light
Click on the image to view the original image
Product: views:5CTRS4CBSP control box for aviation obstruction light
Branch: REDDOT
Type: Control Box
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:28
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
REDDOT
Model Number:
CTRS4CBSP
Protection Level:
IP67
Type:
Control Box
External Size:
320*219*104mm
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
4pcs/carton
Port
Shanghai
Lead Time:
7-20 days depends on quantity
Product Description

CTRS4CBSP Aviation Obstruction Light Controller

RedDot controller CTRS4CBSP is used for controlling a monitoring RedDot LED low intensity and medium intensity aviation obstruction light. With the friendlier interface and easy-to-set switches for multifunction.

When any light fails, the control box will send an alarm signal to alarm device in BTS in order for maintenance staff to replace the light immediately.

Different with CTRS4, CTRS4CBSP come with DIN rail terminal blocks, circuit breaker and surge protector to protect obstruction lighting system against over-voltage and lightning strike.

A photocell is included with the control box, which can automatically switch operation mode from dusk to dawn. Mount the photocell vertically above the controller facing the polar sky(Face north polar sky in Northern Hemisphere; face south polar sky in southern Hemisphere ) with an unobstructed view.

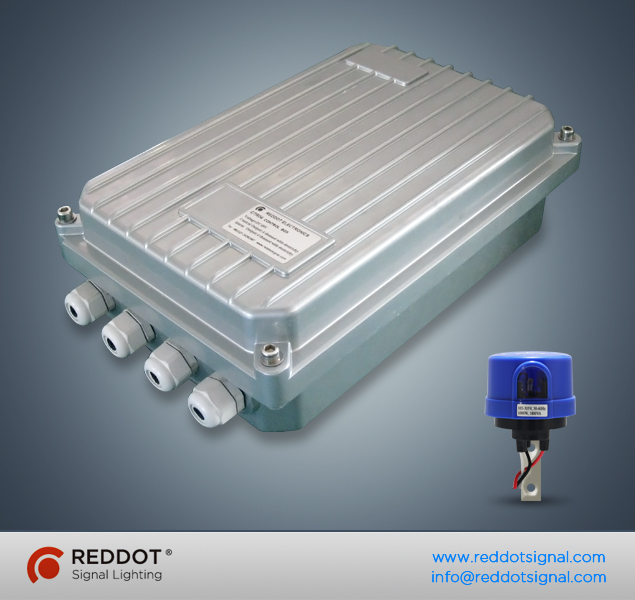

CTRS4CBSP obstruction light controller

PHC01 photocell for REDDOT controller

Features

•On/Off Main switch

•LED indicators for light, power and photocell
•Numbers of Light outputs from 1 to 4 are selectable
•Each light output can connect one medium intensity light or up to eight low intensity single lights
•One medium intensity beacon is one output
•2-8 low intensity obstruction lights are connected together in parallel as one output
•Steady/Flashing for different height levels adjustable
•Photocell Bypass (Auto/manual) for commissioning system
•Both NO and NC dry alarm contacts are available for light, power and photocell
•Circuit breaker for over-current protection
•Surge protector for voltage fluctuation and lightning strike protection
Specification
Input Voltage
85-265VAC,85-265VAC, 48VDC,24VDC,12VDC
Power Consumption
2W
Flash Rate
Steady/Flashing(20FPM)
Photocell sensitivity
200Lux
Operaton Temperature
-30C°~+60C°
Enlosure
Aluminum Alloy
Protection
IP67
Weight
4KG
Dimension
320*219*104mm
Ordering Code
Series
AC/DC
Voltage
Numbers of
lights on top
CTRS4CBSP
A
220(85-265VAC)
T1
D
48
T2
24
12

For example
• CTRS4CBSPA220T2 means Outdoor CTRS4CBSP 85-265VAC controller, two lights or one double light on top

Solution Example
Detailed Images
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
