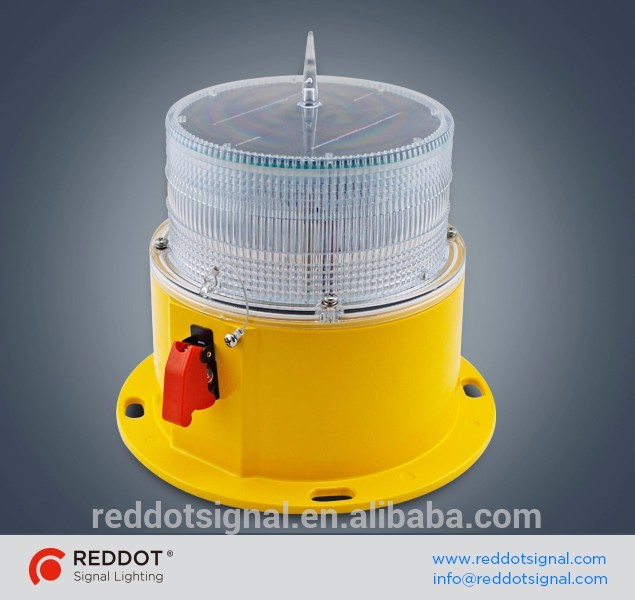

PL10 Solar Powered LED Low intensity Type A Single Aviation Warning Light
The internal solar panel on top of PL10 lens charges its battery at day, and the light will automatically start operation at night. The battery is fixed in a plastic compartment inside the aluminum base and is accessible to replace easily. With the intelligent program, PL10 solar light can continuous working more than 20 days during rainy and cloudy days. Meanwhile the NiMH battery is clear energy source without pollution.
One ON/OFF switch is on the light base. When turned to “ON” position, the light gets into “working mode”: auto-boost and shut down from dusk to dawn, charge battery and realize other functions. When the light haven’t put into use such as transportation and storing in the warehouse, switching to “OFF” position shall protect the battery from over-discharging.
PL10 LED Solar Powered Low Intensity Single Obstruction Light
PL10 single obstruction light is a compact fixture with one LED single light head with built-in photocell and battery. Generally, multiple PL10 single lights will be installed in one or more horizontal levels of a structure.
PL10D LED Solar Powered Low Intensity Double Obstruction Light
PL10 double obstruction light consists of two complete PL10 single light fixtures connected together by prewired shielded cable to synchronize flashing. When customer wants solar double light operating at steady burning, please select two solar single lights. Generally the double light could be installed on top or intermediate of structures less than 45m.
FEATURES
•Ultra-bright LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Self-contained structure without needing external cable wiring
•High-grade NiMH battery provides long lifetime
•Self-adjusting light intensity by detecting ambient environment
•Programmed AUTO-OFF if keep working for 18 hours
•GE polycarbonate dome, UV-stabilized
•Aluminum base with powder painted, corrosion-resistant
•Excellent shock and vibration resistant
SPECIFICATIONS | ||
| ||
LIGHT OUT-PUT | FLASHING | STEADY BURNING |
Intensity | 10 Candela | 6 Candela |
Nominal Night Range | >4 KM | >3 KM |
LED Color Available | Red | |
Vertical Divergence | 10 Degree | |
Horizontal Out-put | 360 Degree | |
Illumination | Ultra-bright LEDs | |
LED Lifespan | 100,000 Hours | |
| ||
OPERATION |
| |
Autonomy | 300 Hours | 100 Hours |
On & Off Level | 70/100 Lux | |
Flash Pattern | 40FPM (flash per minute) | |
| ||
POWER SUPPLY |
| |
Power Source | Solar module, mono-crystalline silicon | |
Solar Efficiency | 13.5% | |
Max. Power Out-put | 2 Watts | |
Battery Type | Lithium rechargeable battery | |
Battery Capacity | 8 AH | |
Battery Replacement | Yes, replaceable | |
| ||
MECHANICAL STRUCTURE |
| |
Lens | Polycarbonate, UV Stabilize | |
Body | Die-casting Aluminum | |
Water-proof | IP67 | |
Weight | 3.5 KG | |
Temperature Range | -40°C ~ 80°C | |
Dimensions | 250mm H, 245mm Diameter | |
| ||
Note: when the light is in storage, please put it outside to charge the battery every 3 months | ||
