Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Lamp Power(W):
- 4
- IP Rating:
- IP67
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- E27
- Light Source:
- LED
- Place of Origin:
- Shanghai, China, Shanghai, China (Mainland)
- Brand Name:
- REDDOT, REDDOT
- Model Number:
- OL32D110, OL32D
- ICAO/FAA low intensity obstruction light:
- Type B/L810
- Catagory:
- led aircraft warning light
Supply Ability
- Supply Ability:
- 1000 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- 1 piece carton: 20*40*45 / 4KG
6 piece carton: 45*45*90 / 26KG fordouble low intensity red led obstruction light/LED aircraft warning light for telecom project
- Port
- Shanghai
- Lead Time:
- 15 days for aircraft warning lights
<45m double low intensity red led obstruction light/LED aircraft warning light for telecom project
Double L810 aviation obstruction marker/<45m obstruction light for tower top
Reddot Signal"s OL32 series is typically a standard LED obstruction light designed for airway fixed obstacle marking application. It comply with ICAO regulation, low intensity, type B. Working mode is steady burning.

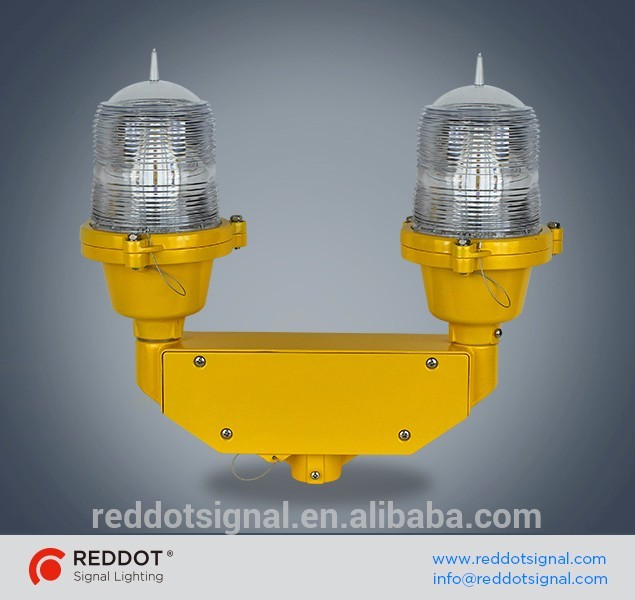

OL10 series double light Double light is integrated by 2 single lights (working + stand-by). If works with control box, it will auto-switch the “stand-by” light on when the “working” light fails, which makes sure that there is always a light working atop of the tower
OL10 series double light Double light is integrated by 2 single lights (working + stand-by). If works with control box, it will auto-switch the “stand-by” light on when the “working” light fails, which makes sure that there is always a light working atop of the tower
Functions & Features
- Special optical design provides better light distribution
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty
Specification
LIGHT OUT-PUT
Effective Intensity 32.5 Candela
Vertical Divergence -3~20 more than 32.5cd,Centering at 10
Horizontal out-put 360 Degree
LED Color Red
LED Lifespan 100,000 Hours
OPERATION
Flash Pattern Steady-burning (default)
POWER SUPPLY
Input voltage 12VDC, 24VDC, 48VDC, 110VAC, 220VAC
Frequency 50-60Hz
Power consumption 4W
MECHANICAL STRUCTURE
Lens Polycarbonate, UV Stabilize
Body Die-casting Aluminum
Water-proof IP67(when 3/4’’ mount is well sealed)
Weight 3.5kg
Temperature Range -40C~ +55C
Relative humidity 100% with condensation
Dimensions 230mm H, 245mm Diameter
Warranty 5 years
Optional Available in flashing pattern (40FPM default)
Available with built-in photo sensor
Available with built-in alarm relay
| Order codes: | |||||
| Series | Single/Double | AC/DC | Voltage | Flashing | Photo sensor |
| OL32 | S | A | 12 | F | P |
| D | D | 24 | |||
| 48 | |||||
| 110 | |||||
| 220 | |||||
| For example, L32DA220F means a double, AC power supply, 220V flashing light | |||||
