Powerline Marker/Aerial marker ball for transmission line/aircraft warning marker
Click on the image to view the original image
Product: views:6Powerline Marker/Aerial marker ball for transmission line/aircraft warning marker
Branch: Reddot, REDDOT
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China, Shanghai, China (Mainland)
Brand Name:
Reddot, REDDOT
Model Number:
OMARK, OMARK Obstruction marking sphere
Obstruction marking sphere:
red / white / orange
Category:
aircraft warning marker
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
3pcs/carton,18pcs/pallet, for aircraft warning markers
Port
Shanghai
Lead Time:
7-20 days depending on quantity for aircraft warning markers
Description

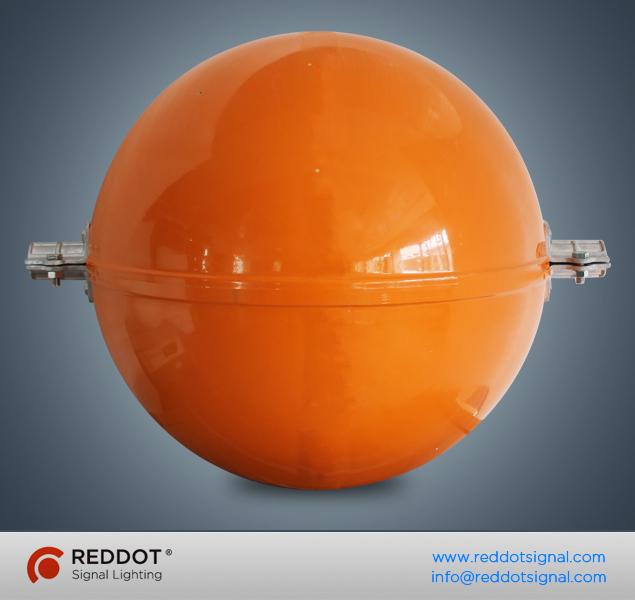

OMARK600 aircraft warning sphere for power line

Aviation obstruction marking sphere is designed to provide the daytime visual warning or nighttime visual warning if comes with reflective tape, for electricity transmission line and overhead wire for aircraft pilots, especially cross river high voltage transmission lines. RedDot OMARK power line marker ball is made of high-grade Fiberglass Reinforced Plastics(FRP), the diameter of 600mm and 800mm are available to meet different customers’ needs.

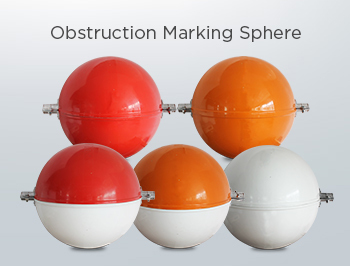

A marking sphere should be of one color such as aviation orange, white and red. Generally, the marking spheres are placed on the highest line. Where there is more than one line at the highest level, white and red, or white and orange spheres should be displayed alternately. This alternating color scheme provides the most conspicuity against all background.

Features

• Fiberglass Reinforced Polymer durable material with better weather resistant
• Super corrosion resistant character, stainless steel bolts and nuts
• Aluminum alloy cable clamp guarantees good corrosion resistance
• Various size of cable clamps are available to fit for customers’ cable conductor
• Drain holes structure can prevent accumulated rain water inside the spheres
• Stacking compatible design, save storage space and freight charge
• Optional Preformed Armor Rods provide better protection against vibration and abrasion
• Optional Reflective tape is more durable and economical solution for night visibility
• Both sphere diameters of 600mm and 800mm are available

Application

• Power transmission Line
• Overhead line
• Guyed wire for self-supported guyed tower

Compliance

• ICAO Annex 14, 4th Edition, July 2004
• FAA AC 70/7460-1K, obstruction Marking and Lighting

Specification
Visable Distance
1200 meters
Voltage Range
35KV ~ 1000KV
Conductor Diameter
6.5-55mm
Color
Orange
Red
White
Orange/White
Red/White
Material
Fiberglass Reinforced Plastics(FRP)
Cable clamp
Aluminum Alloy
Bolts/nuts/washers
SS304
Diameter
• 600mm
• 800mm
Weight
6.9KG
Thickness
3mm
Drain holes
Yes
Optional
•Preformed armor rods
•Reflective tape
• Neoprene Layer
Warranty
2 years
Ordering Code
Series
Diameter
(mm)
Color
Cable Diameter(mm)
Armor Rods
Reflective Strip
Rubber Layer
OMARK
600
O(Orange)
___.___
AR
RS
RL
800
R(Red)
W(White)
O/W(Orange/White)
R/W(Red/White)

For Example, OMARK600O13.1AR means a 600mm diameter warning sphere, orange color, with preformed armor rods, suitable for diameter 13.1mm cable conductor.
Note :
For making sure the spheres can fit for cable conductor well, customers need to provide conductor diameter, material and code.
