Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- IP Rating:
- IP67
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- E27
- Light Source:
- LED
- Place of Origin:
- Shanghai, China, Shanghai, China (Mainland)
- Brand Name:
- REDDOT, REDDOT
- Model Number:
- OL10SPR, OL10S
- ICAO/FAA low intensity obstruction light:
- ICAO low intensity, Type A
- Color:
- Red
- Input Voltage:
- 12VDC, 24VDC, 48VDC, 110VAC, 220VAC
- Life:
- 100,000hours
- Category:
- Single aviation obstacle light
Supply Ability
- Supply Ability:
- 1000 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- 1 piece carton: 20*20*30 / 1KG
8 piece carton: 40*40*60 / 9KG
12 piece carton: 40*60*60 / 15KG for Single aviation obstacle lights
- Port
- Shanghai
- Lead Time:
- 15 days for Single aviation obstacle lights

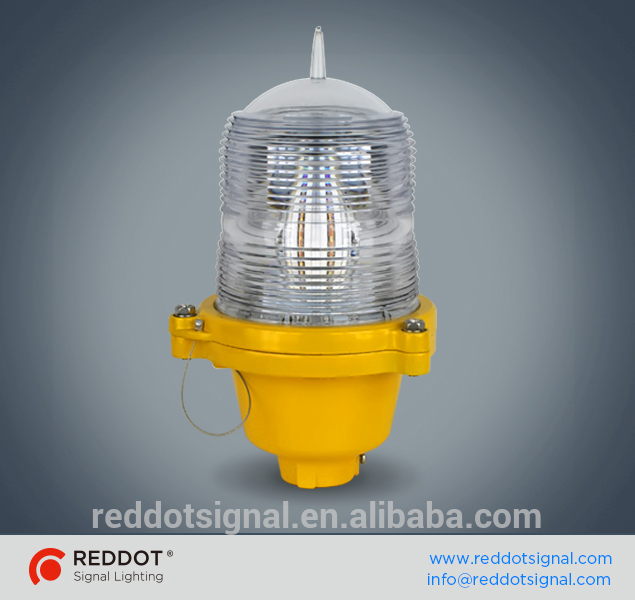

Single aviation obstacle light/low intensity LED telecom tower beacon
Low intensity LED aviation obstruction light/telecom tower light
Reddot Signal"s OL10 series is typically a standard LED obstruction light designed for airway fixed obstacle marking application. It comply with ICAO regulation, low intensity, type A. Working mode is steady burning.
OL10 series double light Double light is integrated by 2 single lights (working + stand-by). If works with control box, it will auto-switch the “stand-by” light on when the “working” light fails, which makes sure that there is always a light working atop of the tower.
OL10 series double light Double light is integrated by 2 single lights (working + stand-by). If works with control box, it will auto-switch the “stand-by” light on when the “working” light fails, which makes sure that there is always a light working atop of the tower.
Functions & Features
- Special optical design provides better light distribution
- LED light source esures long lifetime, maintenancefree
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty
- Special optical design provides better light distribution
- LED light source esures long lifetime, maintenancefree
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty
| SPECIFICATIONS | |
| LIGHT OUT-PUT | |
| Effective Intensity | 10 Candela |
| Vertical Divergence | 6°~10° more than 10cd Centering at 8° |
| Horizontal out-put | 360 Degree |
| LED Color | Red |
| LED Lifespan | 100,000 Hours |
| OPERATION | |
| Flash Pattern | Steady-burning |
| POWER SUPPLY | |
| Input voltage | 12VDC, 24VDC, 48VDC, 110VAC, 220VAC |
| Frequency | 50Hz ~ 60Hz |
| Power consumption | |
| MECHANICAL STRUCTURE | |
| Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Water-proof | IP65 |
| Weight | 1.0 KG |
| Temperature Range | -40°C ~ +55°C |
| Relative humidity | 100% with condensation |
| Dimensions | 230mm H, 245mm Diameter |
| Warranty | 5 years |
| Optional | Available in flashing pattern (40FPM default) Available with built-in photo sensor |
| Order codes: | |||||
| Series | Single/Double | AC/DC | Voltage | Flashing | Photo sensor |
| OL10 | S | A | 12 | F | P |
| D | D | 24 | |||
| 48 | |||||
| 110 | |||||
| 220 | |||||
| For example, L10SD24 means a single, DC power supply, 24V steady-burning light | |||||
