- Color Temperature(CCT):
- COOL WHITE
- IP Rating:
- IP68
- Input Voltage(V):
- 3.6
- Lamp Luminous Efficiency(lm/w):
- 100
- Lamp Luminous Flux(lm):
- 100
- Lamp Power(W):
- 1
- CRI (Ra):
- 85
- Place of Origin:
- Shanghai, China
- Model Number:
- PL10
- Type:
- Lanterns
- Power Source:
- Rechargeable Battery
- Battery Type:
- Ni-Mh
- Brand Name:
- REDDOT, REDDOT
- Certification:
- ce, EMC, LVD
- Usage:
- Industrial
- Light Source:
- LED
- Range:
- 2-3NM
- Color:
- Red,Green,Yellow,White,Blue
- Lighting Period (h):
- >12
- Supply Ability:
- 800 Set/Sets per Month
- Packaging Details
- 4pcs/carton
- Port
- Shanghai
- Lead Time:
- 7-20 days depends on request

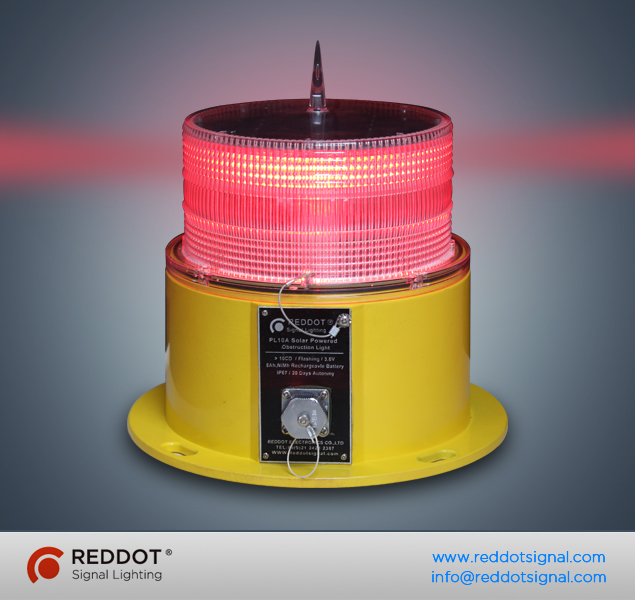

PL10 Solar Self-contained Marine Lantern/Solar Powered Navigation light
The solar panel comes with PL10 provides power supply to the light, which makes PL10 a self-contained and care-free light unit. Also, with the solar function, the light is easy to deploy to almost any condition and any emergency case. Robust body built and surface coating provides good protection against hash environments.
PL10 is equipped with an 8Ah NiMH rechargeable battery which could power the light up to 20 days when the weather is cloudy & rainy. NiMH battery is also a clean power source with no pollution. The NiMH battery is also easy to find almost anywhere.
Major Features
-Ultra-light LEDs, energy saving
-Self-contained without outside power supply
-Visible range 2-3BM
-Once fully charged, it can work for up to 200 hours
-Auto-off after being packed for 18 hours
-256 flash patterns
Typical Applications
-High-rise building marking
-Telecom tower marking
-Road obstruction marking
-Navigation aid
-Port, dock entrance & walkway
-Buoy marking
-Offshore gas & oil platform.
SPECIFICATIONS | ||
| ||
LIGHT OUT-PUT | FLASHING | STEADY BURNING |
Intensity | 10 Candela | 6 Candela |
Nominal Night Range | >4 KM | >3 KM |
LED Color Available | Red,green,yellow,white,blue | |
Vertical Divergence | 10 Degree | |
Horizontal Out-put | 360 Degree | |
Illumination | Ultra-bright LEDs | |
LED Lifespan | 100,000 Hours | |
| ||
OPERATION |
| |
Autonomy | 300 Hours | 100 Hours |
On & Off Level | 70/100 Lux | |
Flash Pattern | 256 flash patterns | |
| ||
POWER SUPPLY |
| |
Power Source | Solar module, mono-crystalline silicon | |
Solar Efficiency | 13.5% | |
Max. Power Out-put | 2 Watts | |
Battery Type | Lithium rechargeable battery | |
Battery Capacity | 8 AH | |
Battery Replacement | Yes, replaceable | |
| ||
MECHANICAL STRUCTURE |
| |
Lens | Polycarbonate, UV Stabilize | |
Body | Die-casting Aluminum | |
Water-proof | IP68 | |
Weight | 3.5 KG | |
Temperature Range | -40°C ~ 80°C | |
Dimensions | 250mm H, 245mm Diameter | |
| ||
Note: when the light is in storage, please put it outside to charge the battery every 3 months | ||
