Aviation obstruction light control box/controller/navigation light cabinet
Click on the image to view the original image
Product: views:6Aviation obstruction light control box/controller/navigation light cabinet
Branch: REDDOT
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
REDDOT
Model Number:
CTRS4A220D48
Purpose:
Control obstruction light
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
2pcs/carton
Port
Shanghai
Lead Time:
7-20 days depends on quantity
Product Description

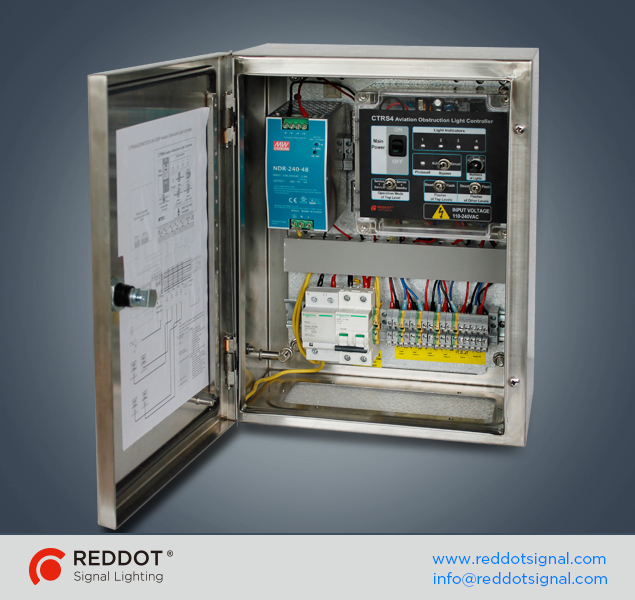

CTRS4CBSPA220D48 Aviation Obstruction Light Controller

RedDot controller CTRS4A220D48 is used for controlling a monitoring RedDot LED low intensity and medium intensity aviation obstruction light. With the friendlier interface and easy-to-set switches for multifunction. With DIN rail terminal blocks, this controller comes with circuit breaker and surge protector to protect obstruction lighting system against over-voltage and lightning strike.

Built-in power converter, the controller converts input voltage 110-240VAC to 48VDC output voltage for power on 48VDC obstruction lights. Inside power converter power consumption loading can be customized to suit various obstruction lighting system.

Features

• On/Off Main switch

• LED indicators for light, power and photocell
• Numbers of Light outputs from 1 to 4 are selectable
• Each light output can connect one medium intensity light or up to four low intensity single lights
• One medium intensity beacon is one output
• 2-4 low intensity obstruction lights are connected together in parallel as one output
• Steady/Flashing for different height levels adjustable
• Photocell Bypass (Auto/manual) for commissioning system
• Both NO and NC dry alarm contacts are available for light, power and photocell
• Built-in power converter to converter AC input voltage to 48VDC output for lights
• Power consumption loading can be customized according to different system
• Circuit breaker for over-current protection
• Surge protector for voltage fluctuation and lightning strike protection
Specifications
Specification
Input Voltage
85-265VAC,50-60Hz
Output Voltage
48VDC
Flash Rate
Steady/Flashing(20FPM)
Photocell sensitivity
200Lux
Operaton Temperature
-30C°~+60C°
Enlosure
SS304
Protection
IP65
Weight
7KG
Dimension
400*300*150mm
Ordering Code
Control Module
Circuit Breaker
Surge Protector
AC input
(85-265VAC)
48VDC Output
Converter
watts

CTRS4
CB
SP
A220
D48
15
25
40
75
120
240
480

For example:

CTRS4CBSPA220D48-240, means a outdoor controller, 85-265VAC input, 48VDC output, with circuit breaker and surge protector, with 240W power converter.

Note:

Circuit breaker rated current depends on total loading current of the lighting system. REDDOT will deploy suitable circuit breaker according to customer’s system.

Power converter watts depends on total loading watts of the lighting system. Other watts power converters out of above ordering code, REDDOT will deploy suitable circuit breaker according to customer’s system.

Solution Example
Detailed Images
Detailed Images
Packing&Delivery
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
Contact Us
Our Customer
On Site Pictures
Company Information

About Us

Started 2011, REDDOT is concentrating on designing and manufacturing aviation obstruction lighting products. With six years rich experience in development, production and sales, REDDOT has grown up to a major and powerful manufacturer of aviation obstruction light in China.

Our Mission

Provide reliable and longevous products with optimal design to our customers

Our Value

•Improve continuously
•Persistent and resolute
•Keep vigorous

What we do

REDDOT focus on R&D of obstruction light and continuously invest capital on R&D and quality, to provide state-of-the-art products for our customers.

Who we serve

•Telecom
•Electricity
•Building

•Airfield/Helipad
•Wind Energy
•Oil&Gas

•Construction Machinery
•Plant
•Mining

Our Advantage

•Deep understanding of technologies that our products require, including, high-power LED&driver, photometric, heat dissipation, solar system, control and monitoring.
•Absolutely following rules & regulations in the industry we are serving. Such as ICAO, FAA, DGAC, CAA, CAP, CASA etc international and region aviation regulations; IEC and IEEE international electric standards
•Semi-automatized production line and workers with high quality, make sure exquisite process and more reliable quality
•Restrict selection and audition of materials suppliers, REDDOT tries our best to use more superior materials of well-known international brands, including OSRAM, NSC, Omron, Schneider, Weidmuller,etc, to assure our products perform better and longer lifespan.
•Restrict QA and QC on materials, semi-products and finished products.
