- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 12VDC
- Lamp Power(W):
- 2
- Color Temperature(CCT):
- red
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- Other
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- REDDOT
- Model Number:
- OLS10S
- Standard1:
- ICAO low intensity Type A
- Color:
- Red
- Input Voltage:
- 12v
- Category:
- solar aviation obstacle light
- Supply Ability:
- 300 Set/Sets per Month
- Packaging Details
- 1pcs/carton for aviation obstacle lights
- Port
- Shanghai
- Lead Time:
- 7-20 days for aviation obstacle lights

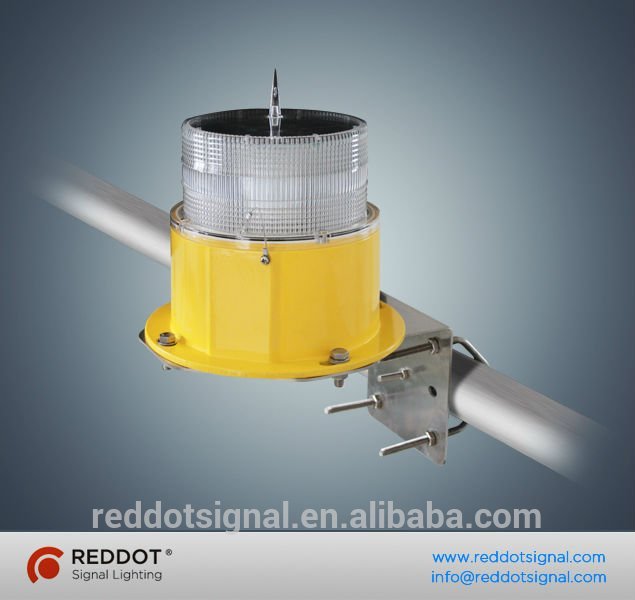

Low intensity solar powered aviation obstacle light/low intensity aircraft obstruction light

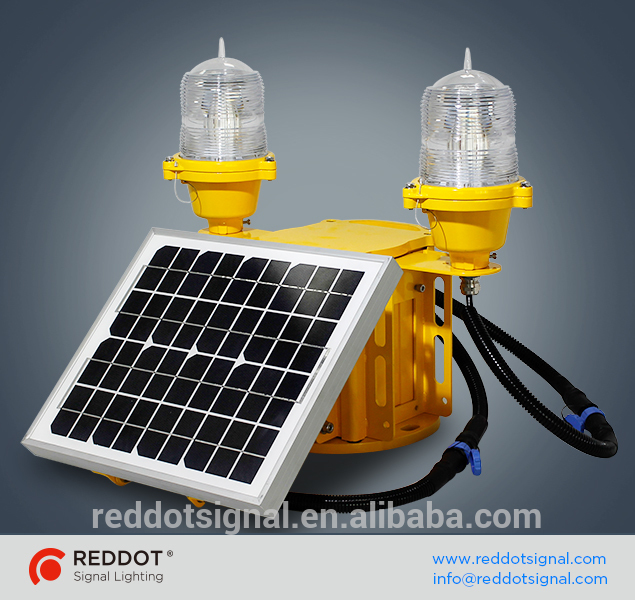

OLS32S solar powered obstruction light
OLS32 series is solar powered obstruction light. Solar function make it a self-contained and alomst care-free
light unit. The light system is composed of 3 parts, light, battery box and solar panel. When the light and solar panel connected to the battery box, the whole system can be mounted on a tower. Both vertical mounting and horizontal
mounting are ok. OLS32 is equipped with a 20Ah VRLA (volve regulated lead acid) rechargeable battery which could power the light up to 5 days when the weather is cloudy & rainy. The 20Ah VRLA battery is also easy to find almost anywhere. Both single light & double light are available in this series.
Features
• Green enegy
• Ultra-light LEDs, energy saving
• Self-contained without outside power supply
• Maximum visibility distance 4 KM
• Once fully charged, it can work for up to 60 hours
• Cable cost saving & cabling job saving
• No wiring job, nice & easy installation
Applications
• Telecomm tower
• Radio tower
• Wind turbine
• Somke stacks &chimney
• Tall building
• Power transmission line
SPECIFICATIONS | ||
| ||
LIGHT OUT-PUT |
| |
Intensity | 32 Candela |
|
Nominal Night Range | >4 KM |
|
LED Color Available | Red | |
Vertical Divergence | 10 Degree | |
Horizontal Out-put | 360 Degree | |
Illumination | Ultra-bright LEDs | |
LED Lifespan | 100,000 Hours | |
| ||
OPERATION |
| |
Autonomy | 300 Hours |
|
On & Off Level | 70/100 Lux | |
Flash Pattern | Steady burning | |
| ||
POWER SUPPLY |
| |
Power Source | Solar module, mono-crystalline silicon | |
Solar Efficiency | 13.5% | |
Max. Power Out-put | 17.5v/30w | |
Battery Type | VRLA
| |
Battery Capacity | 12v/20 AH | |
Battery Replacement | Yes, replaceable | |
| ||
MECHANICAL STRUCTURE |
| |
Lens | Polycarbonate, UV Stabilize | |
Body | Die-casting Aluminum | |
Water-proof | IP67 | |
Weight | 11 KG | |
Temperature Range | -40°C ~ 60°C | |
Battery box Dimensions | 352*204*650 | |
| Solar module | 600*410*28 | |
| warranty | 5 years for light body | |
| 10 years for solar panel | ||
| 2 year for battery | ||
| ||
Note: when the light is in storage, please put it outside to charge the battery every 3 months | ||
