Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 12VDC, 24VDC, 48VDC; 85-265VAC, 50/60Hz
- Lamp Power(W):
- 4
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Light Source:
- LED
- Place of Origin:
- Shanghai, China, Shanghai, China (Mainland)
- Brand Name:
- REDDOT, REDDOT
- Model Number:
- OL32, OL32
- ICAO/FAA low intensity obstruction light:
- Type B/L810
- Color:
- Red
- Input Voltage:
- 12VDC, 24VDC, 48VDC, 110VAC, 220VAC
- Life:
- 100,000hours
- Category:
- single aviation obstruction light
Supply Ability
- Supply Ability:
- 800 Set/Sets per Month ...
Packaging & Delivery
- Packaging Details
- 1 piece carton: 20*20*30 / 1KG
12 piece carton: 40*60*60 / 15KG forsingle aviation obstruction lights
- Port
- Shanghai
- Lead Time:
- 15 days forsingle aviation obstruction lights

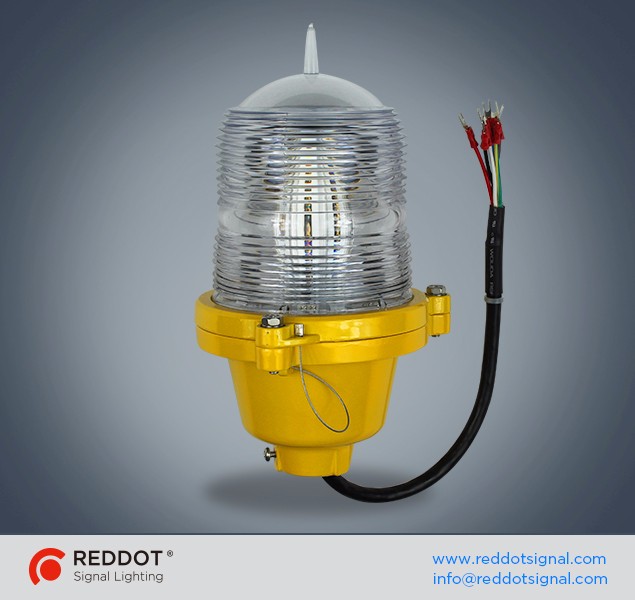

OL32 LED based low intensity single aviation obstruction light
OL32 LED low intensity aviation obstruction light/L810 single obstruction light
Reddot Signal"s OL32 series is a 32cd (candela) LED light designed for airway fixed obstacle marking application. It comply with ICAO & FAA regulation. It shares the same mechanical design with OL10, but comes with more LED.
OL32 series double light.
Double light is integrated by 2 single lights (working + stand-by). If works with control box, it will auto-switch the “stand-by” light on when the “working” light fails, which makes sure that there is always a light working atop of the tower.
Functions & Features
- Special optical design provides better light distribution
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty.
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty.
| SPECIFICATIONS | |
| LIGHT OUT-PUT | |
| Effective Intensity | 32 Candela |
| Vertical Divergence | -3°~20° more than 32.5cd Centering at 10° |
| Horizontal out-put | 360 Degree |
| LED Color | Red |
| LED Lifespan | 100,000 Hours |
| OPERATION | |
| Flash Pattern | Steady-burning |
| POWER SUPPLY | |
| Input voltage | 12VDC, 24VDC, 48VDC, 110VAC, 220VAC |
| Frequency | 50Hz ~ 60Hz |
| Power consumption | |
| MECHANICAL STRUCTURE | |
| Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Water-proof | IP65 |
| Weight | 1.0 KG |
| Temperature Range | -40°C ~ +55°C |
| Relative humidity | Up to 95% |
| Dimensions | 230mm H, 245mm Diameter |
| Warranty | 5 years |
| Optional | Available in flashing pattern (40FPM default) Available with built-in photo sensor |
| Order codes: | |||||
| Series | Single/Double | AC/DC | Voltage | Flashing | Photo sensor |
| OL32 | S | A | 12 | F | P |
| D | D | 24 | |||
| 48 | |||||
| 110 | |||||
| 220 | |||||
| For example, L32DA220F means a double, AC power supply, 220V flashing light | |||||
