OL321D3SIP low intensity LED aviation light system for tower
Click on the image to view the original image
Product： views：6OL321D3SIP low intensity LED aviation light system for tower
Branch： REDDOT, REDDOT
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC;48VDC;24VDC;12VDC
Lamp Power(W):
4
Lamp Luminous Flux(lm):
190
Lamp Luminous Efficiency(lm/w):
47.5
CRI (Ra):
85
Color Temperature(CCT):
Other
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Shanghai, China, Shanghai, China (Mainland)
Brand Name:
REDDOT, REDDOT
Model Number:
OL321D3SIP
International standard:
ICAO low intensity Type B/FAA L-810
Intensity:
>32.5cd
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 carton/systemfor OL321D3SIP low intensity LED aviation light system for tower
Port
Shanghai
Lead Time:
7-20 days depends on quantity, for OL321D3SIP low intensity LED
Description

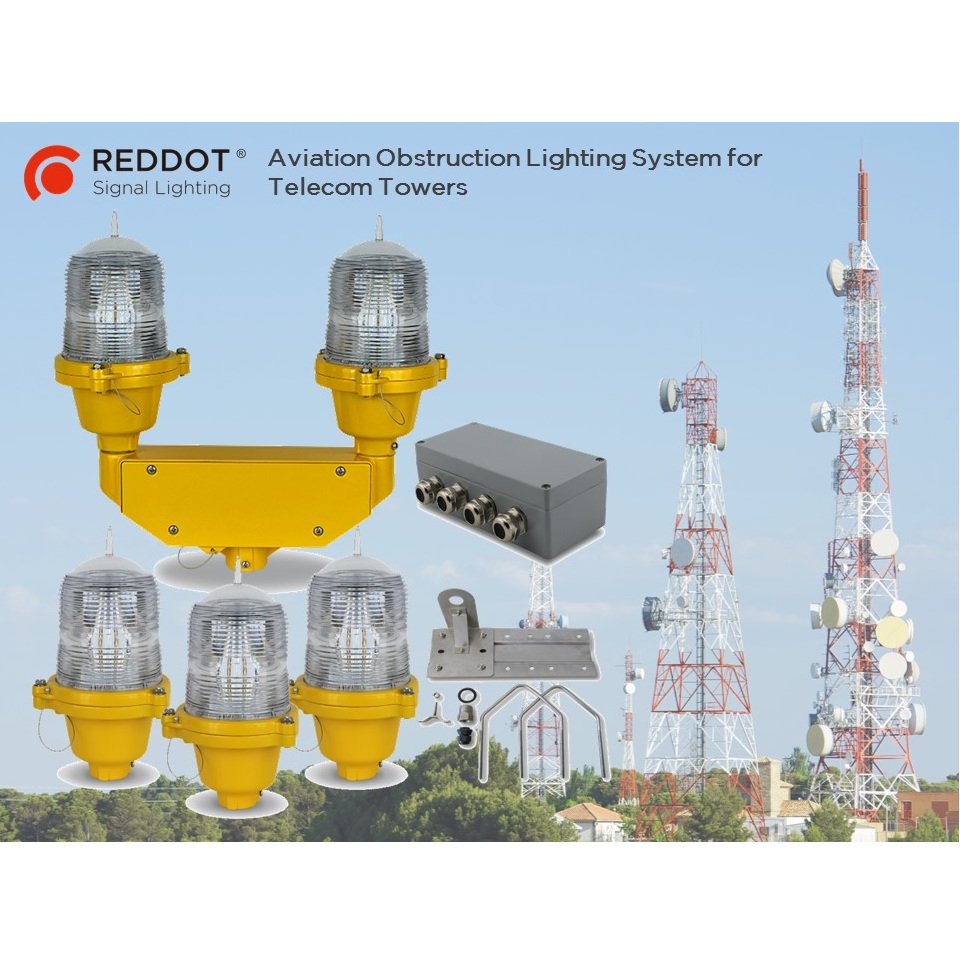

OL321D3S_C 1 LI double and 3 LI single obstruction light system for 45-90m tower


OL321D3SIP low intensity LED aviation light system for tower

• One OL32D low intensity double light on top of tower, “Service+Standby” or “Service+Service” upon customer’s request

• 3 OL32S low intensity single light on middle of tower
• All lights on tower are integrated into a junction box on middle
• All lights with built-in photocell which can auto turn on/off from dusk to dawn
• Cable conductor size depends on service voltage, the total load demand and the length of the wire.
Products

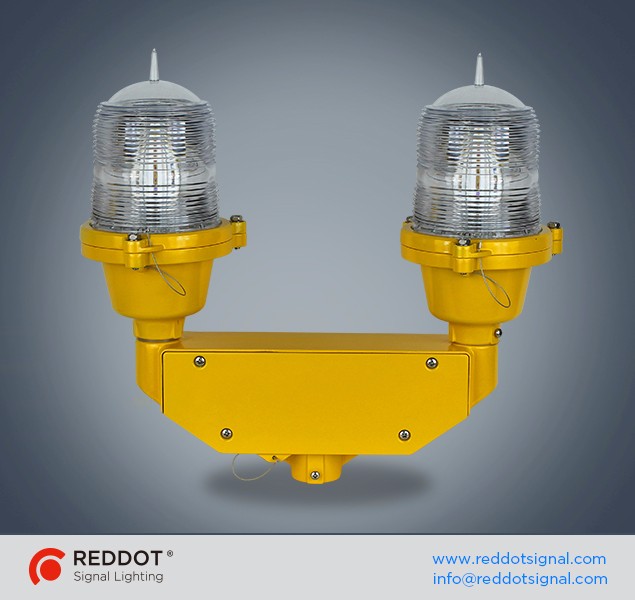

OL32 LED low intensity double obstruction light, ICAO low intensity type B, red steady or flashing>32.5cd

OL32 LED low intensity single obstruction light, ICAO low intensity type B, red steady or flashing>32.5cd

Application
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
On Site Pictures
Contact Us
Our Customer
Company Information

About Us

Started 2011, REDDOT is concentrating on designing and manufacturing aviation obstruction lighting products. With six years rich experience in development, production and sales, REDDOT has grown up to a major and powerful manufacturer of aviation obstruction light in China.

Our Mission

Provide reliable and longevous products with optimal design to our customers

Our Value

•Improve continuously
•Persistent and resolute
•Keep vigorous

What we do

REDDOT focus on R&D of obstruction light and continuously invest capital on R&D and quality, to provide state-of-the-art products for our customers.

Who we serve

•Telecom
•Electricity
•Building

•Airfield/Helipad
•Wind Energy
•Oil&Gas

•Construction Machinery
•Plant
•Mining

Our Advantage

•Deep understanding of technologies that our products require, including, high-power LED&driver, photometric, heat dissipation, solar system, control and monitoring.
•Absolutely following rules & regulations in the industry we are serving. Such as ICAO, FAA, DGAC, CAA, CAP, CASA etc international and region aviation regulations; IEC and IEEE international electric standards
•Semi-automatized production line and workers with high quality, make sure exquisite process and more reliable quality
•Restrict selection and audition of materials suppliers, REDDOT tries our best to use more superior materials of well-known international brands, including OSRAM, NSC, Omron, Schneider, Weidmuller,etc, to assure our products perform better and longer lifespan.
•Restrict QA and QC on materials, semi-products and finished products.
