OL321D3SXP Low intensity dual obstruction light/double sidelight beacon system
Click on the image to view the original image
Product： views：6OL321D3SXP Low intensity dual obstruction light/double sidelight beacon system
Branch： REDDOT, REDDOT
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC;48VDC;24VDC;12VDC
Lamp Power(W):
4
Lamp Luminous Flux(lm):
200
Lamp Luminous Efficiency(lm/w):
50
CRI (Ra):
85
Color Temperature(CCT):
red
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Shanghai, China, Shanghai, China (Mainland)
Brand Name:
REDDOT, REDDOT
Model Number:
OL321D3SXP
ICAO/FAA low intensity obstruction light:
Type B/L810
System:
OL32 1xdouble+3xsingle+photocell
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 system/carton
Port
Shanghai
Lead Time:
7-20 days
Description

OL321D3SXP 1 LI double and 3 LI single obstruction light system for 45-90m tower

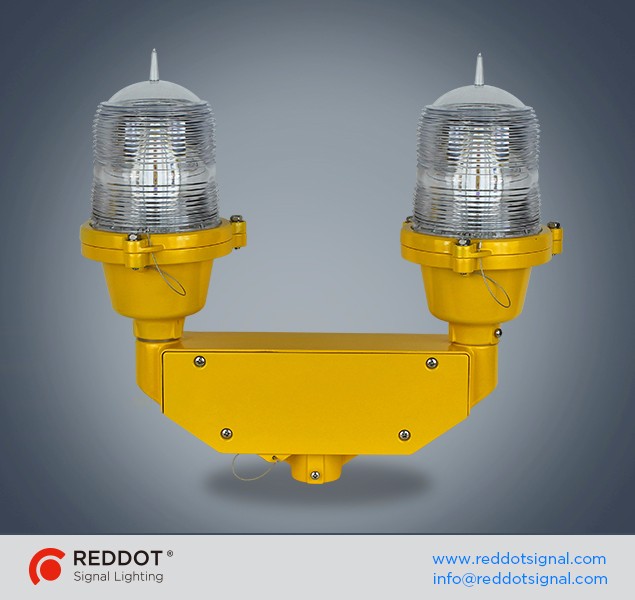

• One OL32D low intensity double light on top of tower, “Service+Standby” or “Service+Service” upon customer’s request
• 3 OL32S low intensity single light on middle of tower
• All lights on tower are integrated into a junction box on middle

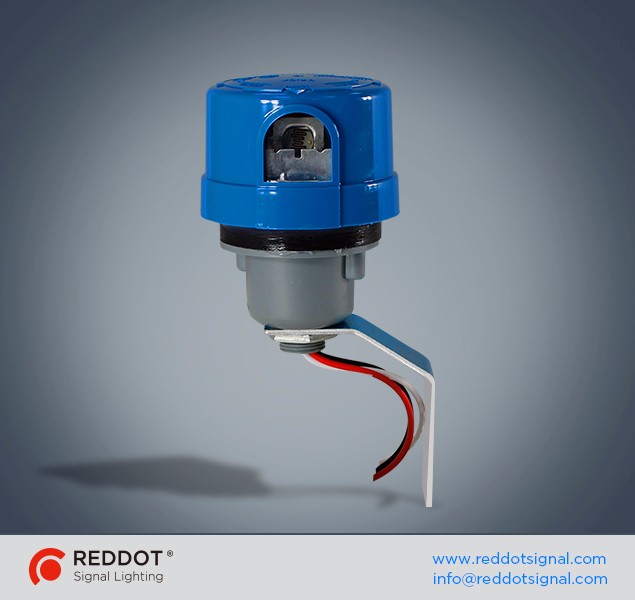

• One photocell is on the ground to control the system auto turn on/off from dusk to dawn
• Cable conductor size depends on service voltage, the total load demand and the length of the wire.

Products

OL32 LED low intensity double obstruction light, ICAO low intensity type B, red steady or flashing>32.5cd

OL32 LED low intensity single obstruction light, ICAO low intensity type B, red steady or flashing>32.5cd

Application
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
