Steady burning red single aviation obstruction light/low intensity LED aircraft warning light/telecom tower light
OL10 LED LOW INTENSITY AVIATION OBSTRUCTION LIGHT/AIRCRAFT WARNING LIGHT

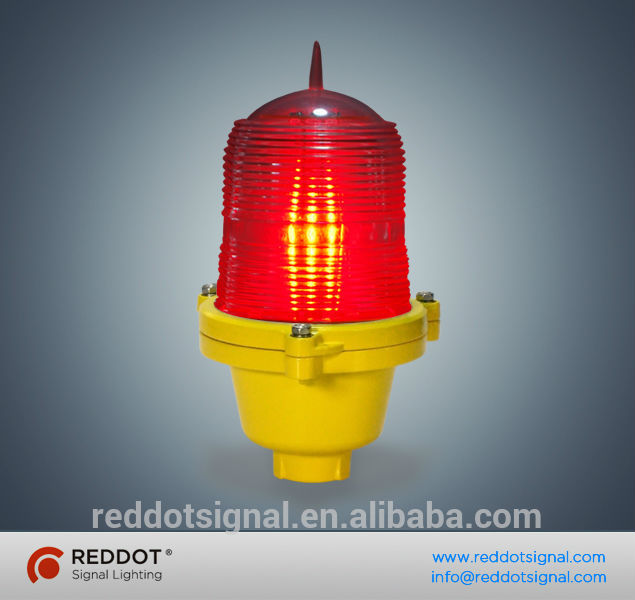

OL10 LED Low Intensity Single Obstruction Light

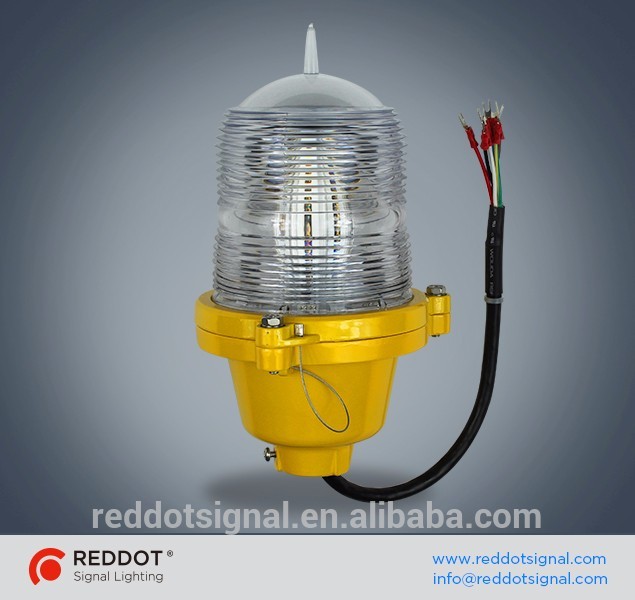

OL10 single obstruction light is a compact fixture with a single LED light head. With 25cm prewired cable, customers shall do the wiring job easier without opening the light head. Generally, multiple OL10 single lights will be installed in one or more horizontal levels of a structure.
OL10 LED Low Intensity Double Obstruction Light
OL10 double obstruction light is a complete double light fixture with two OL10 single lights and a compartment for control board. OL10 double light has two operation mode “Service+Standby” and “Service+Service”. Generally the double light could be installed on top or intermediate of a structure.
• Service+Service: Two single lights work simultaneously. Either failure will not affect the other normal working.
• Service+Standby: Only “Service light” is working normally. It will auto-transfer to Standby light in case of “Service light” failure.
FEATURES
•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Internal LED driver and constant current regulator make the light illuminate steadily
•Encapsulated and sealed power module provides more reliability and better protection
•Extremely low power consumption
•Excellent shock and vibration resistant
•GE polycarbonate dome, UV-stabilized
•Aluminum base with powder painted, corrosion-resistant
•G3/4 threaded bottom entry for easy mounting
•Prewired cable makes wiring job easier
•Available in both single and double type
| SPECIFICATIONS | |
| LIGHT OUT-PUT | |
| Effective Intensity | 10 Candela |
| Vertical Divergence | 6°~10° more than 10cd Centering at 8° |
| Horizontal out-put | 360 Degree |
| LED Color | Red |
| LED Lifespan | 100,000 Hours |
| OPERATION | |
| Flash Pattern | Steady-burning |
| POWER SUPPLY | |
| Input voltage | 12VDC, 24VDC, 48VDC, 110VAC, 220VAC |
| Frequency | 50Hz ~ 60Hz |
| Power consumption | 2W |
| MECHANICAL STRUCTURE | |
| Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Water-proof | IP65 |
| Weight | 1.0 KG |
| Temperature Range | -40°C ~ +55°C |
| Relative humidity | 100% with condensation |
| Dimensions | 230mm H, 245mm Diameter |
| Warranty | 5 years |
| Optional | Available in flashing pattern (40FPM default) Available with built-in photo sensor |
| Order codes: | |||||
| Series | Single/Double | AC/DC | Voltage | Flashing | Photo sensor |
| OL10 | S | A | 12 | F | P |
| D | D | 24 | |||
| 48 | |||||
| 110 | |||||
| 220 | |||||
| For example, L10SD24 means a single, DC power supply, 24V steady-burning light | |||||
