Home > Products > LED FAA L864 ICAO Medium Intensity Aerodrome Aviation Obstruction beacon Light for chimney

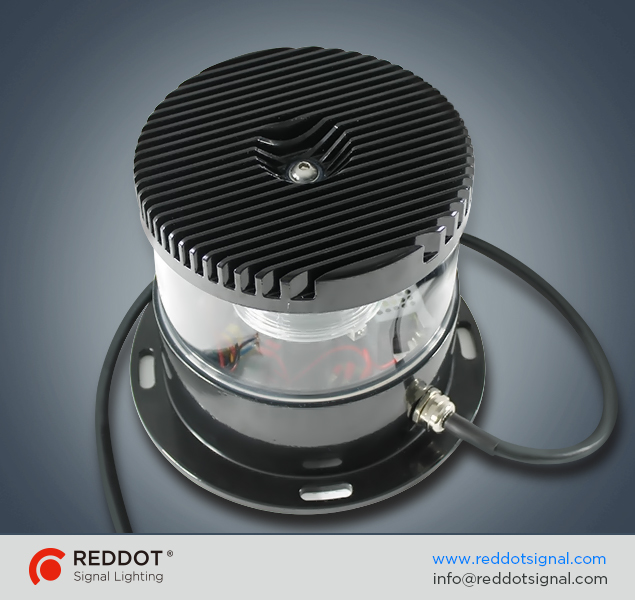

LED FAA L864 ICAO Medium Intensity Aerodrome Aviation Obstruction beacon Light for chimney
Click on the image to view the original image
Product: views:5LED FAA L864 ICAO Medium Intensity Aerodrome Aviation Obstruction beacon Light for chimney
Branch: REDDOT
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC;48/24/12VDC
Lamp Power(W):
40
Lamp Luminous Flux(lm):
6600
Lamp Luminous Efficiency(lm/w):
165
CRI (Ra):
85
Color Temperature(CCT):
Other
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
REDDOT
Model Number:
F864
ICAO Standard:
ICAO medium intensity type B & type C Annex 14, 4th Edition, July 2004
FAA Standard:
FAA L864,AC No. 150/5345-43F,2006
Category:
Medium intensity obstruction light
FAA:
FAA L864 beacon light
ICAO:
ICAO medium intensity beacon light
Category1:
aircraft warning light
Category2:
aviation obstacle light
Category3:
ICAO medium intensity type B
Category4:
ICAO medium intensity type C
Category5:
Aerodrome Obstruction Lighting
Supply Ability
Supply Ability:
100 Piece/Pieces per Month ICAO Medium Intensity type B
Packaging & Delivery
Packaging Details
2pcs/CARTONS L-864 beacon
Port
SHANGHAI
Lead Time:
15-25DAYS
Product Description

LED FAA L864 ICAO Medium Intensity Aerodrome Aviation Obstruction beacon Light

F864 is a red LED medium intensity obstruction light, generally used on tall structures more than 45 meters.

The optical part of F864 medium intensity obstruction light is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angle to meet ICAO and FAA red medium intensity light.

F864 red medium intensity LED obstruction light can work either with REDDOT controller for external controlling and monitoring or come with a self-controlled configuration to work independently as an economical solution.

FEATURES

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution for complying ICAO medium intensity type B&C and FAA L-864
• Aluminum heatsink provides excellent thermal dissipation performance
•Aluminum base with powder painted provides good weather and corrosion resistant
• Excellent shock and vibration resistant
• Longer lifetime expectancy, almost maintenance free
• Lower voltage (than xenon) makes it safer for installer
•Internal LED driver and constant current regulator make the light illuminate steadily
•Built-in 20KA surge protector module to protect the light from induction lightning strike
•Prewired cable makes wiring job easier

APPLICATIONS
COMPLIANCE
SPECIFICATION
LIGHT OUTPUT
Effective Intensity
2000 candela+25%
Vertical Divergence
3 Degree
Horizontal Spread
360 Degree
LED Brand
High grade OSRAM LEDs(Made in Germany)
LED Color
Red
LED Lifespan
100,000 Hours
OPERATION
Flash Pattern
Steady Burning(Type C)
Flashing(TypeB)
POWER SUPPLY
Input Voltage
85VAC-265VAC,50-60HZ; 48VDC;24VDC;12VDC
Power Consumption
40W
MECHANICAL STRUCTURE
Lens
Polycarbonate, UV Stabilize
Body
Die-casting Aluminum
Protection
IP67
Net Weight
7KG
Temperature Range
-40°C ~ +55°C
Relative humidity
100% with condensation
Dimension
215mm Height,258mm Diameter
Others
Warranty
5 years
Optional
Available with built-in photo sensor
Available with alarm contacts
Available with 20KA surge protector
Available with GPS synchronization
Available with Zigbee wireless monitoring
Available with GPRS cell phone monitoring
ORDERING CODE

For Example, F864A220B-SP-GPS, means F864 LED medium intensity obstruction light, 85-265VAC, red flashing2000cd+25%, with 20KA surge protector, with GPS synchronization module.

DIMENSION
INSTALLATION
WIRING&OPERATION
System Solution Sample
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
