Solar Powered LED Low intensity Aviation obstruction Light/obstacle light for towers
Click on the image to view the original image
Product: views:3Solar Powered LED Low intensity Aviation obstruction Light/obstacle light for towers
Branch: REDDOT, REDDOT
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
4
Lamp Power(W):
1
Lamp Luminous Flux(lm):
95
Lamp Luminous Efficiency(lm/w):
95
CRI (Ra):
80
Color Temperature(CCT):
red,green,white,yellow,blue
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
red,green,white,yellow,blue
Lamp Body Material:
Aluminum Alloy
Base Type:
LED
Light Source:
LED
Place of Origin:
Shanghai, China
Brand Name:
REDDOT, REDDOT
Model Number:
PL10, PL10
Products name:
Solar obstruction light
Intensity:
>10cd
International standard:
ICAO(Aerodromes Annex 14)low Intensity Light TYPE-A
Category:
solar aviation obstruction light
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
4pcs/carton for PL10 solar aviation obstruction light
Port
Shanghai
Lead Time:
15 days or depends on quantity of aviation obstruction light
Product Description

PL10 LED SOLAR POWERED LOW INTENSITY AVIATION OBSTRUCTION LIGHT

PL10 is a self-contained solar obstruction light, equipped with 1.8W high-efficiency solar panel and 8Ah NiMH battery. Robust aluminum body with powder coating provides excellent protection against harsh environments.

The internal solar panel on top of PL10 lens charges its battery at day, and the light will automatically start operation at night. The battery is fixed in a plastic compartment inside the aluminum base and is accessible to replace easily. With the intelligent program, PL10 solar light can continuous working more than 20 days during rainy and cloudy days. Meanwhile the NiMH battery is clear energy source without pollution.

One ON/OFF switch is on the light base. When turned to “ON” position, the light gets into “working mode”: auto-boost and shut down from dusk to dawn, charge battery and realize other functions. When the light haven’t put into use such as transportation and storing in the warehouse, switching to “OFF” position shall protect the battery from over-discharging.

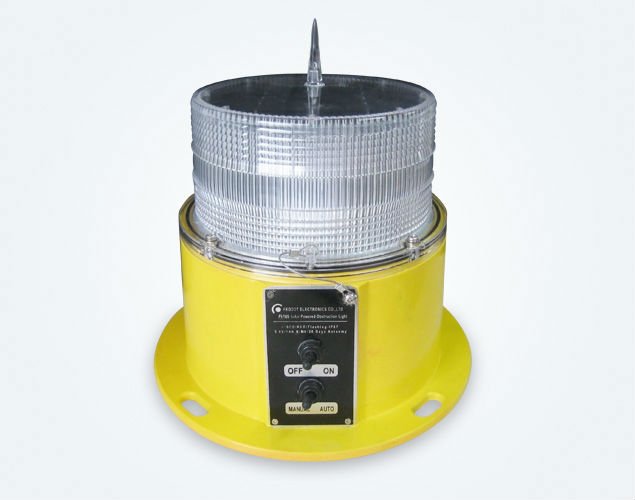

PL10 LED Solar Powered Low Intensity Single Obstruction Light

PL10 single obstruction light is a compact fixture with one LED single light head with built-in photocell and battery. Generally, multiple PL10 single lights will be installed in one or more horizontal levels of a structure.

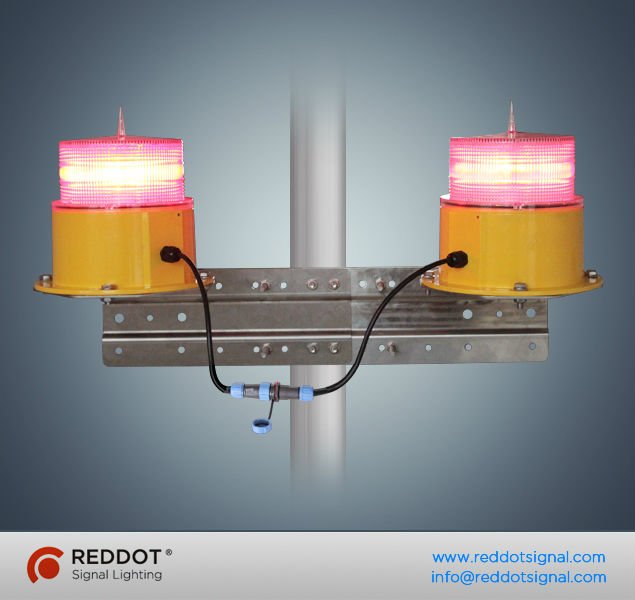

PL10D LED Solar Powered Low Intensity Double Obstruction Light

PL10 double obstruction light consists of two complete PL10 single light fixtures connected together by prewired shielded cable to synchronize flashing. When customer wants solar double light operating at steady burning, please select two solar single lights. Generally the double light could be installed on top or intermediate of structures less than 45m.

FEATURES

•Ultra-bright LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Self-contained structure without needing external cable wiring
•High-grade NiMH battery provides long lifetime
•Self-adjusting light intensity by detecting ambient environment
•Programmed AUTO-OFF if keep working for 18 hours
•GE polycarbonate dome, UV-stabilized
•Aluminum base with powder painted, corrosion-resistant
•Excellent shock and vibration resistant

APPLICATIONS
COMPLIANCE
SPECIFICATION
ORDERING CODE

For example:
PL10SF, means a solar single obstruction light, red flashing>10cd
PL10D-ZB, means solar double light, red flashing>10cd, synchronizing flashing, with Zigbee monitoring module
Note:
If select the light with wireless alarm monitoring option, the customer also need to buy REDDOT wireless controller
When the light is in storage, please put it outside to charge the battery every 3 months.

DIMENSION
INSTALLATION
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
On Site Pictures
Certifications
Warranty
Contact Us
Company Information

About Us

Started 2011, REDDOT is concentrating on designing and manufacturing aviation obstruction lighting products. With six years rich experience in development, production and sales, REDDOT has grown up to a major and powerful manufacturer of aviation obstruction light in China.

Our Mission

Provide reliable and longevous products with optimal design to our customers

Our Value

•Improve continuously
•Persistent and resolute
•Keep vigorous

What we do

REDDOT focus on R&D of obstruction light and continuously invest capital on R&D and quality, to provide state-of-the-art products for our customers.

Who we serve

•Telecom
•Electricity
•Building

•Airfield/Helipad
•Wind Energy
•Oil&Gas

•Construction Machinery
•Plant
•Mining

Our Advantage

•Deep understanding of technologies that our products require, including, high-power LED&driver, photometric, heat dissipation, solar system, control and monitoring.
•Absolutely following rules & regulations in the industry we are serving. Such as ICAO, FAA, DGAC, CAA, CAP, CASA etc international and region aviation regulations; IEC and IEEE international electric standards
•Semi-automatized production line and workers with high quality, make sure exquisite process and more reliable quality
•Restrict selection and audition of materials suppliers, REDDOT tries our best to use more superior materials of well-known international brands, including OSRAM, NSC, Omron, Schneider, Weidmuller,etc, to assure our products perform better and longer lifespan.
•Restrict QA and QC on materials, semi-products and finished products.
