Home > Products > Low intensity Solar Powered Aviation Obstruction Light for Antena/Telecom GMS/ High rise building/tower crane
Low intensity Solar Powered Aviation Obstruction Light for Antena/Telecom GMS/ High rise building/tower crane
Click on the image to view the original image
Product: views:6Low intensity Solar Powered Aviation Obstruction Light for Antena/Telecom GMS/ High rise building/tower crane
Branch: REDDOT, REDDOT
Type: Aviation Obstruction Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
12
Lamp Power(W):
1
Lamp Luminous Flux(lm):
204
Lamp Luminous Efficiency(lm/w):
34
CRI (Ra):
85
Color Temperature(CCT):
red
Beam Angle(°):
360
IP Rating:
IP67
Certification:
CE, EMC, LVD
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Shanghai, China, Shanghai, China (Mainland)
Brand Name:
REDDOT, REDDOT
Model Number:
OLS32D
Color:
red
Category:
Solar Powered Aviation Obstruction Light
Intensity:
>32cd
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
2pcs/carton for Solar Powered Aviation Obstruction Light
Port
Shanghai
Lead Time:
7-20 days depends on quantity of Aviation Obstruction Light
Product Description

OLS32 LED SOLAR POWERED LOW INTENSITY TYPE B OBSTRUCTION LIGHT

OLS32 solar powered low intensity red obstruction light is designed based on LED technology and smart solar energy management system, for marking structures outline for warning aircraft during nighttime. OLS32 solar powered single and double obstruction light is a self-contained solar powered lighting system without needing any extra power source. Robust body built and surface coating provides good protection against harsh environments.

Complying with ICAO low intensity type A & B and FAA L-810. OLS32 is used for structures less than 45m or intermediate levels combined with medium intensity lights.

OLS32S LED Solar Powered Low Intensity Single Obstruction Light

OLS32S solar powered low intensity single obstruction light is a compact fixture with a single LED light head , one-side angle-adjusted high-efficiency solar panel and a compartment for high-grade coiled SLA rechargeable battery and control board. Ingenious solar panel mounting design make the mounting easier and faster. Without difficult wiring job, customer only need to plug male a female cable connector to connect solar panel to battery base.

Generally, multiple OLS32S solar single obstruction lights will be installed in one or more horizontal levels of a structure.

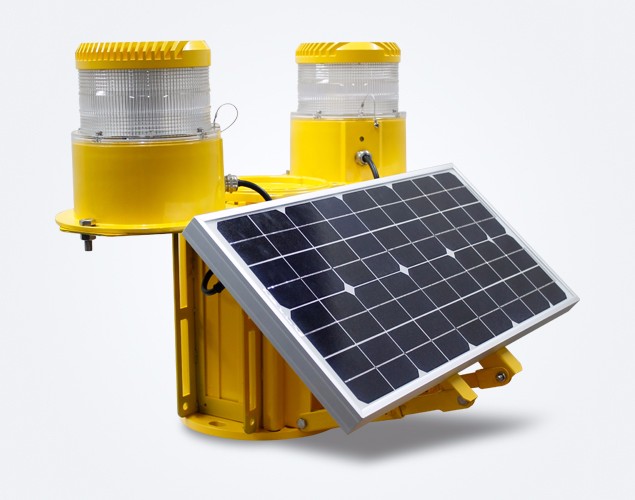

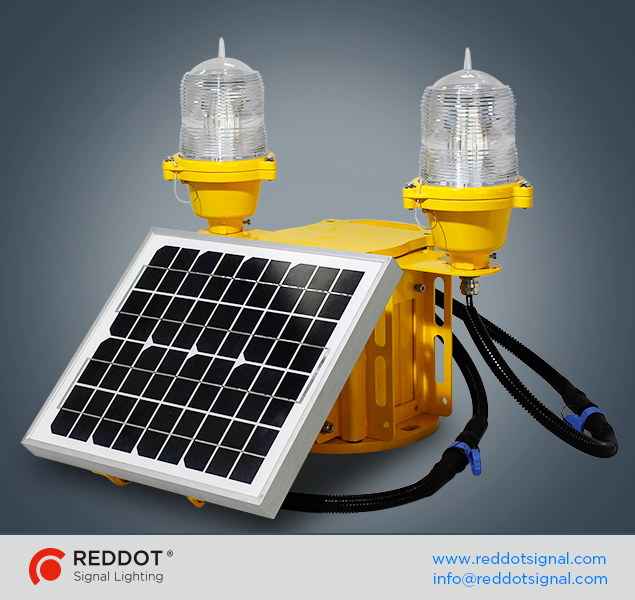

OLS32D LED Solar Powered Low Intensity Double Obstruction Light

OLS32D Solar powered low intensity double obstruction light is a complete double light fixture with two OL32 single lights, one-side angle-adjusted high-efficiency solar panel and a compartment for coiled SLA rechargeable battery and control board.

Ingenious solar panel mounting design makes the mounting easier and faster. Without difficult wiring job, the customer only needs to plug male a female cable connector to connect the solar panel to battery base.

OL32D solar double obstruction light has two operation mode “Service+Standby” and “Service+Service”. Generally, the double light could be installed on top or intermediate of a structure.

• Service+Service: Two single lights work simultaneously. Either failure will not affect the other normal working.

• Service+Standby: Only “Service light” is working normally. It will auto-transfer to Standby light in the case of “Service light” failure.

FEATURES

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Self-contained structure without needing external cable wiring
•High-grade Coiled SLA battery provides long lifetime
•Self-adjusting light intensity by detecting ambient environment
•Programmed AUTO-OFF if keep working for 18 hours
•Ingenious one-side solar panel mounting design make decline angle adjustable to adapt to broad-wide regions with different latitudes
•Encapsulated and sealed power module provides more reliability and better protection
•Excellent shock and vibration resistant

APPLICATIONS
COMPLIANCE
SPECIFICATION
LIGHT OUTPUT
Effective Intensity
>32.5cd
Vertical beam
10°
Horizontal Spread
360°
Light Source
Osram LEDs
LED Color
Red
LED Lifespan
100,000 Hours
OPERATION
Autonomy
15 days
ON&OFF Level
70/100Lux
Flash Pattern
Steady burning or flashing upon request
POWER SUPPLY
Solar Panel Type
Solar Module, Mono-Crystalline Silicon
Solar Panel Efficiency
13.50%
Solar Panel Size
Varying upon different P/N in ordering code
Battery type
High-efficiency Coiled SLA
Battery Replacement
Yes, replaceable
Battery Size
Varying upon different P/N in ordering code
MECHANICAL STRUCTURE
Lens
Polycarbonate, UV Stabilized
Body
Extrude-Aluminum
Mounting
4*Ф16*25mm slot holes and 2*Ф16mm round holes
on 200mm bottom PCD
Protection
IP67
Temperature
-40C°~+55C°
Relavtive Humidity
100% with condensation
Weight
Varying upon different P/N in ordering code
Dimension
Varying upon different P/N in ordering code
OTHERS
Optional
•Zigbee Wireless Monitoring
•GPS Synchronization
•GPRS Wireless Remote Monitoring
Warranty
•5 years for light
•3 years for battery
ORDERING CODE
Series
Single
/Double
Steady
/Flashing
Operation Mode
(For double light only)
Zigbee Wireless
GPS
GPRS
OLS32
S(Single)
[BLANK](Steady)
ST
(Service+Standby)

[Blank]
(w/o Zigbee)
[Blank]
(w/o GPS)
[Blank]
(w/o GPRS)
D(Double)
F(Flashing)
SS
(Service+Service)

ZB
(w/ Zigbee wireless monitoring)
GPS
(w/ GPS)
GPRS
(w/ GPRS)

For example:

OLS32DSS-ZB-GPS, means a solar double obstruction light, red steady>32cd, service+service, with Zigbee wireless monitoring and GPS synchronization.
Note:
Solar system size are varied upon different P/N in ordering code. Please contact us for quotation of your specified specification.
If select the light with wireless alarm monitoring option, the customer also need to buy REDDOT wireless controller
When the light is in storage, please put it outside to charge the battery every 3 months.

DIMENSION
Detailed Images
IN OPERATION
PACKAGE
In international transportation, cargos will go through unexpected situations: multiple loading and unloading, rough handling and long-distance bump. The robust package is of particular importance to resist such harsh transportation. REDDOT uses multi-packing protection to reduce as many breakages as possible:  5-layer corrugated carton, wrapping films and paperboard protector.
