Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 85-265VAC; 48VDC,24VDC,12VDC
- Lamp Power(W):
- 15
- CRI (Ra):
- 80
- Color Temperature(CCT):
- Other
- Beam Angle(°):
- 360
- IP Rating:
- IP67
- Certification:
- CE, EMC, LVD
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum
- Light Source:
- LED
- Place of Origin:
- Shanghai, China
- Brand Name:
- REDDOT
- International standard:
- ICAO type B, FAA L-810, CASA
- Light Intensity:
- 200cd
Supply Ability
- Supply Ability:
- 500 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Carton
- Port
- Shanghai
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 15 To be negotiated

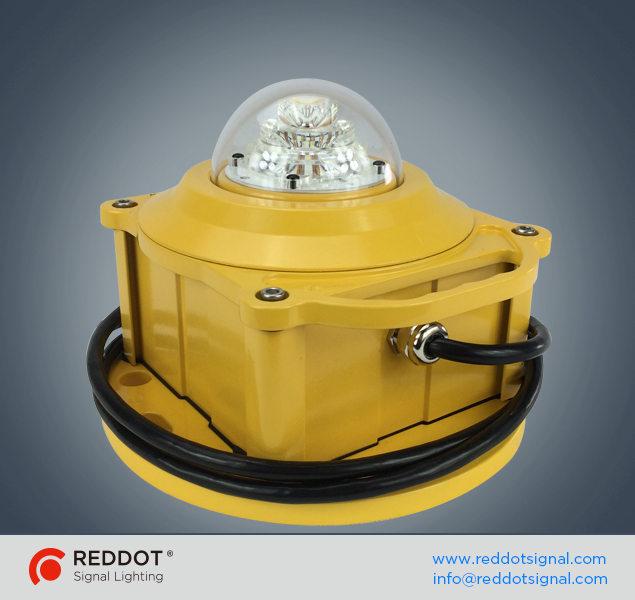

LED based low intensity aviation obstruction light
Product Description
Reddot OL200 is a type of low intensity aviation obstruction light, peak intensity can be up to 200 Candelas, far exceed International standard ICAO type B(32.5Candelas).OL200 consists of 12pcs ultra-bright Germany made OSRAM LEDs and power driving module without needing extra power supply. Excellent heat dissipation system protects LEDs from overheating which is a tremendous benefit to expand lifespan. OL200 can either work with REDDOT controller as a system for centralizing control and monitor or come with built-in photocell, alarm contacts or GPS for working standalone.
Features
- Super-bright OSRAM LEDs reliable light source ensures long lifespan
- Optimized optical Lens design enhances LED efficiency and distributes 360-degree visibility
- Internal LED driver and constant current regulator make the light illuminate steadily
- Protective vent for balancing pressure and prevent from water condensation
- Aluminum base with powder painted provides good weather and corrosion resistant
- Excellent shock and vibration resistant
- GE polycarbonate optical lens, UV-stabilized
- Self-contained design for wiring which eliminate additional junction box
- Prewired cable makes wiring job easier
- Optional built-in photosensor, which can work independently, turn on/off automatically from dusk to dawn
- Optional dry contact alarm relay, 3-pin side-entry screw terminal block ”NO-COM-NC”
- Available steady-burning or flashing type
- Polarity reverse protection
- Overvoltage protection and short-circuit protection
Compliant
- CASA Part 139
- UK CAP168 Low Intensity Obstacle(Group B)
- NFL 197-107/03, Neues feuer W-ROT
Specification
LIGHT OUTPUT | |
200cd | |
Vertical beam | +5 to +8 degree 200cd 0 to +15 degree 50cd |
Horizontal Spread | 360° |
Light Source | Osram LEDs |
LED Color | Red |
LED Lifespan | 100,000 Hours |
OPERATION | |
Flash Pattern | · Steady burning · Flashing 20-60FPM |
POWER SUPPLY | |
Input Voltage | 85-265VAC,50/60Hz; 48VDC;24VDC;12VDC |
Power Consumption | 15W |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilized |
Body | Die-casting Aluminum |
Mounting | Four 10.5*23.2mm slot holes on bottom 204.5mm PCD |
Protection | IP67 |
Net Weight | 4KG |
Temperature | -40C°~+80C° |
Relative Humidity | 100% with condensation |
Dimension(W*H) | 235mm*175mm |
