- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- V1201W-104
- Phase:
- DC 12V
- Protection:
- Overcurrent
- Weight:
- 150g
- Output Voltage:
- DC 12V
- Type:
- On-line, 12v 1a portable mini ups
- Application:
- Security / Monitoring / Alarm
- Input:
- 12V DC
- Output:
- 12V 1000mA
- Capacity:
- 2000mAh / 14.8wh
- Battery Type:
- 18650 li ion battery
- Size:
- 100x50x24mm
- UPS IN jack:
- 5.5*2.1mm
- UPS OUT jack:
- 5.5*2.1mm (customized)
- Working temperature:
- -20°C~65°C
- Certification:
- CE, FCC, RoHS
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12X7X3 cm
- Single gross weight:
- 0.4 kg
- Package Type:
- 1.44pcs/ctn 2.carton size:42*23*24cm 3.weight:9kgs
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated

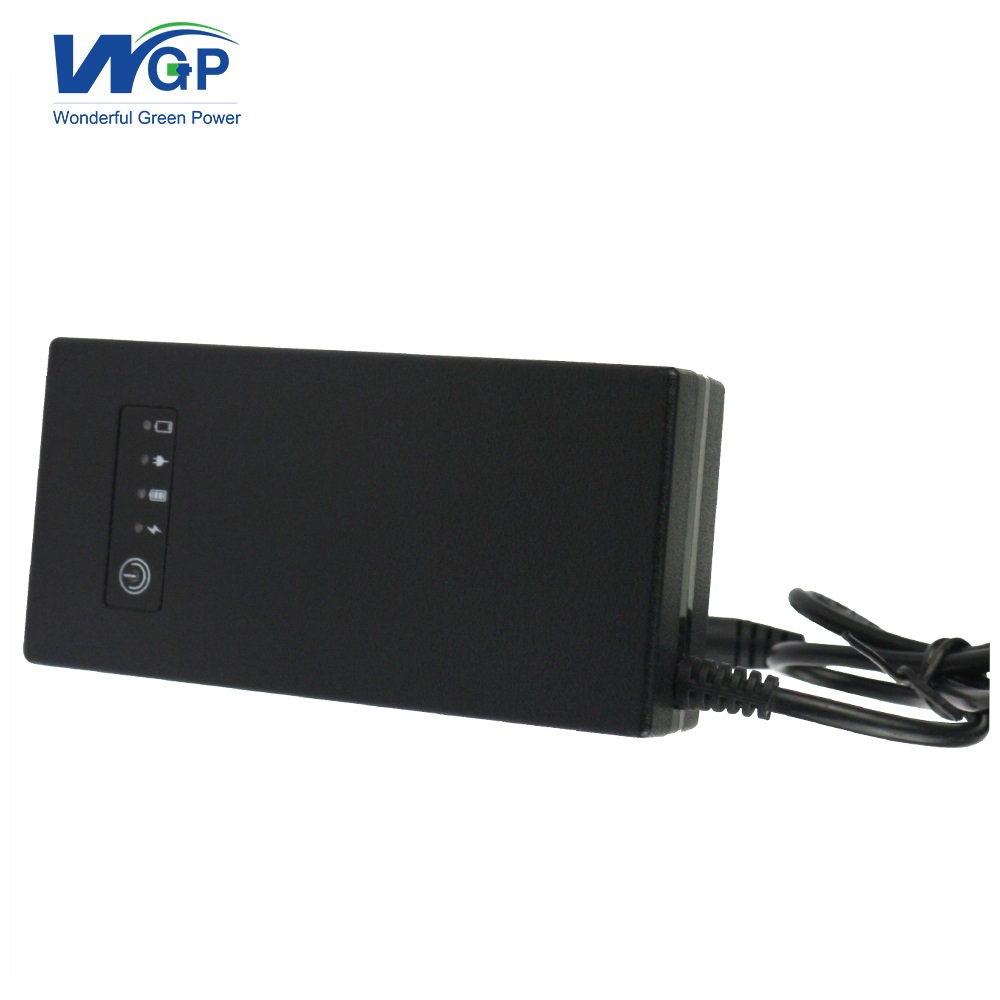

China smallest backup battery 12V dc ups portable mini small size ups price in Pakistan
Mini UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS.
Created by high performance and efficiency DC-DC, boosting and switching circuit.
This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
| Model | V1201W-104 |
| Battery cell | 18650 lithium ion battery cell |
| Input | 12V DC |
| Output | 12V 1A |
| Size | 100*50*24mm |
| Weight | 150g |
| UPS in jack | 5.5*2.1mm |
| DC connector | 5.5*2.1mm (customized) |
| Capacity | 2000mAh/14.8wh |
1) very small size ups,hold with one hand.(10cm*5cm*2.4cm)
2) this mode is specially used for protection of power surge.
3) eco-friendly lithium ion battery cell inside.
4) no need addittional power adapter,just used the adapter of your device.
5) 4 indicators of working status,easy to know the working of ups.
6) smart IP chip,stable and realiable PCB board
Noticed: if you want big capacity of this model,please move to V1203W
Packing :
mini ups battery*1
carton box*1
User manual*1
Shipping:
Supports to ship via Sea,Air,Express(DHL,EMS,FedEx,HongKong Post,UPS,Swiss Post,TNT etc.).
You also can choose other couriers if you like.
Shipping time is based on the goods you order and the shipping method you choose.
Usually,it takes 3-5 days by DHL;7-15 days by EMS.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
