- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1202B-3
- Phase:
- 12V DC
- Protection:
- Overcurrent
- Weight:
- 345g
- Output Voltage:
- 12V
- Type:
- On-line, home energy storeage ups system
- Application:
- Security / Monitoring / Alarm
- Input:
- 12VDC
- Output:
- 12V 2000mA
- Capacity:
- 7800mAh / 57.72wh
- Certification:
- RoHS, CE, FCC, PSE
- Size:
- 111x60x43mm
- UPS IN jack:
- 5.5*2.1mm
- Accessory:
- 12V EU power adapter
- ups Working temperature:
- -20°C~65°C
- Color:
- Black
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12X8X6 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- carton box 30pcs/ctn carton size:42*23*24cm G.W:12.16kgs/ctn 1000 Piece/Pieces per Day leadtime = 15days for preparing the materials +1000pcs per day

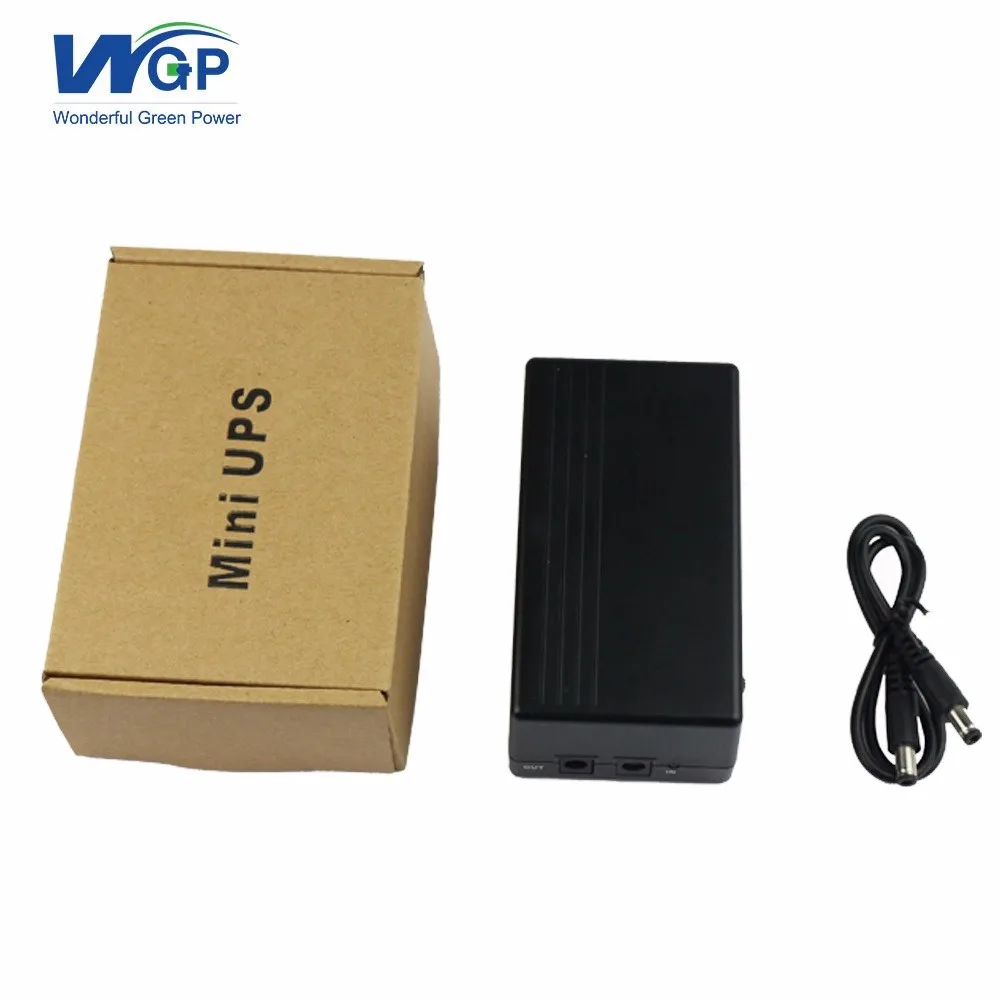

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated
High capacity 12V 2A mini ups 12v dc output ups for home camera system
Mini UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS.
| DC 12V Mini UPS Basic Information | |
| Model | UPS1202B-3 |
| Capacity | 7800mAh/57.72wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 12V±10% |
| Input current | ≤2000mA |
| Output Voltage | 12V±10% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Protection | Over charge,over discharge,over current,short circuit |
| With load current(battery) | ≥2000mA |
| Working temperature | -20°C~85°C |
| Net Weight | 345g |
| Size | 111x60x43mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
1,Portable and Easy installation
2.Big capacity (7800mAh/57.72wh)
3.Input:DC 12V 2A
4.Output:DC 12V/2A
5.Over charged and discharged prorection,Over current and short circuit protection
6,DC output 12 voltage(we also have 5V 9V 12V)
7,Built-in lithium ion battery cell with PCB board protection
8,Widely used for CCTV camera,mobile phone,LED lamp,ADSL modem,IP camera,router etc.
Shenzhen Richroc Electronic Co.,Ltd.is a medium modernization manufacturer and exporter,specialized in the design and sell of mini UPS,home solar lighting systems,temperature control power battery,power bank.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,MP3,MP4,digital camera,LED lamp,portable DVD/CD player,PDA,digital camcorder,ADSL modem and satellite communication system,E-bike etc.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity. As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
