Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS502B-5
- Phase:
- 5V
- Protection:
- Overcurrent
- Weight:
- 345g
- Output Voltage:
- DC 5V
- Type:
- On-line, router ups
- Application:
- Security / Monitoring / Alarm
- Capacity:
- 13200mAh / 48.84wh
- Input:
- 5V
- Output:
- 5V 2A
- Certification:
- FCC, RoHS, CE, PSE
- Size:
- 111x60x43mm
- UPS IN jack:
- 5.5*2.5mm
- DC cable:
- 5.5*2.5mm~5.5*2.1mm
- Working temperature:
- -20°C~65°C
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 14X7X5 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- carton box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated

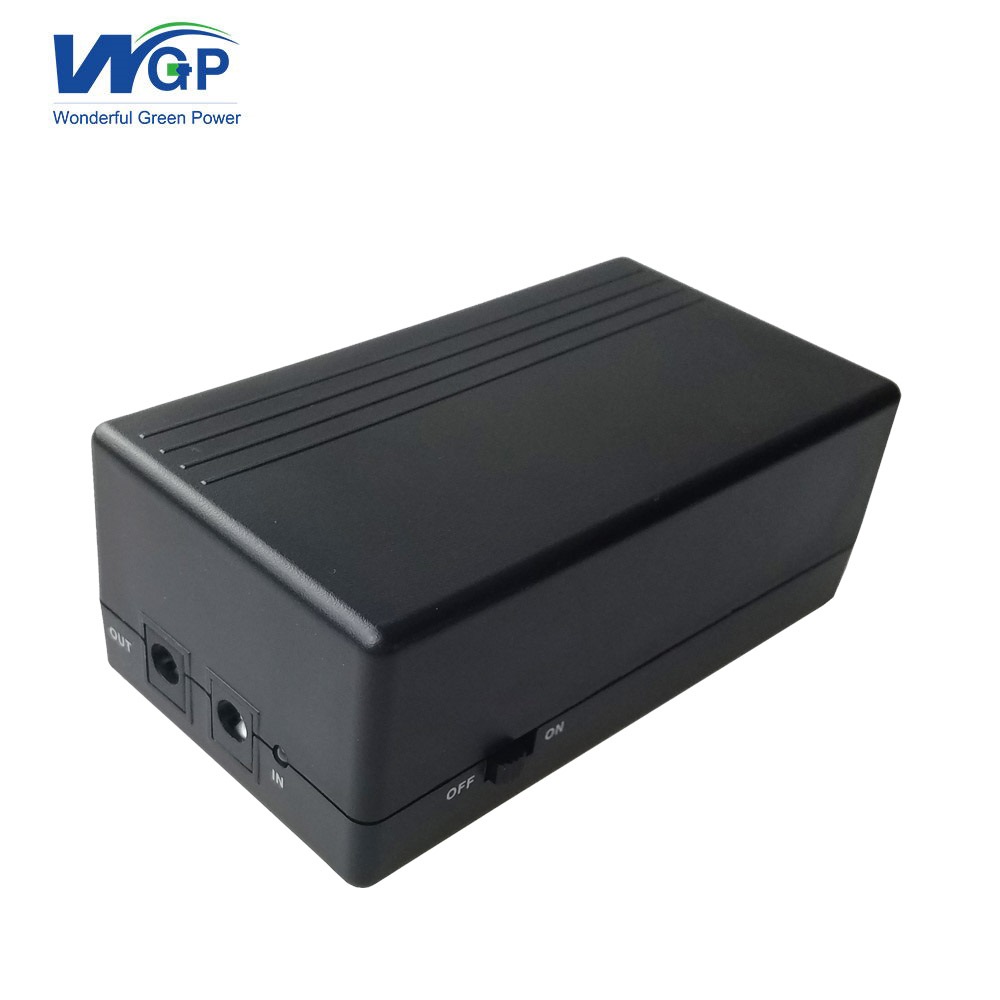

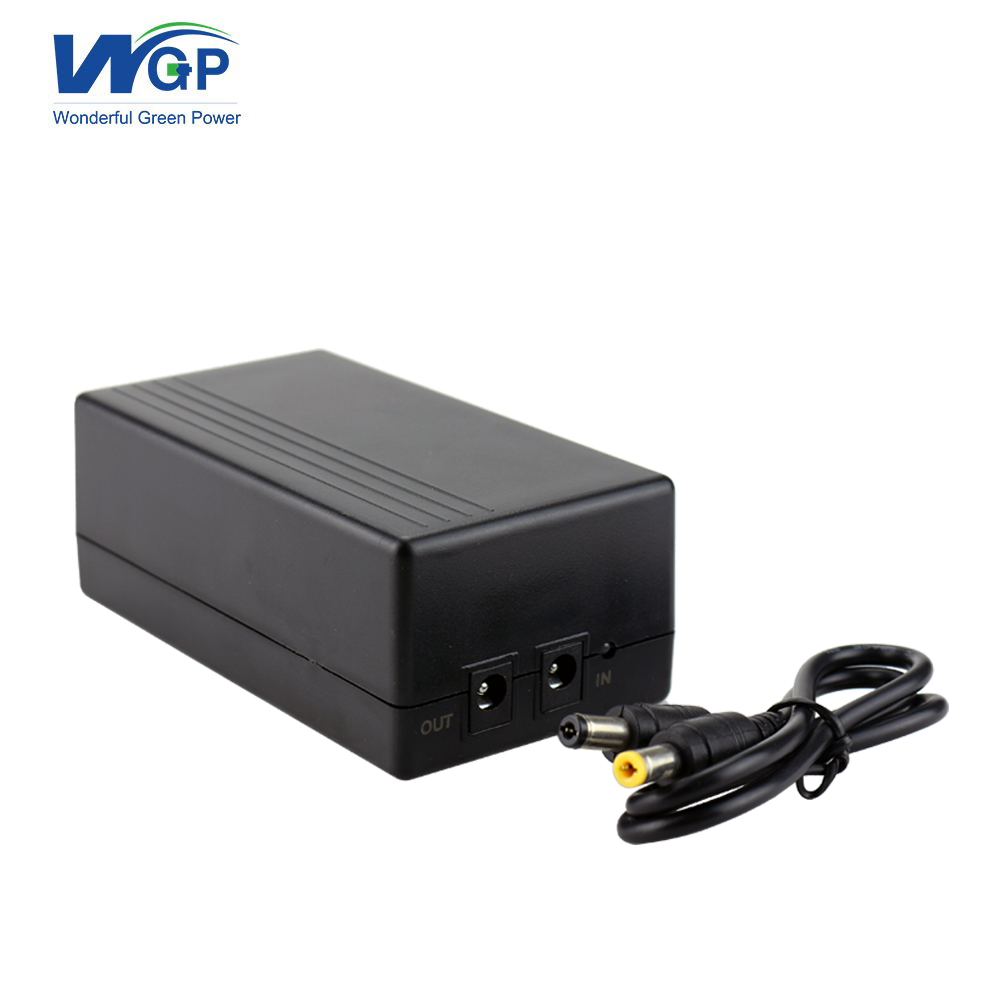

cheapest online router battery backup mini ups 5V for backup power supply in 3 - 6 hours
This model of mini ups is kind of emergency backup power supply with feature of online / standby function.When the power suddenly went off,the ups battery can still working your ADSL modem wifi router without transform time.
| DC 5V Mini UPS Basic Information | |
| Model | UPS502B-5 |
| Capacity | 13200mAh/48.84wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 5V±10% |
| Input current | ≤2000mA |
| Output Voltage | 5V±10% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Working temperature | -20°C~85°C |
| Weight | ≤345g |
| Size | 111x60x43mm |
| Protection | Over charge,over discharge,over current,short circuit |
| Warranty | 1 year |
| Certification | CE,RoHS,FCC,PSE |
Portable
Big capacity
Easy installation
DC output 5 voltage(we also have 5V 9V 12V)
Built-in lithium ion battery cell with PCB board protection
Widely used for CCTV camera,mobile phone,LED lamp,ADSL modem,IP camera,router etc.
5V 2A mini ups is our big capacity mini ups, we also have less capacity with cheaper price, please contact me if you have expected backup time, I will calcilate it for you and recommend the most suitable ups for you.
Model | Input/Output | Capacity | Price |
UPS502A | 5V/2A
| 5200mAh/19.24wh | |
UPS901A | 9V/1A
| 2000mAh/14.8wh | |
UPS1201A | 12V/1A
| 2600mAh/19.24wh | |
UPS1202A | 12V/2A | 2000mAh/22.2wh | |
UPS1202B | 12V/2A | 7800mAh/57.72wh | GO |
Shenzhen Richroc Electronic Co.,Ltd.is a medium modernization manufacturer and exporter,specialized in the design and sell of mini UPS,home solar lighting systems,temperature control power battery,power bank.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,MP3,MP4,digital camera,LED lamp,portable DVD/CD player,PDA,digital camcorder,ADSL modem and satellite communication system,E-bike etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed for each month.We have our own brand name WGP.Welcome your OEM and ODM orders. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast delivery are the reasons to choose us.
We Richroc focus on developing,manufacturing and selling the most realiable,safety and easy operate technical products.Our success comes from constant efforts to increasing production ability,improving life quality and bringing convenient and safety life for our customers.Under the aim of keeping creative for customers"profits,we make efforts to creating the most talented and creative products,as well as technology innovation.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
