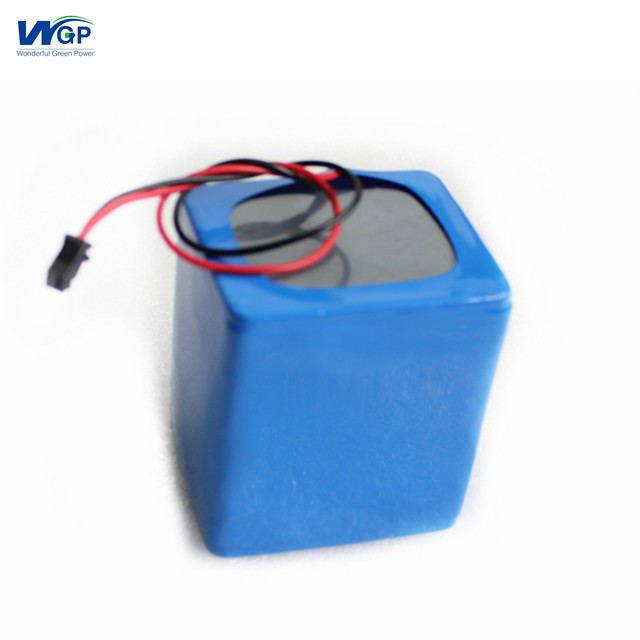

18650 battery pack 3S4P 11.1V / 12V li-ion battery pack
| Product name | 18650 battery pack 3S4P 11.1V / 12V li-ion battery pack |
| Rated capacity | 10400mAh |
| Rated voltage | 11.1V |
| Source resistance | <150mΩ |
| Cell specification | 3.7V 2600mAh LG cells |
| Cell Size | 18650 |
| Cell Quantity | 12pcs |
| Charge voltage | 12.6V |
| Charge cutoff voltage | 9V |
| Rated discharge current | <4A |
| Individual cell over-discharging protected voltage | 2.75±0.08V |
| Charge mode | CC/CV |
| Charge temperature range | 0"C~45"C |
| Discharge temperature range | 0"C~45"C |
| Storage temperature | -20"C~60"C |
| Battery size | 90*180*70mm and customize |
| Battery weight | 600g |
| Connector | can customize |
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
