Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS502A-102
- Phase:
- 5V
- Protection:
- Overcurrent
- Weight:
- 153g
- Output Voltage:
- DC 5V
- Type:
- On-line, 5v home ups
- Application:
- Security / Monitoring / Alarm
- Input:
- 5V DC
- Output:
- 5V 2000mA
- Capacity:
- 4000mAh 14.8wh
- Net Weight:
- 153g
- Size:
- 111x60x26mm
- UPS IN jack:
- 5.5*2.5mm
- DC cable:
- 5.5*2.5mm~5.5*2.1mm
- Working temperature:
- -20°C~65°C
- Color:
- Black
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 14X9X4 cm
- Single gross weight:
- 0.4 kg
- Package Type:
- Size: 42 x 23 x 24 cm Qty: 44pcs/carton Weight: 9.10kg/carton

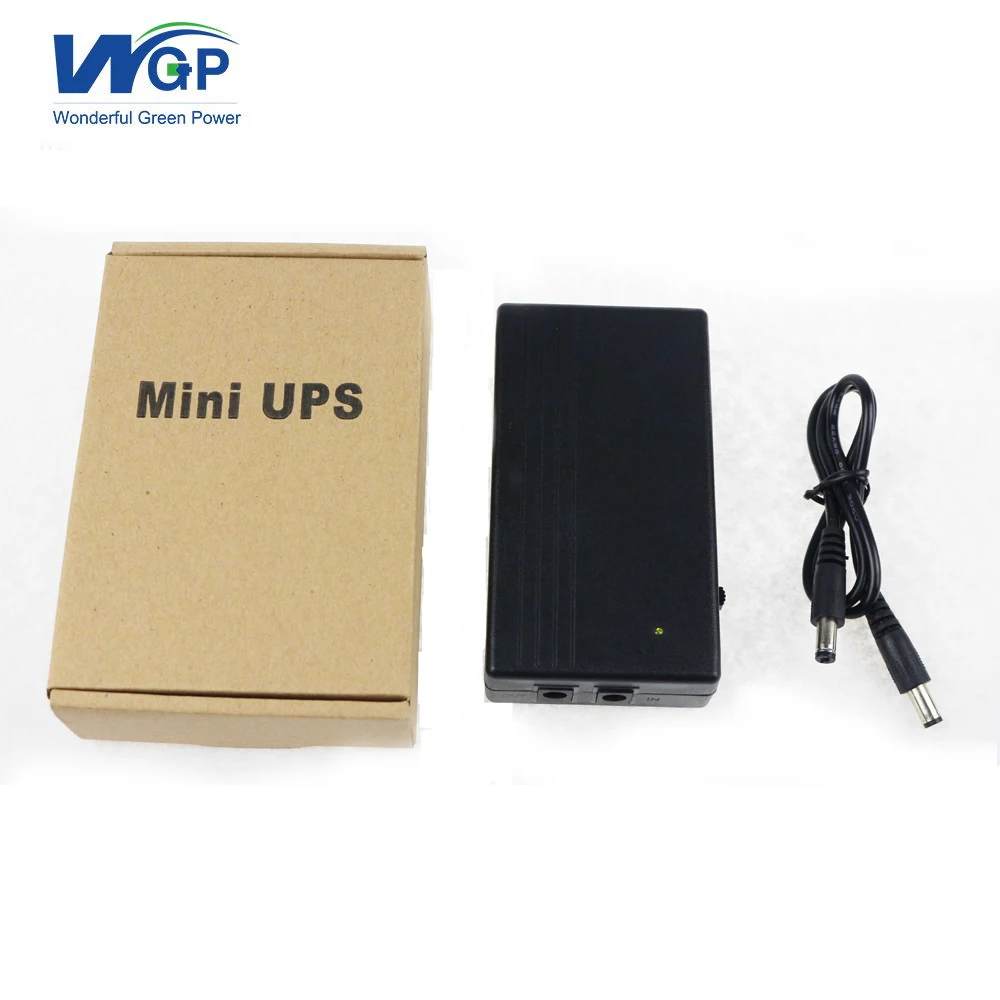

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50 >50 Est. Time(days) 7 To be negotiated
best home mini ups 5v lithium battery dc output mini ups backup battery for optical networks
mini ups is also called uninterruptible power supply,but with small size.It can continue powering your devices,when the main power supply is cut off.
The mini UPS uninterruptible power supply is an online or standby power system.
It used safe and environmetal lithium ion battery cells;
credible and stable PCB board;
constand voltage and current lithium battery charging management system(BMS);
high-performance and high-efficiency DC to DC boost converter circuit.
It also has perfect over-charge,over-discharge protection.
The mini UPS power supply is widely used for security cctv camerasafety monitoring systemdoor control system ime attendance systemfire alarm system and critical network system etc.
Power switch | control the UPS ON/OFF |
Input port | connect suitable adaptor |
Output port | connect the DC cable to your device |
LED indicator | Red:need charging or in the charging Green:normal working or fully charged |
| Model | UPS502A-1 |
| Type | 5V 2A mini ups |
| Input | 5V 2000mA |
| Output | 5V 2000mA |
| Working temperature | -20°C~65°C |
| Weight | 153g |
| Size | 111*60*26mm |
| UPS IN jack | 5.5*2.5mm,OUT:5.5*2.1mm |
| DC cable | 5.5*2.5mm~5.5*2.1mm |
| Battery capacity | 3.7V/4000mAh 14.8wh |
we also have 5v 9v 12v model with the same outlook.
Model | Input/Output | Capacity | Volume | Weight | Price |
UPS502A | 5V/2A
| 5200mAh 19.24wh | 111*60*26mm | 153g | |
UPS502B | 5V/2A
| 15600mAh 57.72wh | 111*60*43mm | 345g | |
UPS901A | 9V/1A
| 2000mAh 14.8wh | 111*60*26mm | 153g | |
UPS901B | 9V/1A
| 7800mAh 57.72wh | 111*60*43mm | 345g | |
UPS1201A | 12V/1A
| 2600mAh 19.24wh | 111*60*26mm | 153g | |
UPS1201B | 12V/1A
| 7800mAh 57.72wh | 111*60*43mm | 345g | |
UPS1202A | 12V/2A | 2000mAh 22.2wh | 111*60*26mm | 198g | |
UPS1202B | 12V/2A | 7800mAh 57.72wh | 111*60*43mm | 345g | click here |
Shenzhen Richroc Electronic Co.,Ltd.is a medium modernization manufacturer and exporter,specialized in the design and sell of mini UPS,home solar lighting systems,temperature control power battery,power bank.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,MP3,MP4,digital camera,LED lamp,portable DVD/CD player,PDA,digital camcorder,ADSL modem and satellite communication system,E-bike etc.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
