- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1201A-301
- Phase:
- Single Phase
- Protection:
- Overcurrent
- Weight:
- 153g
- Output Voltage:
- DC 12V
- Type:
- On-line, 12V router ups
- Application:
- Networking
- Capacity:
- 2600mAh/19.24wh
- Input:
- 12V DC
- Output:
- 12v 1000mA
- Size:
- 111x60x26mm
- UPS IN jack:
- 5.5*2.1mm
- Working temperature:
- -20°C~65°C
- Color:
- Black
- DC cable:
- 5.5*2.5mm~5.5*2.1mm
- Battery Type:
- 18650 lithium battery cell
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 14X9X4 cm
- Single gross weight:
- 0.4 kg
- Package Type:
- Size: 42 x 23 x 24 cm Qty: 44pcs/carton Weight: 9.10kg/carton

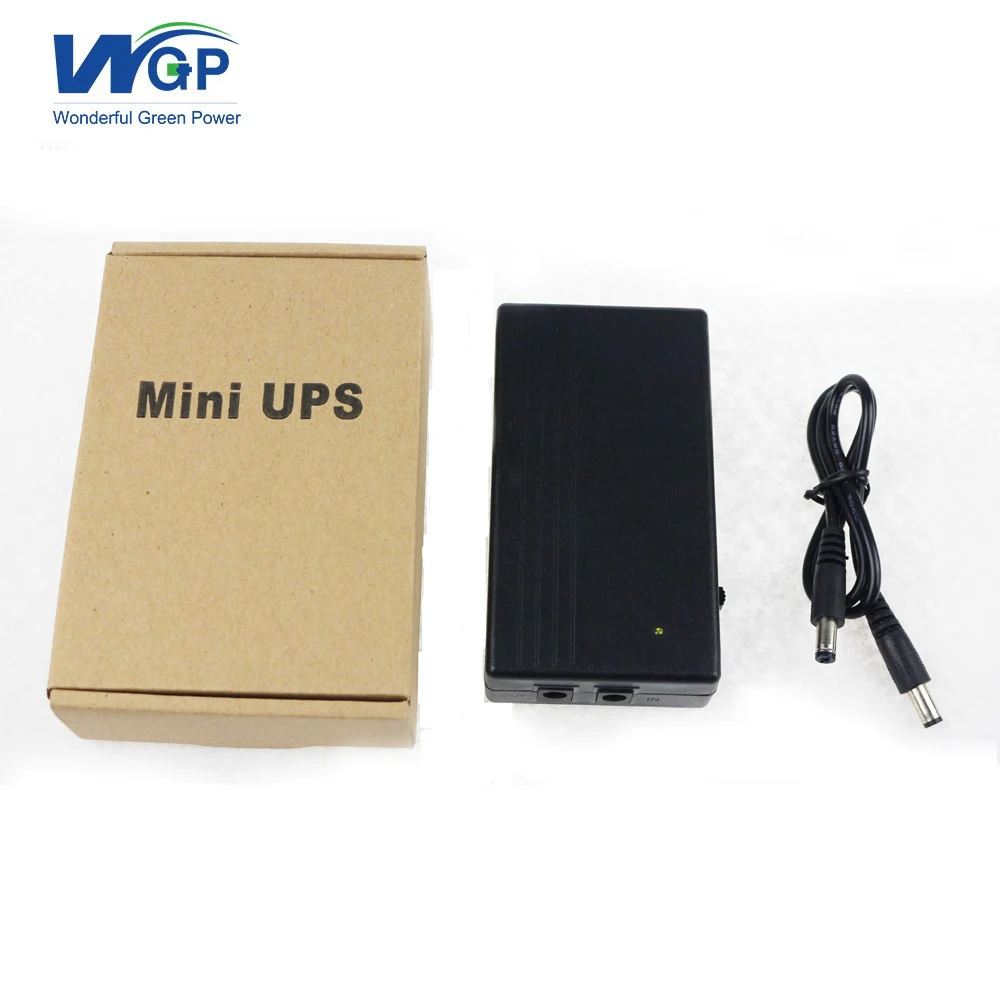

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated
Shenzhen 12V 1A router ups with battery backup power supply portable mini ups 12v for wifi router
Mini-UPS uninterrupted power supply acts as a backup battery during power interruption.
1, Used safe and environmental lithium ion cells,
2,With credible and stable PCB, constant input and output voltage
3,Created by high performance and efficiency DC-DC, boosting and switching circuit.
4,Also with perfect over-charged, over-discharged, over-current and short-circuit protection etc.
Power switch | control the UPS ON/OFF |
Input port | connect suitable adaptor |
Output port | connect the DC cable to your device |
LED indicator | Red:need charging or in the charging Green:normal working or fully charged |
| DC 12V Mini UPS Basic Information | |
| Model | UPS1201A-301 |
| Capacity | 2600mAh/19.24wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 12V±10% |
| Input current | ≤1000mA |
| Output Voltage | 12V±10% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Protection | Over charge,over discharge,over current,short circuit |
| Over-discharged protection(battery) | 6.0V( Over-discharged release 6.3V) |
| Over-charged protection(battery) | 8.5V( Over-charged release 8.25V) |
| With load current(battery) | ≥2000mA |
| Working temperature | -20°C~85°C |
| Weight | ≤153g |
| Size | 111x60x26mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
| Picture | Model | Input/Output | Feature | Get Price Link |
| V901W | 9V 1A | 1) mini small size 2) protect from power surge | here |
| V903W | 9V 3A | automatically match the output current to your device"s need | here |
| V1201W | 12V 1A | 1) mini small size 2) protect from power surge | here |
| V1203W | 12V 3A | automatically match the output current to your device"s need | here |
| Smart DC UPS - If you want to know more about the product, please feel free to contact me. | ||||
1. Connect a suitable adapter to UPS
2. First time to use,please charge the UPS 10 hours
3. Connect adapter to ups, then use dc cable connect ups to equipment
4. Switch on UPS and the equipment(see below diagram)
5. The Green LED indicates that the UPS is fully charged
6. The red LED indicates that adapter charge ups and also equipment when electricity is available
Shenzhen Richroc Electronic Co.,Ltd.is a medium modernization manufacturer and exporter,specialized in the design and sell of mini UPS,home solar lighting systems,temperature control power battery,power bank.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,MP3,MP4,digital camera,LED lamp,portable DVD/CD player,PDA,digital camcorder,ADSL modem and satellite communication system,E-bike etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed for each month.We have our own brand name WGP.Welcome your OEM and ODM orders. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast delivery are the reasons to choose us.
We Richroc focus on developing,manufacturing and selling the most realiable,safety and easy operate technical products.Our success comes from constant efforts to increasing production ability,improving life quality and bringing convenient and safety life for our customers.Under the aim of keeping creative for customers"profits,we make efforts to creating the most talented and creative products,as well as technology innovation.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity. As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
