- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS502A-3
- Phase:
- 5V DC
- Protection:
- Unbalanced Loads
- Weight:
- 153g
- Output Voltage:
- DC 5V
- Type:
- On-line, mini ups 5V 2A
- Application:
- Security / Monitoring / Alarm
- Input:
- 5V DC
- Transfer time:
- zero
- Capacity:
- 5200mAh-19.24wh
- Battery Type:
- 18650 lithium battery
- Size:
- 111x60x26mm
- UPS IN jack:
- 5.5*2.5mm
- DC cable:
- 5.5*2.5mm~5.5*2.1mm
- Working temperature:
- -20°C~65°C
- Usage:
- wifi router and security camera
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 14X9X4 cm
- Single gross weight:
- 0.4 kg
- Package Type:
- carton box Size: 42 x 23 x 24 cm Qty: 44pcs/carton Weight: 9.9kg/carton

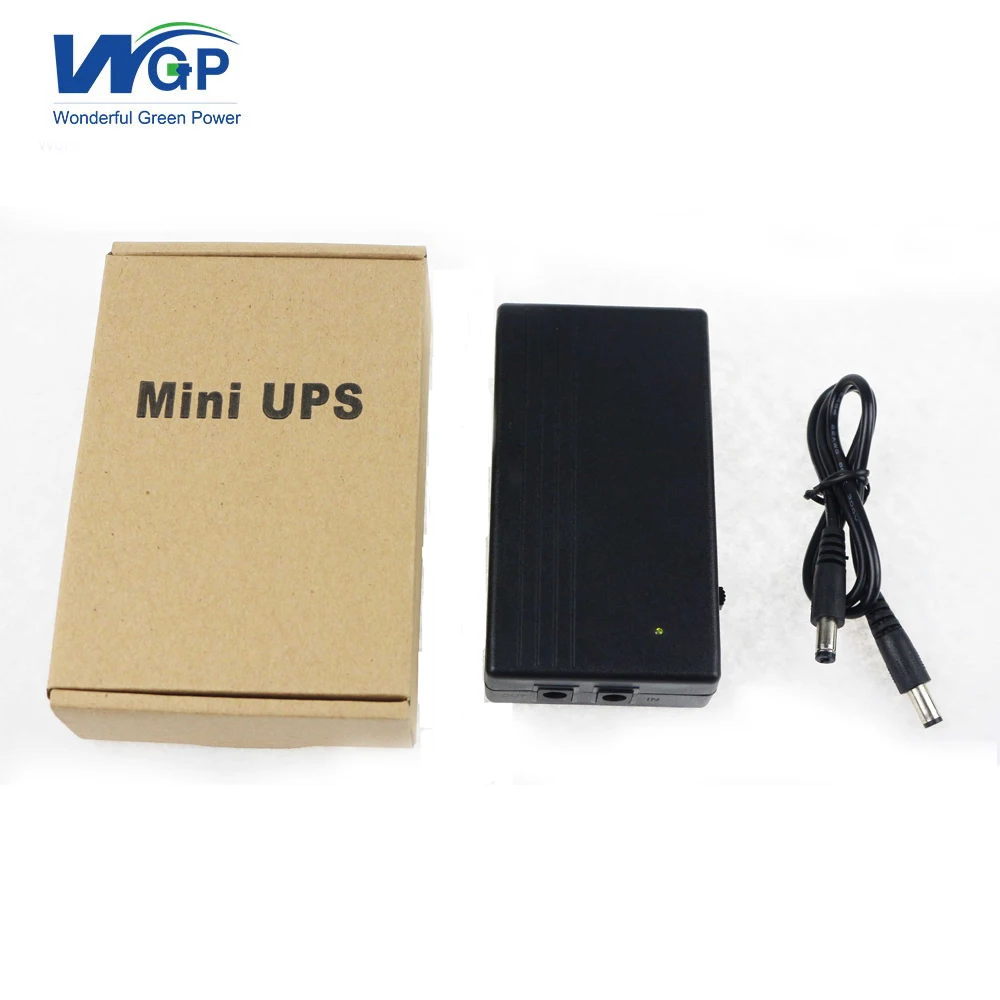

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 15 To be negotiated
New hot sale mini ups 5 volt uninterrupted power source 5200mAh lithium battery ups with CE FCC PSE RoHS
1,light weight big capacity
2,lithium ion battery built-in
3,small and compact size(111*60*26mm)
4,easy operation and installation
5,economical and good quality
6,environmental-friendly and safe
7,smart control PCB board
Power switch | control the UPS ON/OFF |
Input port | connect suitable adaptor |
Output port | connect the DC cable to your device |
LED indicator | Red:need charging or in the charging Green:normal working or fully charged |
| Model | UPS502A-3 |
| Type | 5V 2A mini ups |
| Input | 5V 2000mA |
| Output | 5V 2000mA |
| Working temperature | -20°C~65°C |
| Weight | ≤153g |
| Size | 111x60x26mm |
| UPS IN jack | 5.5*2.5mm,OUT:5.5*2.1mm |
| DC cable | 5.5*2.5mm~5.5*2.1mm |
| Battery capacity | 3.7V/5200mAh-19.24wh |
we also have 5v 9v 12v model with the same outlook.
Model | Input/Output | Capacity | Price |
UPS502A | 5V/2A
| 5200mAh-19.24wh | |
UPS901A | 9V/1A
| 2000mAh-14.8wh | |
UPS1201A | 12V/1A
| 2600mAh-19.24wh | |
UPS1201B | 12V/1A
| 7800mAh-57.72wh | |
UPS1202A | 12V/2A | 2000mAh-22.2wh | |
UPS1202B | 12V/2A | 6600mAh-48.84wh | Click here |
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
