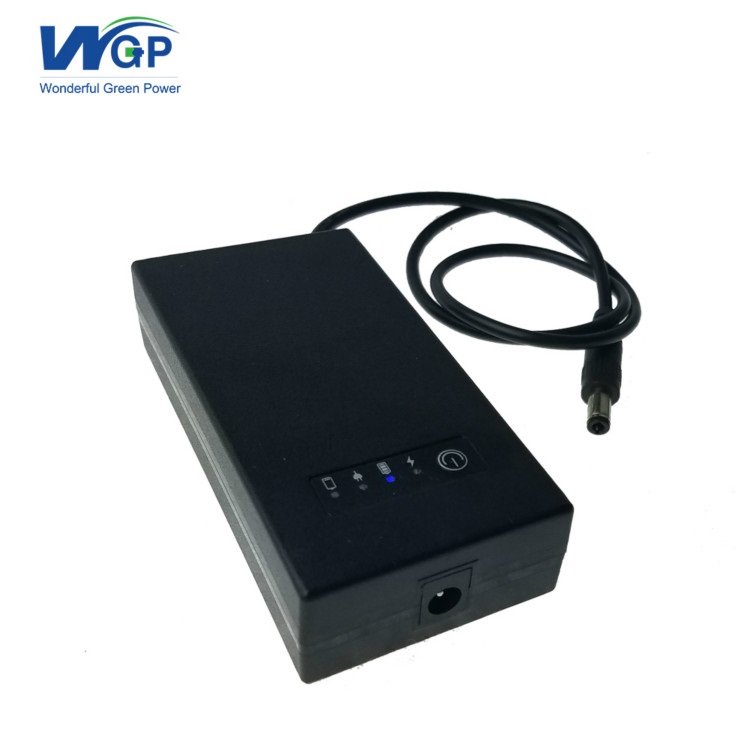

rechargeable portable power supply dc mini 9v ups with lithium battery backup
The uninterruptible power supply which also called UPS,that is a kind of backup battery which can power your device when there is no mains supply.It is widely used for security system,safety monitoring system,door control system and attendance system,communication system etc.
Same Surface different solutions
Item | Capacity | Input | Output | SIze |
9V@1A | 2000mAh /14.8wh | DC 9V 1A, DC 5.5*2.1mm | DC 5V 2A, DC 5.5*2.1mm | 100*50*24mm |
12V@1A | 2000mAh /14.8wh | DC 12V 1A, DC 5.5*2.1mm | DC 9V 1A, DC 5.5*2.1mm | 100*50*24mm |
9V@2A | 4000mAh /29.6wh | DC 9V 2A, DC 5.5*2.1mm | DC 12V 2A, DC 5.5*2.1mm | 138*60*24mm |
12V@2A | 4000mAh /29.6wh | DC 12V 2A, DC 5.5*2.1mm | DC 12V 2A, DC 5.5*2.1mm | 138*60*24mm |
12V@3A | 4000mAh /29.6wh | DC 12V 2A, DC 5.5*2.1mm | DC 12V 2A, DC 5.5*2.1mm | 138*60*24mm |
1.We have variety models suitable for different device.
2.We"re happy to assist you to get the most suitable model,welcome your iqnuiry.
3.DC size can be customized.
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
