Click on the image to view the original image
5v home ups online backup power bank mini ups 5 volt for uninterruptible power supply
| DC 5V Mini UPS Basic Information | |
| Model | UPS502B |
| Capacity | 10400mAh/38.48wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 5V±10% |
| Input current | ≤2000mA |
| Output Voltage | 5V±10% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Protection | Over charge,over discharge,over current,short circuit |
| Working temperature | -20°C~85°C |
| Weight | ≤255g |
| Size | 111x60x43mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
The mini ups also called backup battery.When has city power,won"t release ups power,ups is being charge and storage energy.
Once city power cut off,ups will work for device automatically.Makes you no trouble when no city power.See below .
Portable
Big capacity
Easy installation
DC output 5V/9V/12V selectable
Built-in lithium ion battery cell with PCB board protection

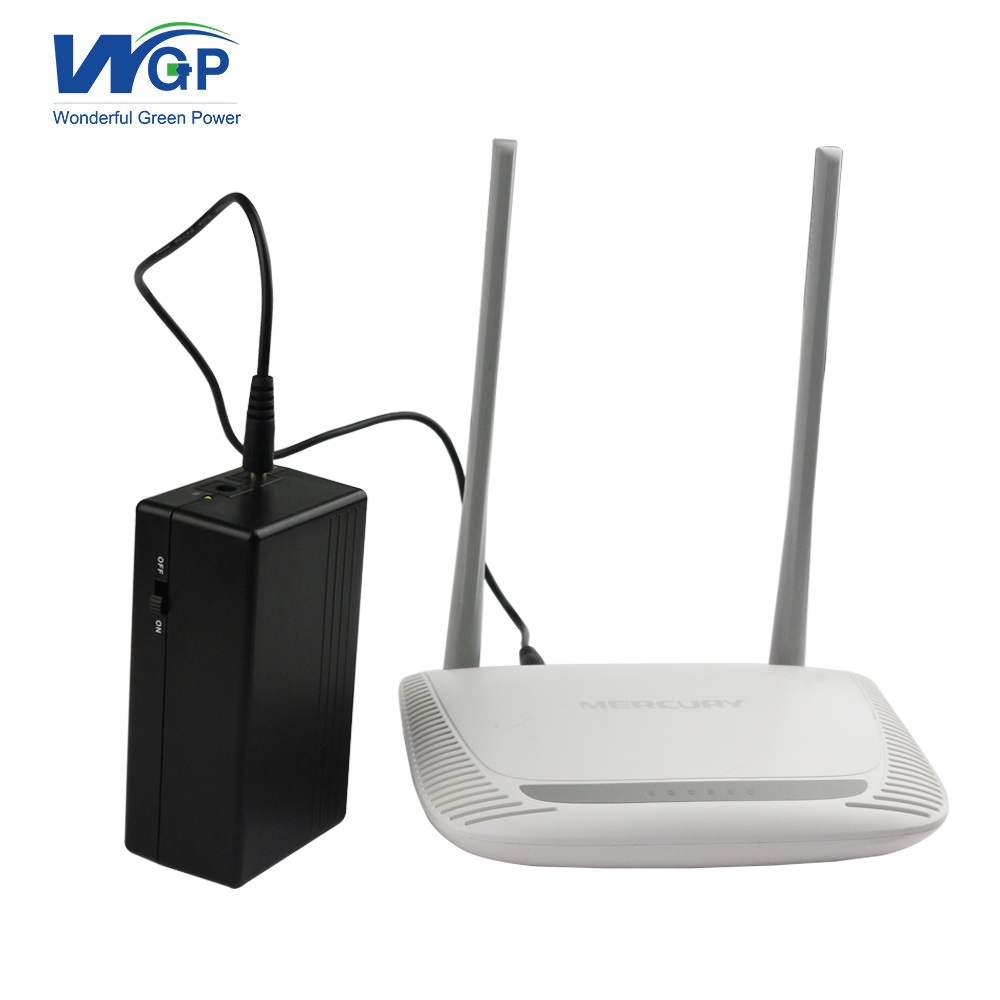

Widely used for CCTV camera,mobile phone,LED lamp,ADSL modem,IP camera,router etc.
Remark:
1.We have variety models suitable for different device.
2.We"re happy to assist you to get the most suitable model,welcome your iqnuiry.Click here
3.DC size can be customized
| Packing Method | |
| 1. Well protection neutral box packing | |
| 2. 25PCS/CTN | |
| 3. CTN Size:42*23*24CM | |
| 4. G.W 11kg | |
| Packing Include | |
| UPS Battery | 1PC |
| DC Cable | 1PC |
| User Manual | 1PCS |
| Delivery Time | |
| Sample | 2-3 working days |
| Bulk Order | 15-20 working days |
| Shipping Method | |
| DHL,UPS,FedEX,EMS,HongKong Post,Swiss Post etc.... | |
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other models?
A:Yes,we have variety models with defferent capacities,please contact with me for more details.
