- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1202A-288623
- Phase:
- SINGLE PHASE
- Protection:
- over(dis)charged over-current overvoltage and short-circuit protection
- Weight:
- 198g
- Output Voltage:
- 12V 2000mA
- Type:
- ONLINE, 12v ups li ion battery ups
- Application:
- networking/security/alarm/monitoring/telecommunications,LED lamp,etc.
- Capacity:
- 28.86WH 2600mAh
- Size:
- 111*60*26mm
- Backup time:
- 2~8 hours
- Input voltage:
- 12V 2000mA
- Material:
- ABS
- Color:
- Black
- Certification:
- CE FCC RoSH PSE
- Battery Type:
- 18650 Lithium Ion Battery cell
- Product name:
- 12v 2.6ah li ion ups battery backup power supply
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 44pcs/CTN 11.90KG/CTN 42*23*24CM

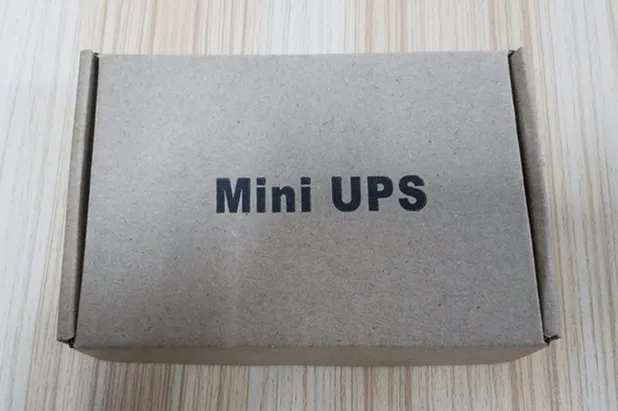

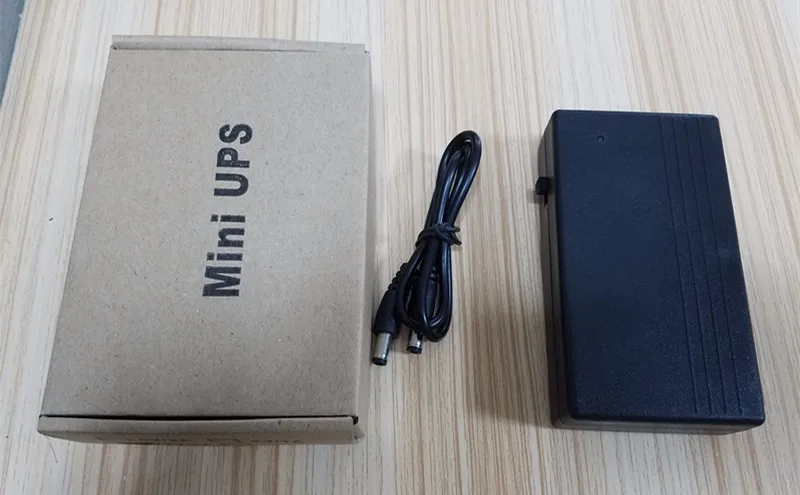

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 5
12v 2.6ah li ion ups battery backup power supply 18650 lithium power battery ups 12V
Mini UPS uninterruptible power supply is a standby energy storage power supply. Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS,
Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
| No. | Item | Technical Requirements | Remark |
| 1 | Input voltage | 12V ± 5% | |
| 2 | Input current | 350mA + loading current | |
| 3 | Charging current | 350mA ± 10% | |
| 4 | Charging transfer efficiency | >=75% | |
| 5 | No-load voltage range | 12 ± 5% | |
| 6 | Output current range | <=1000mA | |
| 7 | Output voltage range | 12 ± 5% | |
| 8 | Discharging transfer efficiency | >=85% | |
| 9 | Over-discharged protection (battery) | 6.0V | Over-discharged release 6.3v |
| 10 | Over-charged protection (battery) | 8.5V | Over-charged release 8.25v |
| 11 | With load current (battery) | >=2000mA |
| Item | Details |
| Product Name | 12v 2.6ah li ion ups battery 18650 lithium power battery ups |
| Applications | Router, ADSL, Modem, Cameras |
| Battery Type | 18650 Lithium battery cells |
| Battery Qty | 3pcs 2600mAh Samsung or LG 18650 lithium battery cells |
| Input | DC 12V 2000mA |
| Output | DC 12V 2000mA |
| Charge time | 5~8 hours |
| Net weight | 198g |
| Dimension | 111*60*26mm |
We Richroc always focus on manufacturing and developing the mini UPS since 2009,more than 10 years of experience in the field.
We have independent engineering developing department and our own factory in Shenzhen and Dongguang.
NO. | Item | Details |
1 | Accept sample order | you can place sample order even 1set to test our products and services. |
2 | Low MOQ | We are a manufacturer,not wholesaler or trading company,we can control the production.In order to support your business,we accept low MOQ as 1set. |
3 | OEM/ODM | We have our own Design Dept. and experienced engineering team,we can develop new samples according to the market change and need ,to win the market for our customer. If you are not ready for the design, our engineers will help you about it freely with their expertise. |
4 | Factory price | Factory directly sell ,price is much lower than retailer,wholesaler or agents, save you much cost! |
5 | Quality and Leadtime | 80% of employees with at least 3 years experience in production ,engineering and technology.What"s more,we have our own PCBA Dept,so we can control the qaulity of PCB part and producing process. |
6 | Warranty | 1 year warranty.If the products has function problem, after you offered evidence details to us, we will replace you new products with next order. |
7 | Exclusive | If you be our agent,we won"t sell to other buyer in your country,you are the only occupant of the market! |
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
