Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS502B-09
- Phase:
- Single Phase
- Protection:
- Over charge,over discharge,over current,short circuit
- Weight:
- 345g
- Output Voltage:
- 5V
- Type:
- On-line, High efficiency high capacity mini ups 5 volt
- Application:
- Security / Monitoring / Alarm, ip camera,router,modem,dvr
- Capacity:
- 3.7V / 15600mAh - 57.72wh
- Input:
- 5V 2A,DC 5.5*2.5mm
- Output:
- 5V 2A,DC 5.5*2.1mm
- Model No.:
- UPS502B-09
- Material:
- ABS
- Backup time:
- 3~10hours
- Battery Type:
- 18650 Brand 2600mAh lithium-ion cells
- Product name:
- mini ups 5v 2a 15600AH small size large power ups
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17X12X10 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 1. 30PCS/CTN 2. CTN Size:42*23*24CM 3. G.W 11.98kg / CTN

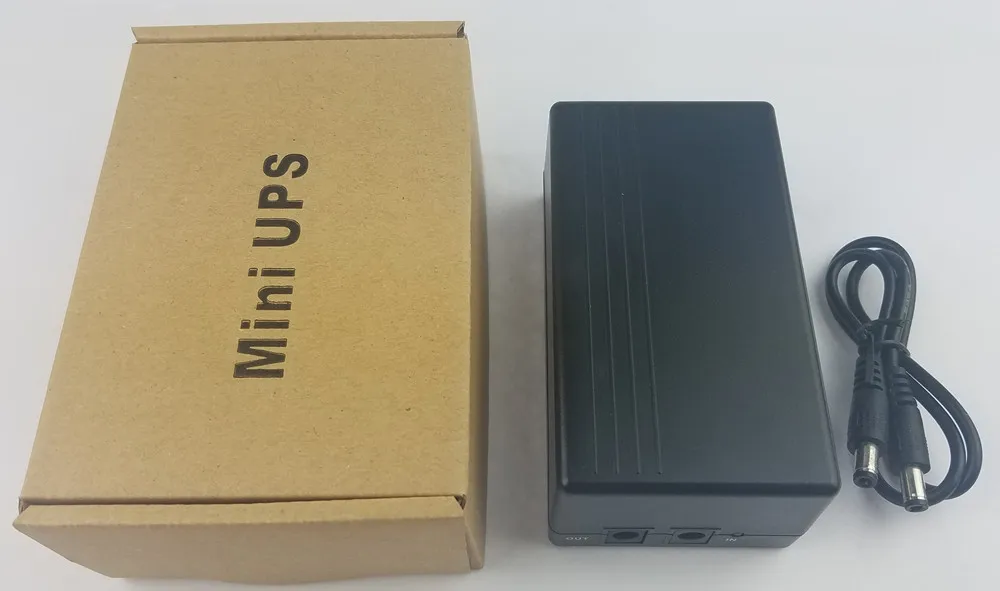

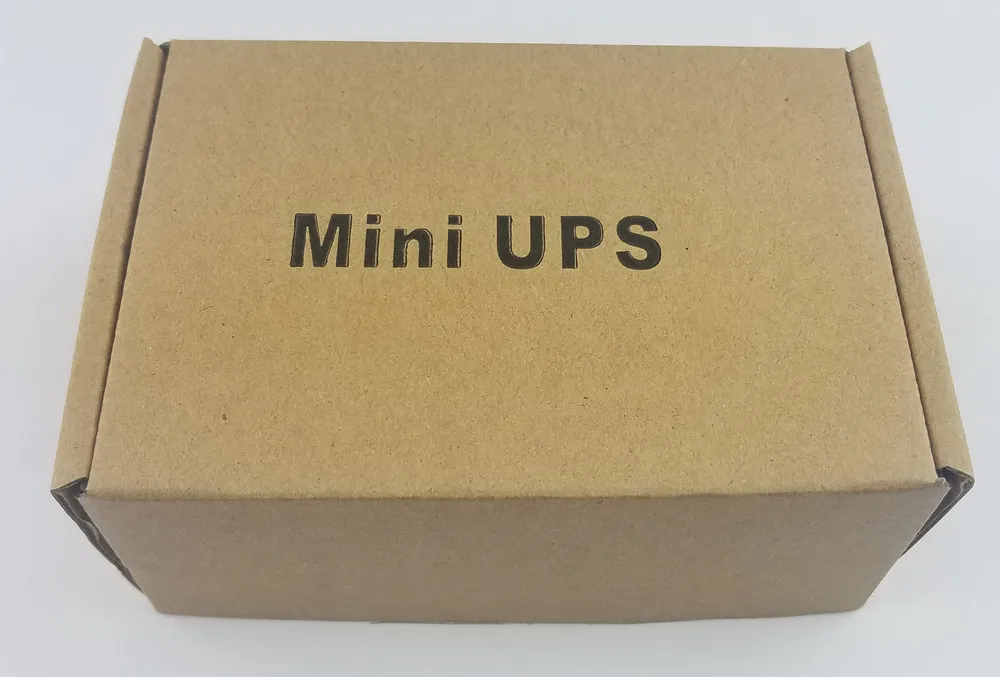

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 100 101 - 500 >500 Est. Time(days) 3 5 15 To be negotiated
High efficiency high capacity mini ups 5V 2A 15600mAh small size large power ups
| DC 5V Mini UPS Basic Information | |
| Model | UPS502B |
| Capacity | 3.7V/15600mAh - 57.72wh |
| Battery Type | 18650 lithium ion battery LG cells |
| Input Voltage | 5V±10% |
| Input current | ≤2000mA |
| Output Voltage | 5V±10% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Protection | Over charge,over discharge,over current,short circuit |
| Working temperature | -20°C~85°C |
| Weight | ≤345g |
| Size | 111x60x43mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
The mini ups also called backup battery.When has city power,won"t release ups power,ups is being charge and storage energy.Once city power cut off,ups will work for device automatically.Makes you no trouble when no city power.See below .
The main advantage of uninterruptible power supply lies in its uninterrupted power supply. When the AC input of the city is normal, the UPS changes the alternating current into direct current, and then the direct current is turned into a stable non impurity alternating current.
Once the AC input, such as voltage or power outage or abnormal frequency, then UPS will enable alternate energy storage battery, a rectifier circuit UPS will shutdown, accordingly, the battery DC reverse into stable pure AC, continue to use after the level load.
Remark:
1.We have variety models suitable for different device.
2.We"re happy to assist you to get the most suitable model,welcome your inquiry.Click here
3.DC size can be customized
| Packing Method | |
| 1. Well protection neutral box packing | |
| 2. 30PCS/CTN | |
| 3. CTN Size:42*23*24CM | |
| 4. G.W 11.98kg/CTN | |
| Packing Include | |
| UPS Battery | 1PC |
| DC Cable | 1PC |
| User Manual | 1PCS |
| Delivery Time | |
| Sample | 2-3 working days |
| Bulk Order | 15-20 working days |
| Shipping Method | |
| DHL,UPS,FedEX,EMS,HongKong Post,Swiss Post etc.... | |
Q:What is mini UPS?
A:it is a small size power supply.
Q:How does it work?
A:when there is no electricity or black out,the mini UPS continue running your device without transformation time.
Q:How to charge the mini UPS?
A:connect to the adaptor and switch on the buttom.
Q:How long is the backup time?
A: the mini UPS can supporting your device 1-10 hours backup power according to your device.
Q:How to choose a suitable mini UPS to your device?
A:we have output voltage 5V 9V 12V three types of mini UPS,select the working voltage of your device and contact us for more information.
Q:How to maintenance or keep the mini UPS?
A:put it in a cool dry place,and charge it every 3~5 months
