- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1201B6-44401
- Phase:
- SINGLE PHASE
- Protection:
- Overcurrent
- Weight:
- ≤345g, ≤345g
- Output Voltage:
- 12V 1000mA
- Type:
- ONLINE, 12V uninterruptable power source
- Application:
- Security / Monitoring / Alarm
- Battery capacity:
- 7.4V/6000mAh 44.4wh
- Input:
- 12V 1000mA
- Output:
- 12V 1000mA
- Working temperature:
- -20°C~65°C
- Size:
- 111*60*43mm
- UPS IN jack:
- 5.5*2.1mm
- UPS OUTjack:
- 5.5*2.5mm
- Product name:
- 12V dc power ups uninterruptible power source 12v ups backup power
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 14X7X6 cm
- Single gross weight:
- 0.6 kg
- Package Type:
- 30pcs/CTN 12.20kg/CTN 42*23*24CM

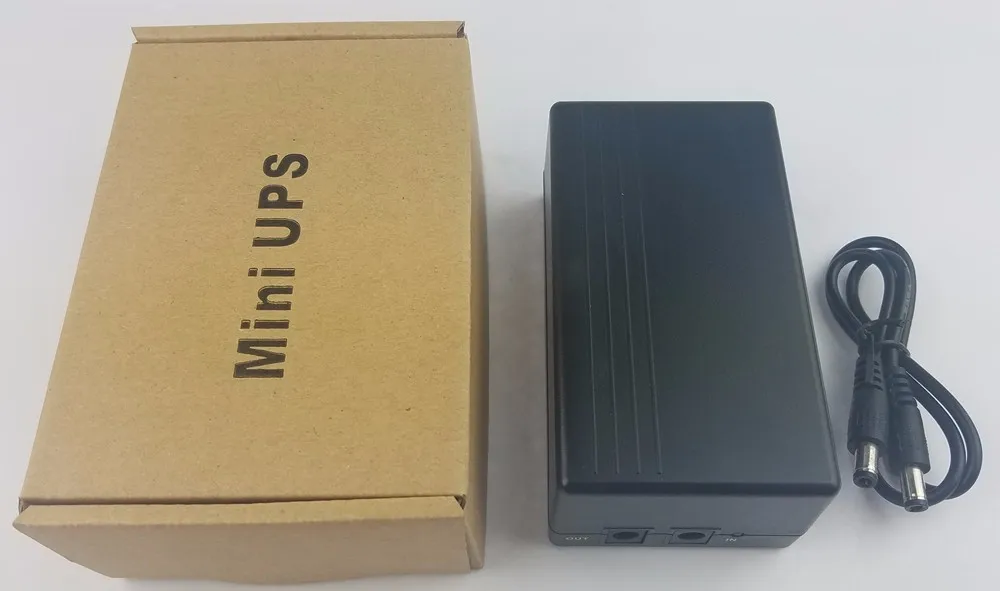

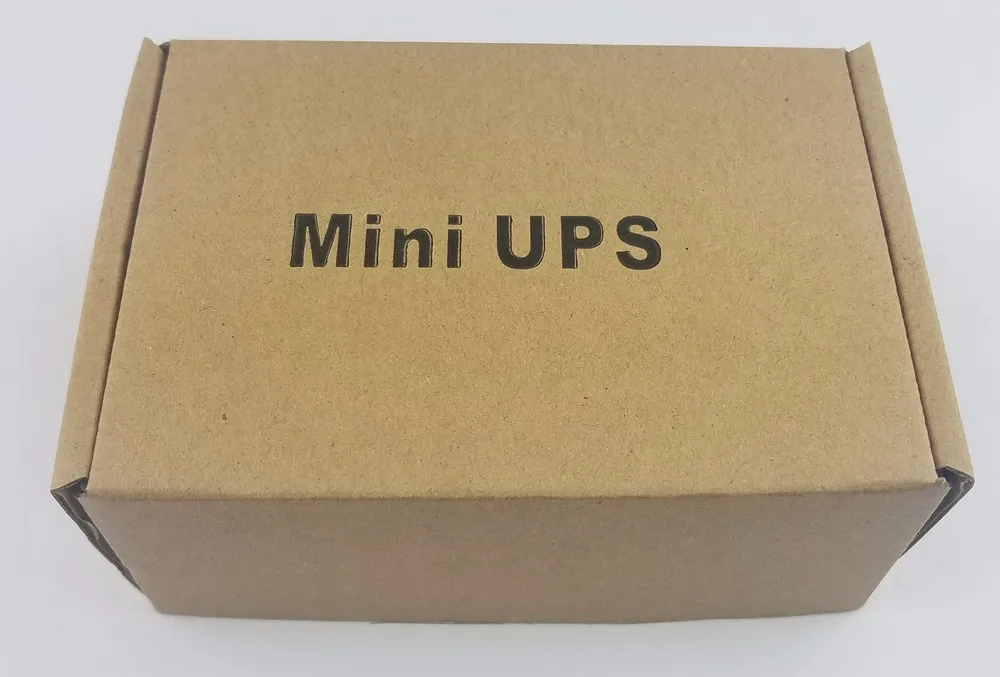

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 2
12V 1A DC ups power source 12 volt ups uninterruptible backup power supply with motherboard control
l Portable
l Big capacity
l Easy installation
l DC output 5V/9V/12V selectable
l Built-in lithium ion battery cell with PCB board protection
l Widely used for CCTV camera,mobile phone,LED lamp,ADSL modem,IP camera,router etc.
Model No. | UPS1201B6-44401 |
Type | 12v dc power ups |
Input | 12V 1000mA |
Output | 12V 1000mA |
Working temperature | -20℃~65℃ |
Weight | 345g |
Size | 111*60*43mm |
Capacity | 7.4V/6000mAh-44.4wh |
Usage | Supporting online working device or providing standby backup power |
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
