Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- WGP103-5121201
- Phase:
- SINGLE PHASE
- Protection:
- Unbalanced Loads
- Weight:
- ≤248g
- Output Voltage:
- 5V 1A , 12V 1A
- Type:
- ONLINE, Multi-output mini battery ups
- Application:
- Security / Monitoring / Alarm
- Input:
- 12V 2A
- Output:
- 5V 1A , 12V 1A
- Working temperature:
- -20°C~65°C
- Size:
- 116*73*24mm
- ups IN jack:
- 5.5*2.1mm
- output:
- USB and DC 5.5*2.5mm
- Battery capacity:
- 4400mAh/32.56wh
- Color:
- Black and White
- Material:
- ABS
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 1.0 kg
- Package Type:
- 36pcs/CTN 13.30KG/CTN 42*23*24CM

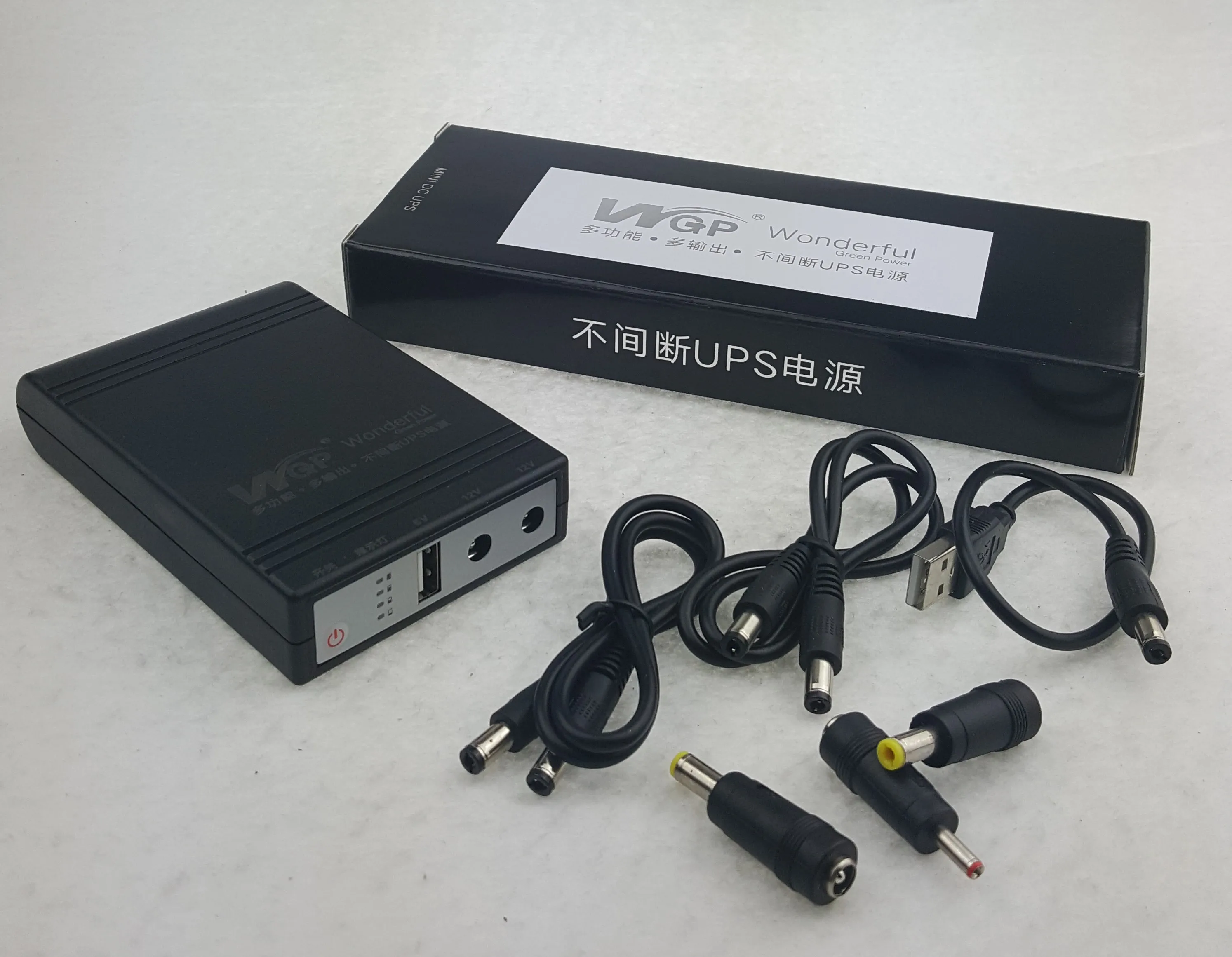

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 500 >500 Est. Time(days) 3 15 To be negotiated
Portable small size home 5v 12v dc online mini battery ups
Mini UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium ion cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS.
Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
We Richroc always focus on R&D lithium ion battery products.And now we bring a brand new UPS for you.
It"s an online ups,but with different applicabilities;It"s an online ups,but with different functions.
It"s a kind of emergency power supply which can backup your device when no electricity.
The slim figure,3 in 1 function,convenient operation,easy understand marking,make you operate it smoothly.
| Model | WGP103-5121201 |
| Type | 3 different output voltage mini ups |
| Input | 12V 2A |
| Output | 5V 1A , 12V 1A |
| Working temperature | -20°C~65°C |
| Weight | ≤248g |
| Size | 116*73*24mm |
| UPS IN jack | 5.5*2.1mm, OUT:5V USB |
| DC output | 5.5*2.5mm |
| Battery Type | Chinese Brand 18650 lithium cells |
| Battery capacity | 4*2200mAh, 7.4V/4400mAh 32.56wh |
Click here to get more information from us
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
