- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS502B-08
- Phase:
- SINGLE PHASE
- Protection:
- Over charge,over discharge,over current,short circuit
- Weight:
- 345g
- Output Voltage:
- 5V
- Type:
- On-line
- Application:
- Security / Monitoring / Alarm, ip camera,router,modem,dvr etc.
- Product name:
- Superior Quality Mini high capacity 12000mAh 5V 2A DC UPS
- Input:
- 5V 2A
- Output:
- 5V 2A
- Capacity:
- 44.4wh/12000mAh
- Material:
- ABS
- Backup time:
- 3~10 hours
- Certification:
- CE,RoHS,FCC,PSE
- Battery Type:
- 18650 Lithium ion cells
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17X12X10 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 1. 30PCS/CTN 2. CTN Size:42*23*24CM 3. 11.98kg/CTN

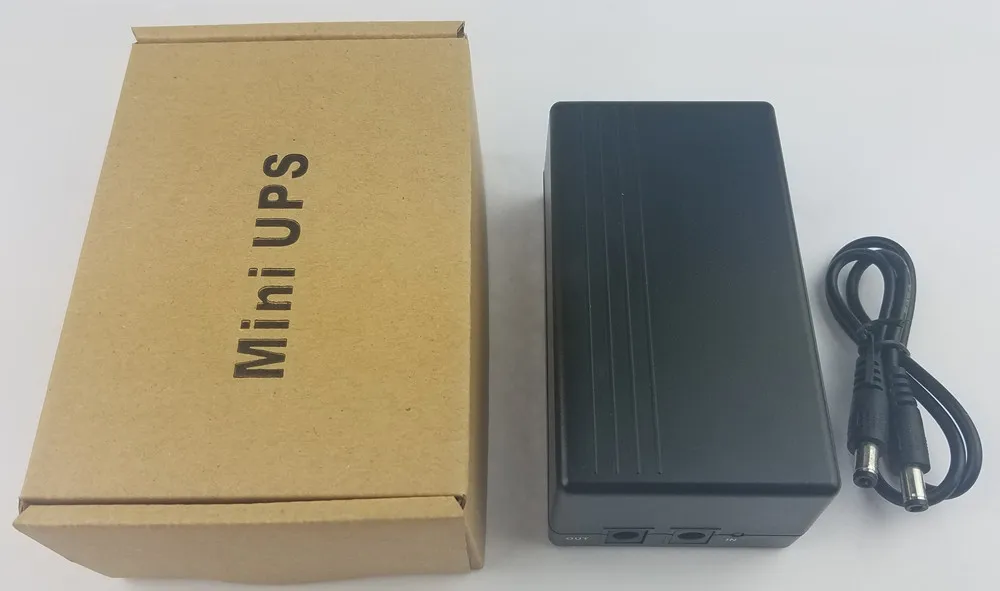

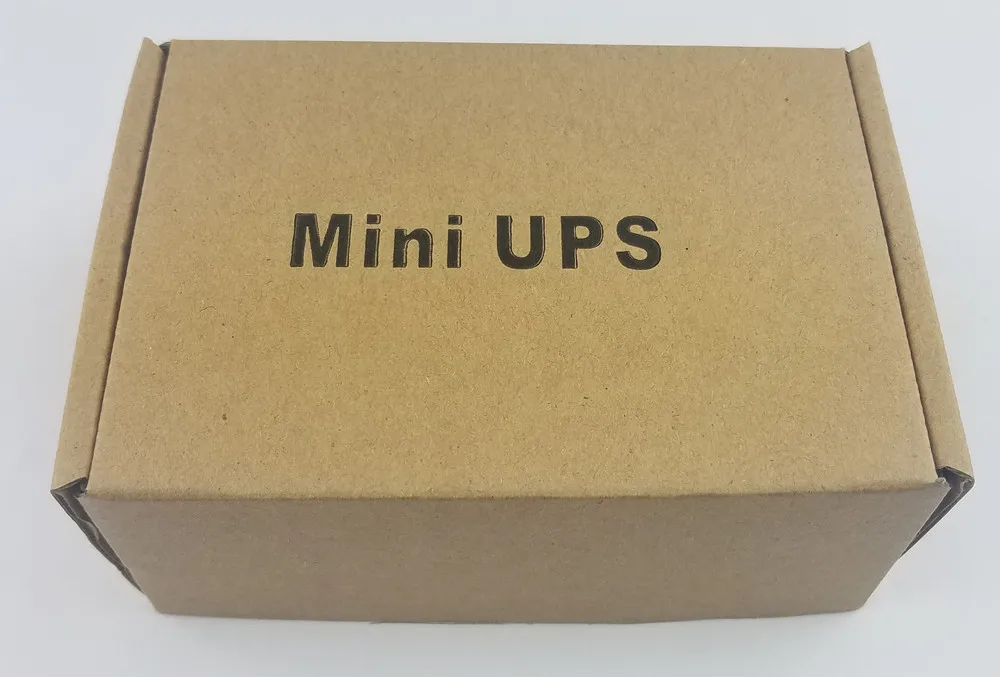

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 100 101 - 500 >500 Est. Time(days) 3 5 15 To be negotiated

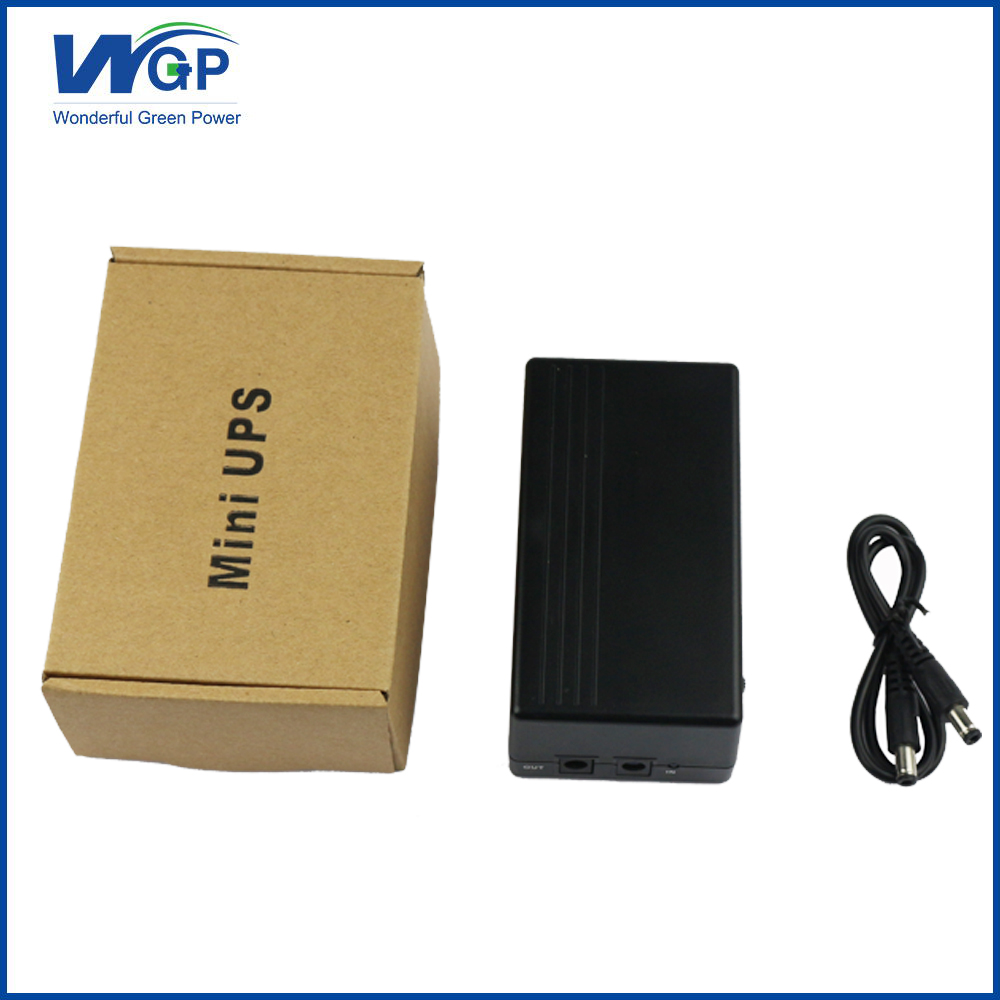

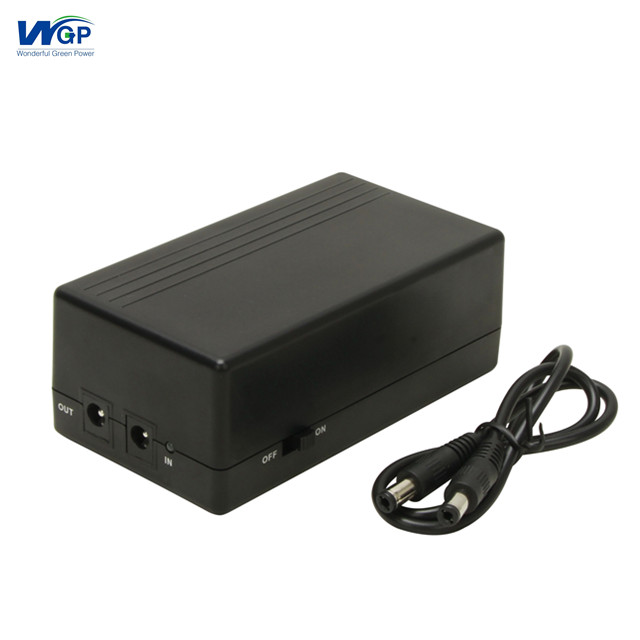

Superior Quality Mini high capacity 12000mAh 5V 2A DC UPS Lithium Uninterruptible Power Supply
Mini UPS uninterruptible power supply is a standby energy storage power supply. Used safe and environmental lithium cells, credible and stable PCB, trickle/ constant-current/ constant-voltage lithium battery charging BMS, Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
The mini UPS uninterruptible power supply is an online or standby power system, can power your device with 0 transfertime when city power is off.
| DC 12V Mini UPS Basic Information | |
| Model | UPS502B |
| Capacity | 44.4wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 5V±10% |
| Input current | ≤2000mA |
| Output Voltage | 5V±10% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Protection | Over charge,over discharge,over current,short circuit |
| With load current(battery) | ≥2000mA |
| Working temperature | -20°C~85°C |
| Weight | ≤256g |
| Size | 111x60x43mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
we also have 5v 9v 12v model with the same outlook.
| Model | Input/Output | Capacity |
| UPS502B | 5V / 2A | 12000mAh - 44.4wh 13200mAh - 48.84wh 15600mAh - 57.72wh |
| UPS901B | 9V / 1A | 6000mAh - 44.4wh 6600mAh - 48.84wh 7800mAh - 57.72wh |
| UPS1201B | 12V / 1A | 6000mAh - 44.4wh 6600mAh - 48.84wh 7800mAh - 57.72wh |
| UPS1202B | 12V /2A | 4000mAh - 44.4wh 4400mAh - 48.84wh 5200mAh - 57.72wh |
Q:What is mini UPS?
A:it is a small size power supply.
Q:How does it work?
A:when there is no electricity or black out,the mini UPS continue running your device without transformation time.
Q:How to charge the mini UPS?
A:connect to the adaptor and switch on the buttom.
Q:How long is the backup time?
A: the mini UPS can supporting your device 1-10 hours backup power according to your device.
Q:How to choose a suitable mini UPS to your device?
A:we have output voltage 5V 9V 12V three types of mini UPS,select the working voltage of your device and contact us for more information.
Q:How to maintenance or keep the mini UPS?
A:put it in a cool dry place,and charge it every 3~5 months
