Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1202B-577209
- Phase:
- Single Phase
- Protection:
- Over charge,over discharge,over current,short circuit
- Weight:
- 345g
- Output Voltage:
- 12V
- Type:
- On-line
- Application:
- Security / Monitoring / Alarm, ip camera,router,modem,dvr etc.
- Capacity:
- 7.4V/7800mAh-57.72wh
- Input:
- 12V2A
- Output:
- 12V2A
- Backup Time:
- 3~10 hours
- Material:
- ABS
- Battery Type:
- 18650 li-ionsamsung/LG cells
- Size:
- 111*60*43mm
- Product name:
- 18650 lithium battery ups
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 0.7 kg
- Package Type:
- 30pcs/CTN 12.20KG/CTN 42*23*24

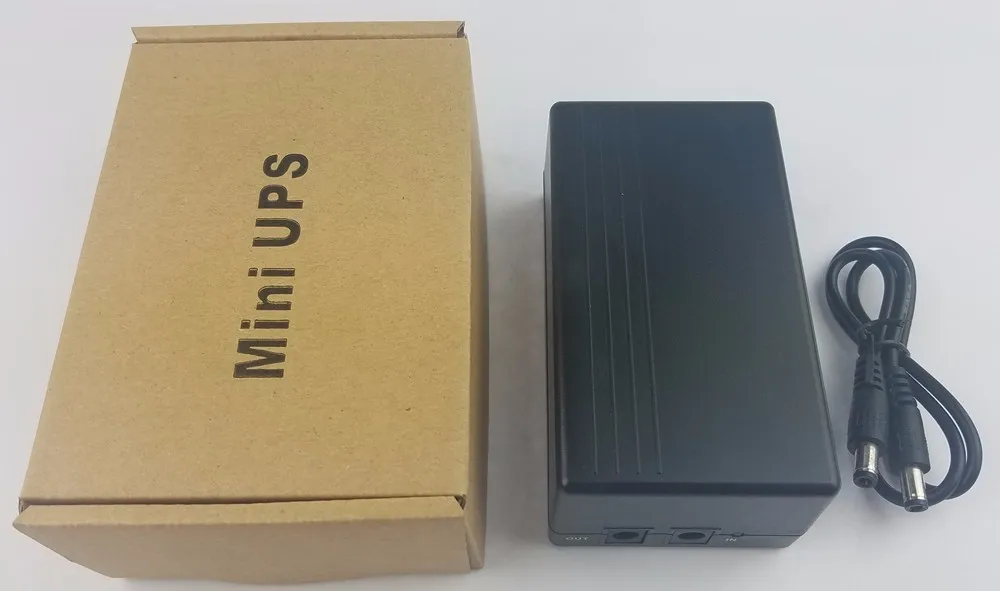

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Set) 1 - 2 3 - 500 501 - 1000 >1000 Est. Time(days) 3 10 20 To be negotiated
Richroc 18650 lithium battery ups uninterruptible power supply 12v 2a mini ups
DC 12V Mini UPS Tecnical Features :
High quality IC,professional and mature circuit design,Grade A cells from First Energy Group or imported LG/Samsung brand,Integral Substrate/Package(ISP),Mature supply chain system,Rapid response
| DC 12V Mini UPS Basic Information | |
| Model | UPS1202B |
| Capacity | 57.72wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 12V±10% |
| Input current | ≤2000mA |
| Output Voltage | 12V±10% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Protection | Over charge,over discharge,over current,short circuit |
| Over-discharged protection(battery) | 9.0V( Over-discharged release 9.3V) |
| Over-charged protection(battery) | 12.75V( Over-charged release 12.6V) |
| With load current(battery) | ≥3000mA |
| Working temperature | -20°C~85°C |
| Weight | ≤345g |
| Size | 111x60x43mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
| Packing Method | |
| 1. Well protection neutral box packing | |
| 2. 25PCS/CTN | |
| 3. CTN Size:42*23*24CM | |
| 4. G.W 11kg | |
| Packing Include | |
| UPS Battery | 1PC |
| DC Cable | 1PC |
| User Manual | 1PCS |
| Delivery Time | |
| Sample | 2-3 working days |
| Bulk Order | 15-20 working days |
| Shipping Method | |
| DHL,UPS,FedEX,EMS,HongKong Post,Swiss Post etc.... | |
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other models?
A:Yes,we have variety models with defferent capacities,please contact with me for more details.
