- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS1201A-19242
- Phase:
- DC12V
- Protection:
- overcharged,overdischarged,overcurrent,short circuit protection
- Weight:
- 153g
- Output Voltage:
- 12V
- Type:
- On-line
- Application:
- networking,security/monitoring/alarm systems, telecommunication
- Product name:
- 12V 1A uninterruptible power supply for CCTV cam
- Battery Type:
- 18650 Samsung or LG cells
- Capacity:
- 7.4V-19.24wh/2600mAh
- Input:
- 12V 1000mA
- Output:
- 12V 1000mA
- Certification:
- CE FCC RoHS PSE
- Backup time:
- 2~8hours
- Size:
- 111*60*26mm
- UPS IN JACK:
- 5.5*2.1mm
- UPS OUT JACK:
- 5.5*2.5mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 44pcs/CTN 9.00KG/CTN 42*23*24CM

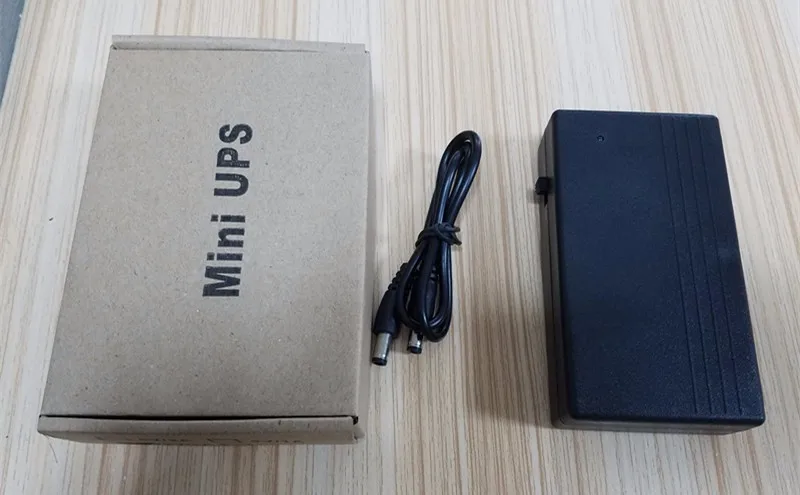

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 5
Online / standby mode cameras ups Guangdong 12V 1A uninterruptible power supply for cameras
Mini UPS uninterruptible power supply is a standby energy storage power supply. Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS,
Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
| No. | Item | Technical Requirements | Remark |
| 1 | Input voltage | 12 ± 5% | |
| 2 | Input current | 350mA + loading current | |
| 3 | Charging current | 350mA ± 10% | |
| 4 | Charging transfer efficiency | >=75% | |
| 5 | No-load voltage range | 12 ± 5% | |
| 6 | Output current range | <=1000mA | |
| 7 | Output voltage range | 12 ± 5% | |
| 8 | Discharging transfer efficiency | >=85% | |
| 9 | Over-discharged protection (battery) | 6.0V | Over-discharged release 6.3v |
| 10 | Over-charged protection (battery) | 8.5V | Over-charged release 8.25v |
| 11 | With load current (battery) | >=2000mA | |
· Mini 12 volt battery is online and standby UPS
· Over-charged, over-discharged
· Over-current and short-circuit protection
· Private mode in ups
· We have our own PCBA Dept
· 7 years experienced R&D team
· High Quality:CE,FCC,RoHs,PSE
Smart 12V volt battery widely use for fingerprint attendance machine, Fire safety system, security monitoring system, wireless camera, CCTV camera ,personal treatment system,Door security system, personal data assistant, emergency lighting, Alarm system, personal communication systems, radio, digital cameras, camcorders, video camera, Bluetooth devices, CD players, MD players, portable DVD, MP3 players, smart cards.
Operation Instruction:
1. Connect a suitable adapter to UPS
2. First time to use,please charge the UPS 10 hours
3. Connect adapter to ups, then use dc cable connect ups to equipment
4. Switch on UPS and the equipment(see below diagram)
5. The Green LED indicates that the UPS is fully charged
6. The red LED indicates that adapter charge ups and also equipment when electricity is available
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with the power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for a long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
