Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS502A-14815
- Phase:
- Single Phase
- Protection:
- over-charged/discharged, over-current, short-circuit protection
- Weight:
- 153g
- Output Voltage:
- 5V
- Type:
- ONLINE, IP cameras use mini ups 5v
- Application:
- security,networking,telecommunication,minitoring,alarm
- Product name:

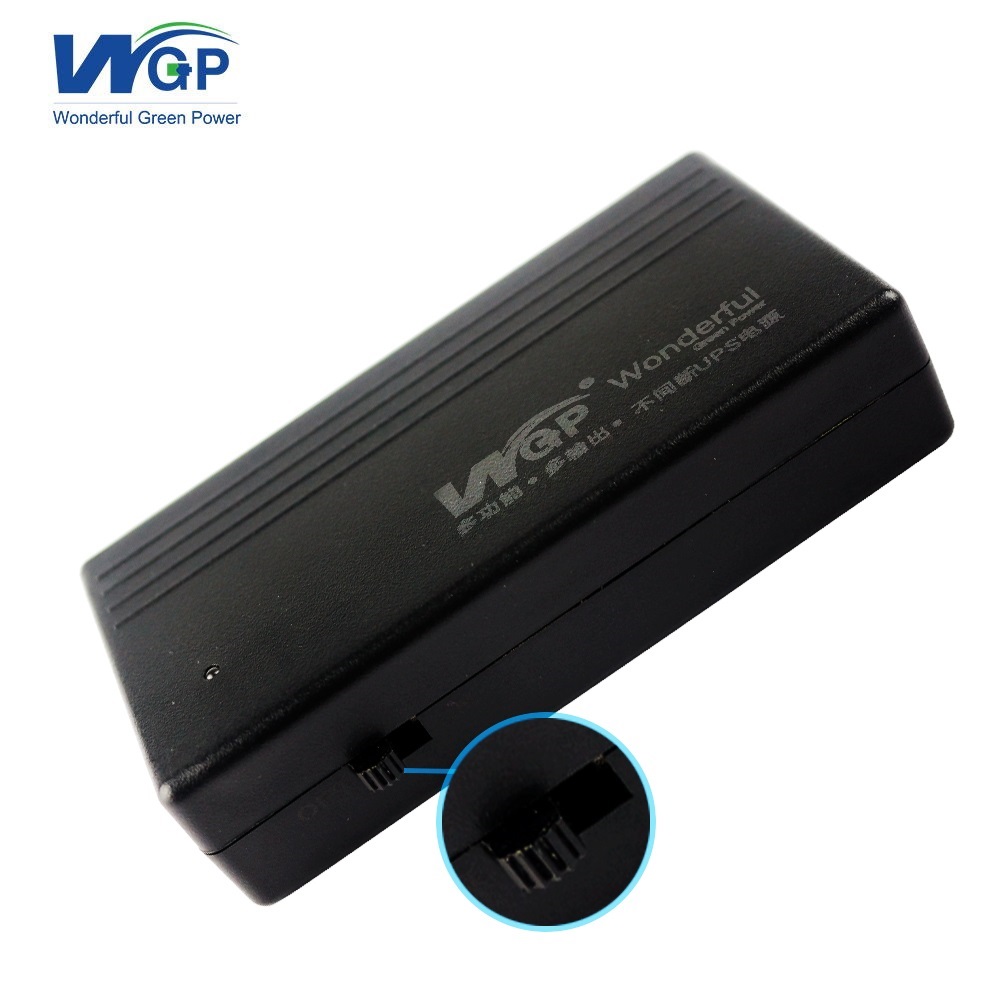

- Online small size dc mini ups 5v 2a ups power supply BATTERY UPS
- Capacity:
- 3.7V/4000mAh - 14.8wh
- Size:
- 111*60*26mm

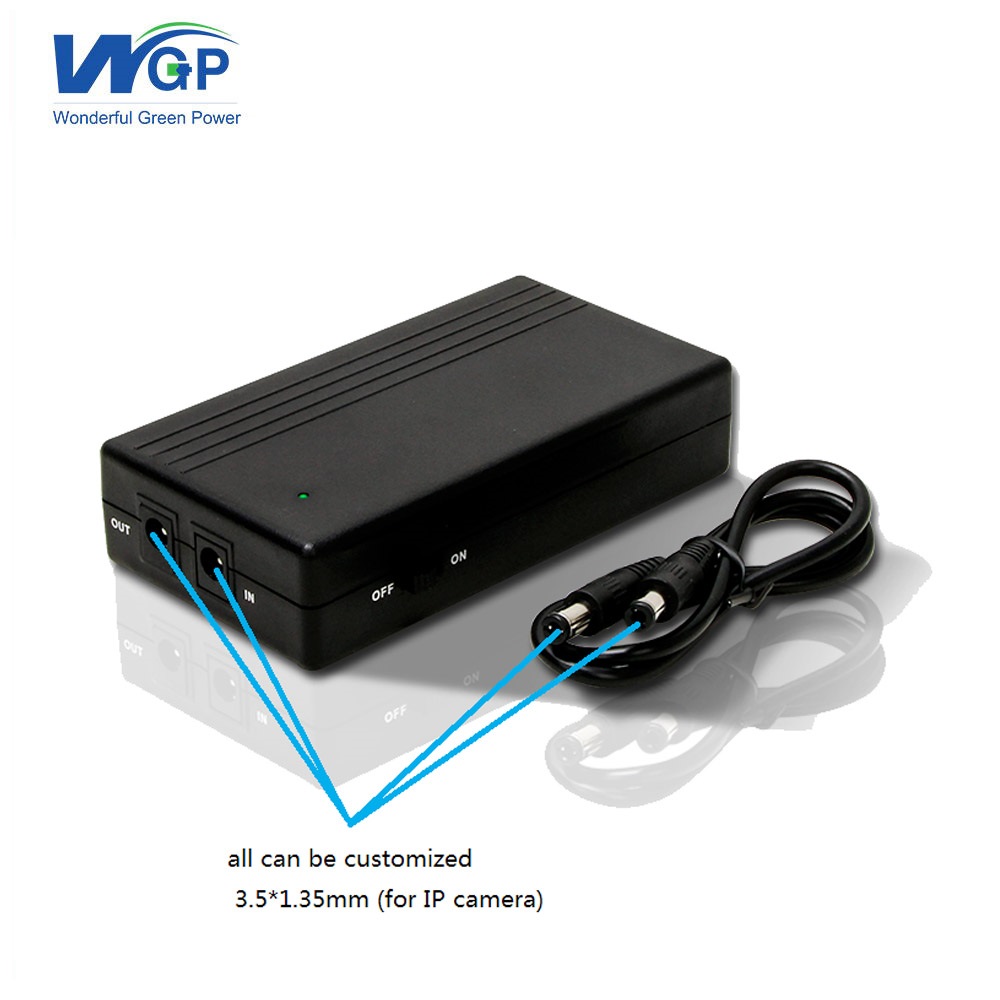

- Input Jack:
- 3.5*1.35mm
- Output Jack:
- 5.5*2.5mm
- Input:
- 5V 2000mA
- Output:
- 5.2V±5% 2000mA
- Backup time:
- 4~5 hours
- Battery Type:
- 18650 Lithium Ion cells
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 44pcs/CTN 8.90KG/CTN 42*23*24CM

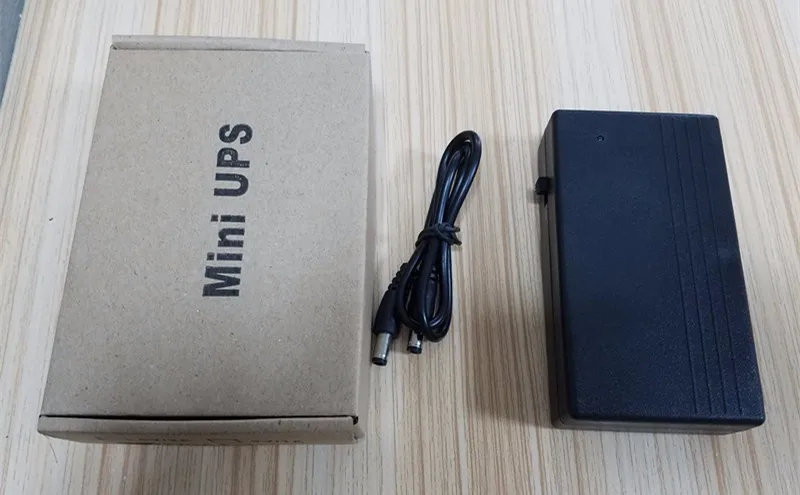

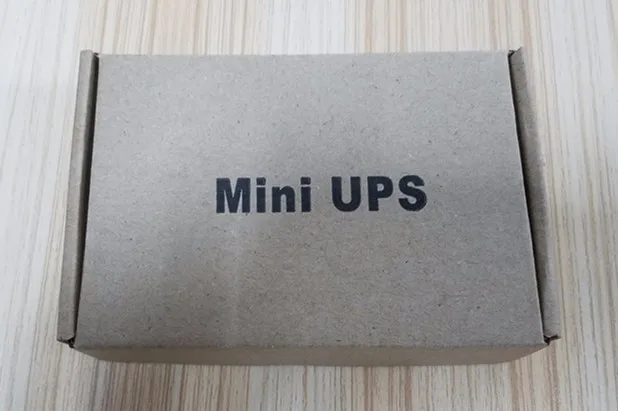

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 5
Online small size dc mini ups 5v 2a ups power supply BATTERY UPS for ip camera
DC 5V Mini UPS Tecnical Features :
Mini UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS.
Created by high performance and efficiency DC-DC, boosting and switching circuit.
With perfect over-charged, over-discharged, over-current and short-circuit protection.
| DC 5V Mini UPS Basic Information | |
| Model | UPS502A-14815 |
| Capacity | 3.7V/4000mAh - 14.8wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 5V ±5% |
| Input current | 350mA+loading current |
| Output Voltage | 5V±10% |
| Output current | ≤2000mA |
| Discharging transfer efficiency | ≥85% |
| Over-discharged protection(battery) | 2.5V( Over-discharged release 3V) |
| Over-charged protection(battery) | 4.35V( Over-charged release 8.25V) |
| With load current(battery) | ≥2000mA |
| Working temperature | -20°C~85°C |
| Weight | ≤198g |
| Size | 111x60x26mm |
| Warranty | 1 year |
| Certification | CE,ROHS,FCC,PSE |
Remark:
1.We have variety models suitable for different device.
2.We"re happy to assist you to get the most suitable model,welcome your inquiry.
3.DC size can be customized.
Packing List
mini UPS device*1
DC cable*1
EN user manual*1
Neutral box*1
Packing Method
| UPS size | Qty/ctn | G.W | Carton size |
| 111*60*26mm/2cells | 44pcs/ctn | 9kg/ctn | 42*23*24cm |
| 111*60*26mm/3cells | 44pcs/ctn | 10kg/ctn | 42*23*24cm |
| 111*60*43mm/4cells | 30pcs/ctn | 9.85kg/ctn | 42*23*24cm |
| 111*60*43mm/6cells | 23pcs/ctn | 9.5kg/ctn | 42*23*24cm |
Delivery time
Sample:2-3days
Bulk order:20-25days
Special service
Sample order can offer free laser logo service
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Q:Do you have any other models?
A:Yes,we have variety models with defferent capacities,please contact with me for more details.
