Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- V48025-07
- Phase:
- Single Phase
- Protection:
- Overcurrent
- Weight:
- ≤250g, ≤250g
- Output Voltage:
- 48VDC
- Type:
- On-line, WGP ups ac 220v DC 48v uninterruptible power supply dc 48v poe ups
- Application:
- Telecommunications
- Battery capacity:
- 11.1V/2000mAh 22.2wh
- Input:
- AC 100-250V
- Output:
- DC 48V 0.25A
- Size:
- 140*60*35mm
- Out jack:
- DC 5.5*2.5mm
- UPS IN jack:
- mains supply plug
- Working temperature:
- -20°C~65°C
- Color:
- black
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X21X17 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 30pcs/CTN 42*23*24CM 9.80KG/CM
- Picture Example:
![package-img]()
- Lead Time:
- 5

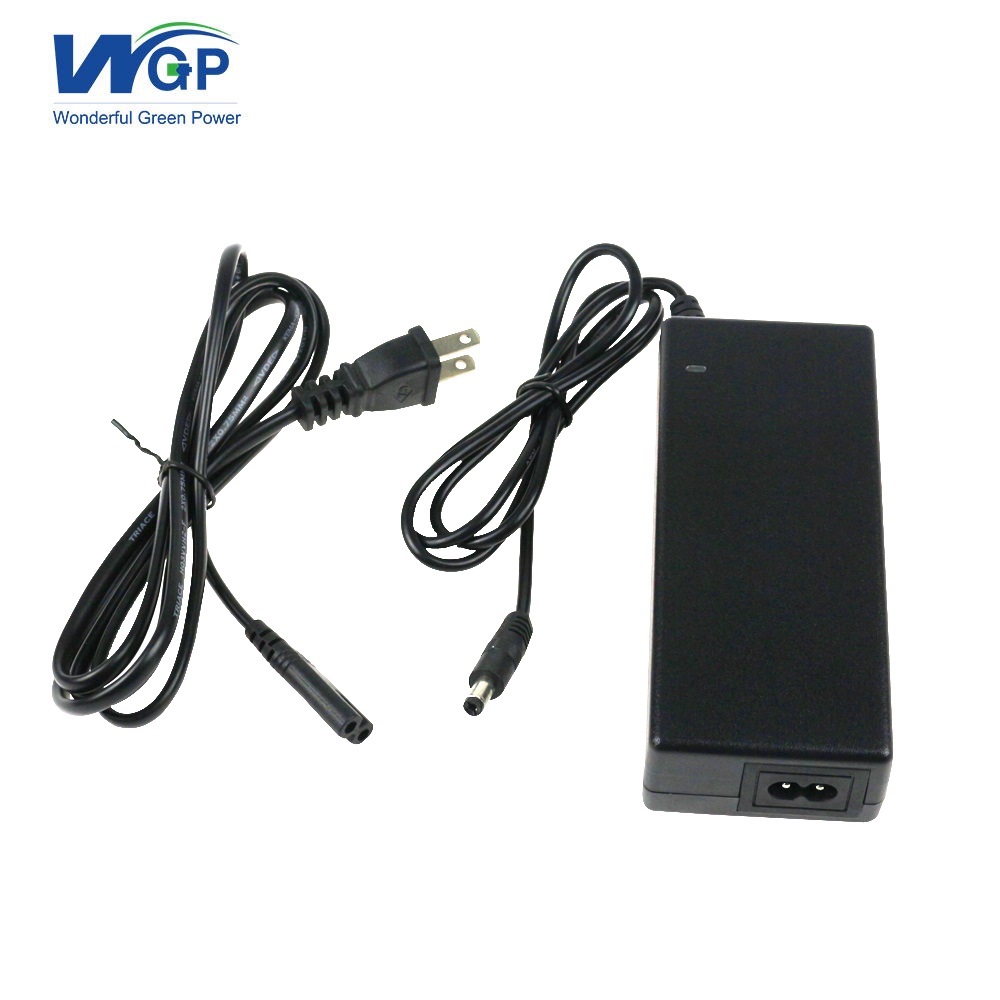

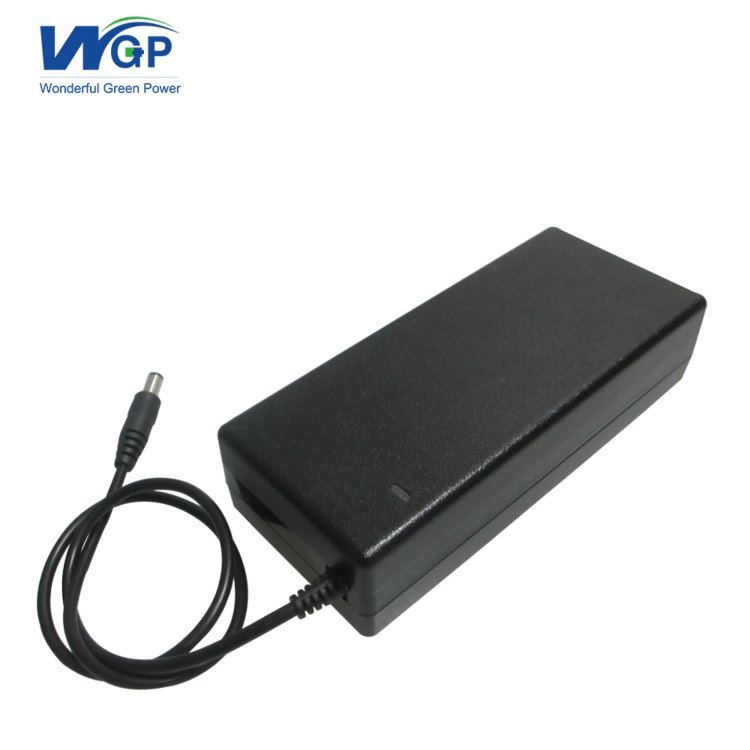

WGP ups ac 220v DC 48v uninterruptible power supply dc 48v poe ups
This AC to DC UPS is a kind of uninterruptible standby energy storage power supply which with features of AC input and DC output,inside with lithium ion batteries,can make your device work as usual when have no electricity.
Model | V48025 |
Capacity | 22.2wh/2000mAh |
AC Input | 100~250V |
DC Output | 48V/0.25A |
Output Jack | 5525 DC male jack |
Output Cable | 500mm length |
Battery | 18650 lithium ion battery |
Charging time | 4-8 hours |
Working temperature | -20℃~60℃ |
Circuit board work temperature | -20℃~85℃ |
Size | 140x60x35mm |
Weight | Approx.250g |
l 100~250V AC input,48VDC output.
l Automatic shut down when output current less than 20mA/10mA.
l Uninterruptible power supply for 48V wireless AP or other suitable device.
l No switch button,UPS switch on automatically once with load.
l Professional circuit and SCM control protection.
l Perfect over-charged,over-discharged,over-current,over-voltage and short-circuit protection.
Shenzhen Richroc Electronic Co.,Ltd.is a professional manufacturer of mini UPS, solar power systems and temperature control battery pack.They are widely used for CCTV camera,mobile phone,notebook computer,PSP,PDA,MP3/4/5,digital camera,LED lamp, DVD/CD player, ADSL modem and router etc.
Richroc was established in 2009.We have 7 engineers working in this filed for 4-8 years.More than 2 new products are designed forevery month.We have our own brand name WGP.OEM and ODM orders are welcomed. Our products have passed FCC,RoHS,CE and PSE Certificates.The production capacity is 3000 sets per day at least.Our sincerely service,competitive price and fast shipping time are the reasons to choose us.
NO. | Item | Details |
1 | Accept sample order | you can place sample order even 1set to test our products and services. |
2 | Low MOQ | We are a manufacturer,not wholesaler or trading company,we can control the production.In order to support your business,we accept low MOQ as 1set. |
3 | OEM/ODM | We have our own Design Dept. and experienced engineering team,we can develop new samples according to the market change and need ,to win the market for our customer. If you are not ready for the design, our engineers will help you about it freely with their expertise. |
4 | Factory price | Factory directly sell ,price is much lower than retailer,wholesaler or agents, save you much cost! |
5 | Quality and Leadtime | 80% of employees with at least 3 years experience in production ,engineering and technology.What"s more,we have our own PCBA Dept,so we can control the qaulity of PCB part and producing process. |
6 | Warranty | 1 year warranty.If the products has function problem, after you offered evidence details to us, we will replace you new products with next order. |
7 | Exclusive | If you be our agent,we won"t sell to other buyer in your country,you are the only occupant of the market! |
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
