Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS901B4-32561
- Phase:
- Single Phase
- Protection:
- Overcurrent
- Weight:
- ≤255g, 255g
- Output Voltage:
- 9V
- Type:
- On-line, 9v 1a big capacity mini ups
- Application:
- Security / Monitoring / Alarm
- Product name:
- lithium battery ups mini uninterrupted power supply 9V router ups
- Input:
- 9V 1000mA
- Output:
- 9V 1000mA
- Working temperature:
- -20°C~65°C
- Size:
- 111*60*43mm
- UPS IN jack:
- 5.5*2.1mm
- UPS OUT jack:
- 5.5*2.5mm
- Battery capacity:
- 7.4V/4400mAh 32.56wh
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 14X7X6 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- 30pcs/CTN 9.88kg/CTN 42*23*24CM

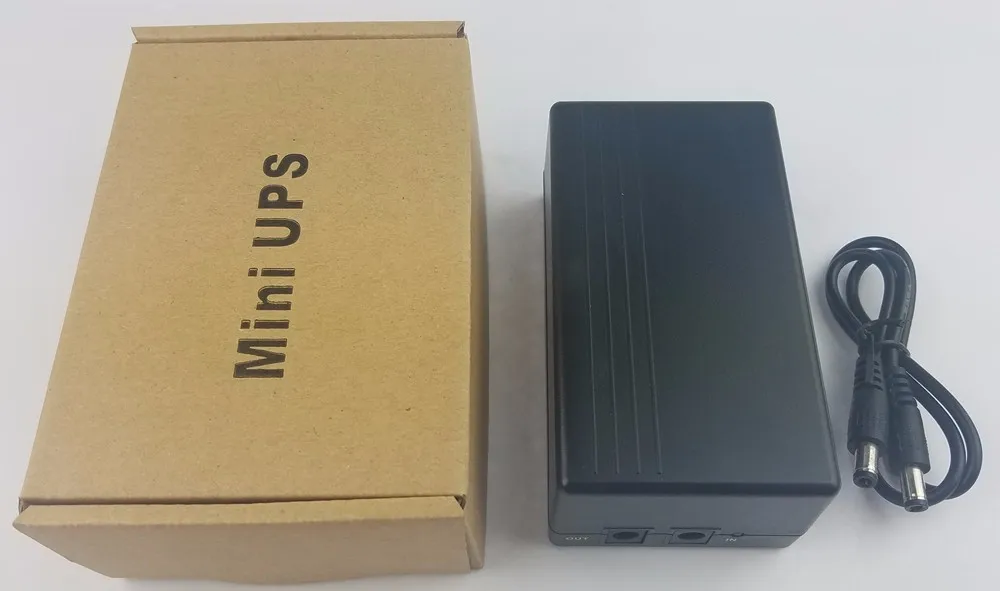

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 2
9V 1A rechargeable 18650 lithium battery ups big capacity mini uninterrupted power supply 9V router ups
Portable
Big capacity
Easy installation
DC output 5V/9V/12V selectable
Built-in lithium ion battery cell with PCB board protection
Widely used for CCTV camera,mobile phone,LED lamp,ADSL modem,IP camera,router etc.
| Model | UPS901B4-32561 |
| Type | 9V ups battery |
| Input | 9V 1000mA |
| Output | 9V 1000mA |
| Working temperature | -20°C~65°C |
| Weight | ≤255g |
| Size | 111x60x43mm |
| UPS jack | IN:5.5*2.1mm,OUT:5.5*2.5mm |
| DC cable | 5.5*2.5mm~5.5*2.1mm |
| Battery capacity | 7.4V/4400mAh 32.56wh |
1. Connect a suitable adapter to UPS
2. First time to use,please charge the UPS 10 hours
3. Connect adapter to ups, then use dc cable connect ups to equipment
4. Switch on UPS and the equipment(see below diagram)
5. The Green LED indicates that the UPS is fully charged
6. The red LED indicates that adapter charge ups and also equipment when electricity is available
1. Accept sample order : Before choose us as business partner,you can place sample order to test our products and services.
2. Low MOQ : We are factory not wholesaler or trading company,we can controll the production.In order to support your business,we accept low MOQ.
3.OEM/ODM :We have our own Design Dept. and experienced engineering team,we can develop new samples according to the market change and need ,to win the market for our customer. If you are not ready for the design, our engineers will help you about it freely with their expertise.
4. Factory price : Factory directly sell ,price is much lower than retailer,wholesaler or agents, save you much cost!
5.Quality and delivery time : 80% of employees with at least 3 years experience in production ,engineering and technology.What"s more,we have our own PCBA Dept,so we can control the qaulity of PCB part and producing process.
6.Warranty : 1 year warranty.If you have problem,just show us the picture or vedio,we will resend free one in your next order.
7.Protection: Your market will get well protected .If you be our agent,we won"t sell to other buyer in your country,you are the only occupant of the market.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
